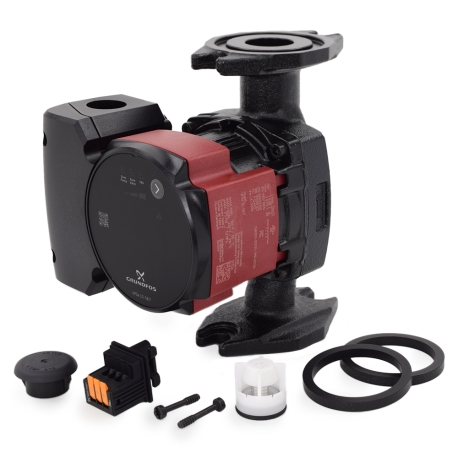

Grundfos UPSe 15-58FR is a high-efficiency cast iron ECM 115V circulator pump with integrated check valve and rotated flange, suitable for almost any hydronic (baseboard/radiator/fan coil), radiant floor heating and cooling application.
This model is an improved version of Grundfos's flagship UPS15-58FR model, boasting a significantly improved efficiency and (9) modes (3x constant speed/curve, 3x constant pressure and 3x proportional pressure) instead of (3) constant speeds.
Cross-References:
- Grundfos: UP15-42, UPS 15-58, ALPHA1 15-55, ALPHA2 15-55
- Taco: 007/007e, 008, 0015/0015e3
- B&G: NRF-9F/LW, NRF-25, NRF-33, ecocirc 19-14, ecocirc 19-16, ecocirc 20-18
- Armstrong: ASTRO 225, ASTRO 230, ASTRO 250, Compass H20-20
- One-button operation with (9) operating modes to choose from: (3) constant pressure curves (the head across each zone is constant), (3) proportional pressure curves (the head pressure is reduced at falling heat demand and conversely), and (3) constant curve
- High-efficiency ECM motor uses up to 85% less electricity
- Built-in removable check valve
- Dry-run protection stops the circulator if water is not detected in the system
- Automatic self-venting feature helps to prevent air locked circulator and eliminate unwanted noise
- Suitable for up to pumping up to 50/50 glycol & water mix solution
- Easy troubleshooting with colored LED warnings and alarm lights
- cULus, FCC Listed
- Casing: Cast Iron
- Circulator Pump Type: high-efficiency w/ ECM motor and (3) modes - constant pressure, proportional pressure and constant speed
- Connections: Rotated Flange (GF 15/26)
- Circulator Height (Flange to Flange): 6-1/2"
- Electrical Specs: 115V, 60 Hz, 38W max, 0.70 Amps max
- Head Range: 0-19 ft
- Flow Range: 0-13.6 GPM
- Operating Temperature Range: 36°F - 230°F
- Max Operating Pressure:Â 175 psi
- Sound Pressure Level: 25 dB (A)
- Hydraulic Institute Energy Rating (ER): 193
- Dimensions (Depth x Width x Height): 5.71" x 5.23" x 6.50"
- Weight (lbs):Â 5.9 lbs
30 months from the date of manufacture / 24 months from date of installation
