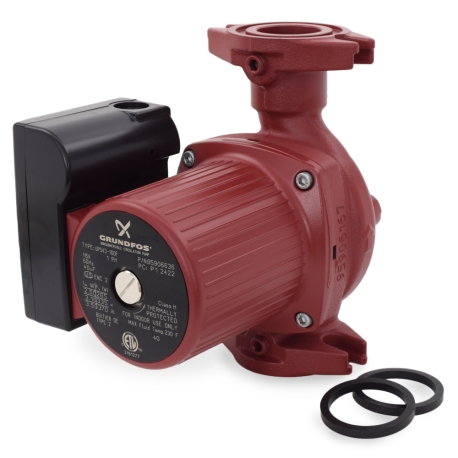

UPS50-60F 3-Speed Cast Iron Circulator Pump, 115V Grundfos
UPS50-60F 3-Speed Cast Iron Circulator Pump, 115V
Brand: Grundfos
Part#: 97523134
Model: UPS50-60F
Usually ships: within 5-6 business days

Description

Grundfos UPS50-60F is a commercial grade, cast iron 3-speed circulator pump w/ GF50 flanged connections for closed-loop heating and cooling applications.

Cross-References:
  • Taco: 1400-65, 2400-65
  • B&G: PL-75

Features:
  • 3-speed switch (Lo/Med/Hi) provides versatility for various applications
  • Whisper-quiet and maintenace-free operation
  • Quick connectivity to terminals for easy installation
  • Power LED indicator
  • Lubricated bearings
  • Suitable for up to pumping up to 50/50 glycol & water mix solution
  • Impeller, bearing plate,and rotor are made of stainless steel
  • cETLus Listed

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 3-Speed
  • Connections: Flanged (GF50)
  • Circulator Height (Flange to Flange): 8-9/16"
  • Electrical Specs: 115V, 60 Hz, 395W max, 3.6 Amps max; 180V Capacitor
  • Head Range: 0-21.33 ft
  • Flow Range: 0-124 GPM
  • Operating Temperature Range: 36°F - 230°F
  • Max Operating Pressure: 145 psi
  • Sound Pressure Level: 40 dB
  • Dimensions (Depth x Width x Height): 8.62" x 6.12" x 8.50"
  • Weight (lbs): 15 lbs

Warranty:
30 months from the date of manufacture
