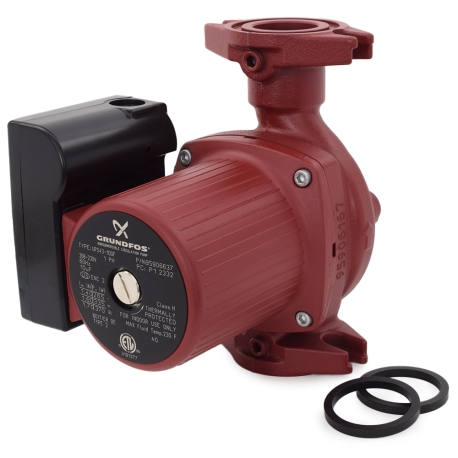

UPS43-100F 3-Speed Cast Iron Circulator Pump, 208-230V
Brand: Grundfos
Part#: 95906637
Model: UPS43-100F
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$425.95 / each
Free Shipping on any qty
Add to Cart

Description

Grundfos UPS43-100F is a 208-230V cast iron 3-speed circulator pump with GF40/43 connections for closed-loop heating and cooling applications.

Cross-References:
  • Taco: 1400-20(F, B), 1400-30(F, B), 1400-40(F, B), 1400-45(F, B) @ Med speed
  • B&G: PL-45(B), PL-50(B), NRF-45 Sp-2 & 3, NBF-45 Sp-2 & 3, NRF-36 Sp-2 &3 @ Med speed
  • Armstrong: E10(B), E13(B) @ Low speed; E11(B), E15(B), E16(B) @ Med speed; E17(B) @ High speed

Features:
  • 3-speed switch (Lo/Med/Hi) provides versatility for various applications
  • Whisper-quiet and maintenace-free operation
  • Quick connectivity to terminals for easy installation
  • Power LED indicator
  • Lubricated bearings
  • Suitable for up to pumping up to 50/50 glycol & water mix solution
  • Impeller, bearing plate,and rotor are made of stainless steel
  • Made in the USA
  • cETLus Listed

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 3-Speed
  • Connections: Flanged (GF40/43)
  • Circulator Height (Flange to Flange): 8-9/16"
  • Electrical Specs: 208-230V, 60 Hz, 370W max, 1.7 Amps max; 400V Capacitor
  • Head Range: 0-30.84 ft
  • Flow Range: 0-65 GPM
  • Operating Temperature Range: 36°F - 230°F
  • Max Operating Pressure: 145 psi
  • Sound Pressure Level: 40 dB
  • Dimensions (Depth x Width x Height): 6.69" x 5.57" x 8.50"
  • Weight (lbs): 17.5 lbs

Warranty:
24 months from the date of manufacture / 18 months from the date of installation
