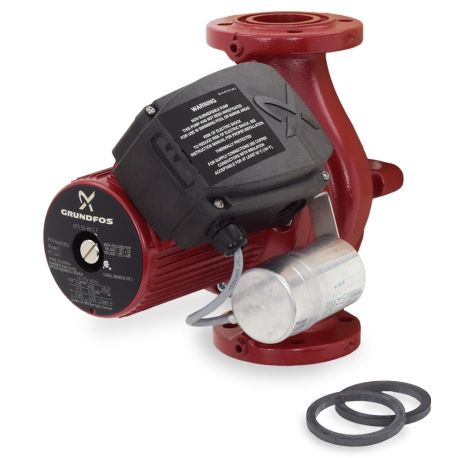

UPS50-80/2 VersaFlo 3-Speed Cast Iron Circulator Pump, 115V Grundfos
UPS50-80/2 VersaFlo 3-Speed Cast Iron Circulator Pump, 115V
Brand: Grundfos
Part#: 96402834
Model: UPS50-80/2
Usually ships: Upon availability

Description

Grundfos UPS50-80/2 (alternative model number is UPS50-80F) is a VersaFlo series, commercial-grade cast iron 3-speed circulator pump with GF50 flanged connections, intended for heating and cooling applications.

Features:
  • 3-speed switch (Lo/Med/Hi) provides versatility for various applications
  • Self-venting feature helps to prevent air locked circulator and eliminate unwanted noise
  • Built-in thermal overload switch
  • Whisper-quiet and maintenace-free operation
  • Quick connectivity to terminals for easy installation
  • Power LED indicator
  • Lubricated bearings
  • Suitable for up to pumping up to 50/50 glycol & water mix solution
  • Impeller, bearing plate,and rotor are made of stainless steel

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 3-Speed
  • Connections: Flanged (GF50)
  • Circulator Height (Flange to Flange): 11-1/2"
  • Electrical Specs: 115V, 60 Hz, 630W max, 5.85 Amps max; 250V Capacitor
  • Head Range: 0-30 ft
  • Flow Range: 0-150 GPM
  • Operating Temperature Range: 14°F - 248°F
  • Max Operating Pressure: 145 psi
  • Sound Pressure Level: 40 dB
  • Dimensions (Depth x Width x Height): 12.86" x 8.31" x 11.50"
  • Weight (lbs): 55.4 lbs

Warranty:
24 months from the date of manufacture / 18 months from the date of installation
