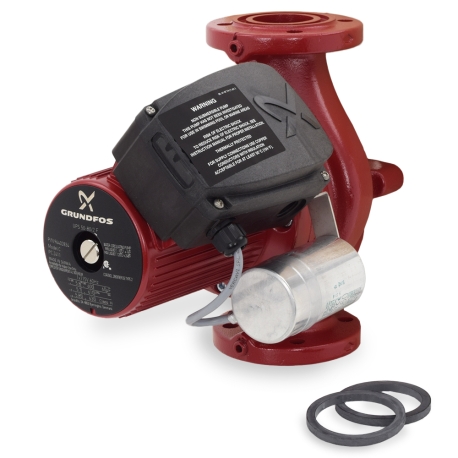

UPS40-80/2 VersaFlo 3-Speed Cast Iron Circulator Pump, 115V Grundfos
UPS40-80/2 VersaFlo 3-Speed Cast Iron Circulator Pump, 115V
Brand: Grundfos
Part#: 96402762
Model: UPS40-80/2
Usually ships: within 5-6 business days

Description

Grundfos UPS40-80/2 (alternative model number is UPS40-80F) is a VersaFlo series, commercial-grade cast iron 3-speed circulator pump with GF40/43 flanged connections, intended for heating and cooling applications.

Features:
  • 3-speed switch (Lo/Med/Hi) provides versatility for various applications
  • Self-venting feature helps to prevent air locked circulator and eliminate unwanted noise
  • Built-in thermal overload switch
  • Whisper-quiet and maintenace-free operation
  • Quick connectivity to terminals for easy installation
  • Power LED indicator
  • Lubricated bearings
  • Suitable for up to pumping up to 50/50 glycol & water mix solution
  • Impeller, bearing plate,and rotor are made of stainless steel

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 3-Speed
  • Connections: Flanged (GF40/43)
  • Circulator Height (Flange to Flange): 13-1/2"
  • Electrical Specs: 115V, 60 Hz, 480W max, 4.45 Amps max
  • Head Range: 0-30 ft
  • Flow Range: 0-105 GPM
  • Operating Temperature Range: 32°F - 248°F
  • Max Operating Pressure: 145 psi
  • Sound Pressure Level: 40 dB
  • Dimensions (Depth x Width x Height): 12.36" x 8.31" x 13.50"
  • Weight (lbs): 39 lbs

Warranty:
24 months from the date of manufacture / 18 months from the date of installation
