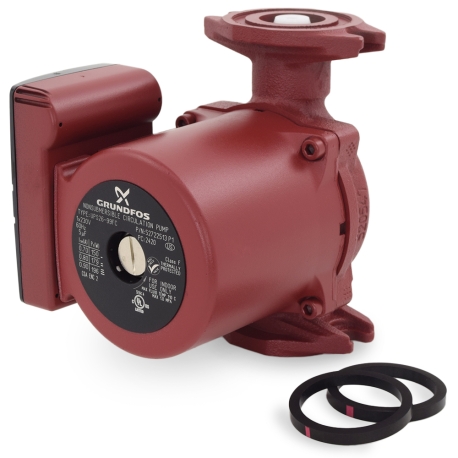

UPS26-99FC 3-Speed Circulator Pump w/ IFC, 230V Grundfos
UPS26-99FC 3-Speed Circulator Pump w/ IFC, 230V
Brand: Grundfos
Part#: 52722513
Model: UPS26-99FC
made in usa
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Grundfos UPS26-99FC is a 230V 3-speed cast iron circulator pump with check valve - for heating and cooling applications.

Cross-References:
  • Taco: 0011, 0014 @ Med Speed; 0013 @ High Speed
  • B&G: LR-15BWR @ Low speed; Series 100, PL-30, PR, NRF-36, Sp-1, NRF-45 Sp-1 @ Med speed; NRF-36 Sp-2, NRF-45 Sp-2 @ High speed
  • Armstrong: Astro 30(B) @ Low speed; Astro 50(B), H41 @ Med speed; E7(B) @ High speed

Features:
  • 3-speed switch (Lo/Med/Hi) provides versatility for various applications
  • Includes integral check valve
  • Whisper-quiet and maintenace-free operation
  • Quick connectivity to terminals for easy installation
  • Power LED indicator
  • Lubricated bearings
  • Suitable for up to pumping up to 50/50 glycol & water mix solution
  • Made in the USA
  • cULus Listed

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 3-Speed
  • Connections: Flanged (GF15/26)
  • Circulator Height (Flange to Flange): 6-1/2"
  • Electrical Specs: 230V, 60 Hz, 196W max, 0.9 Amps max; 400V Capacitor
  • Head Range: 0-28.87 ft
  • Flow Range: 0-33 GPM
  • Operating Temperature Range: 36°F - 230°F
  • Max Operating Pressure: 145 psi
  • Sound Pressure Level: 40 dB
  • Dimensions (Depth x Width x Height): 5.98" x 5.20" x 6.50"
  • Weight (lbs): 10.68 lbs

Warranty:
30 months from the date of manufacture / 24 months from the date of retail purchase
