UPS26-150F 3-Speed Cast Iron Circulator Pump, 208-230V
Brand: Grundfos
Part#: 95906631
Model: UPS26-150F
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$685.95 / each
Free Shipping on any qty
Add to Cart

Description

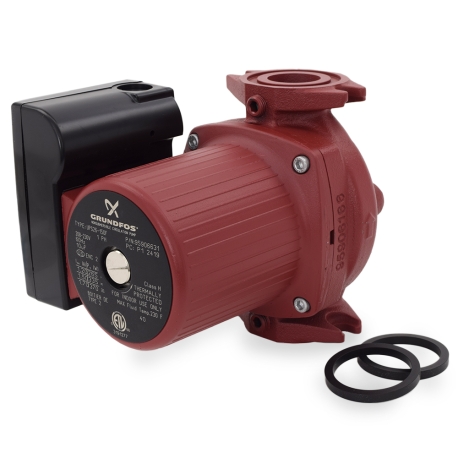

Grundfos UPS26-150F is a 230V 3-speed cast iron circulator pump for heating and cooling applications.

Cross-References:
  • Taco: 0011, 0013, 1400-20 @ Med speed
  • B&G: NRF-36 Sp-2 & 3, NBF-36 Sp-2 & 3 @ Low speed; PL-36(B) @ Med speed; PL-55(B) @ High speed
  • Armstrong: E7(B) @ Low speed; E8(B), E9(B) @ Med speed

Features:
  • 3-speed switch (Lo/Med/Hi) provides versatility for various applications
  • Whisper-quiet and maintenace-free operation
  • Quick connectivity to terminals for easy installation
  • Power LED indicator
  • Lubricated bearings
  • Suitable for up to pumping up to 50/50 glycol & water mix solution
  • Impeller, bearing plate,and rotor are made of stainless steel
  • Made in the USA
  • cETLus Listed

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 3-Speed
  • Connections: Flanged (GF15/26)
  • Circulator Height (Flange to Flange): 6-1/2"
  • Electrical Specs: 115V, 60 Hz, 370W max, 1.7 Amps max; 400V Capacitor
  • Head Range: 0-45.28 ft
  • Flow Range: 0-52 GPM
  • Operating Temperature Range: 36°F - 230°F
  • Max Operating Pressure: 145 psi
  • Sound Pressure Level: 40 dB
  • Dimensions (Depth x Width x Height): 7.13" x 5.67" x 6.50"
  • Weight (lbs): 16.2 lbs

Warranty:
30 months from the date of manufacture / 24 months from the date of retail purchase
