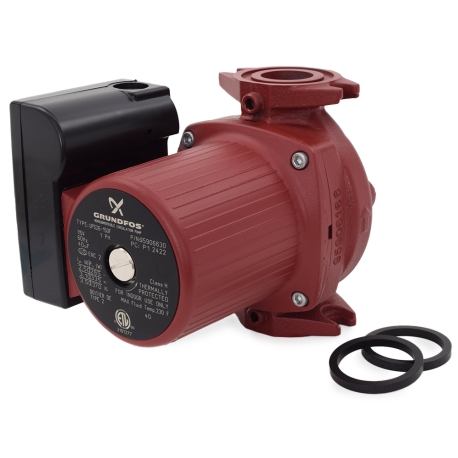

UPS26-150F 3-Speed Cast Iron Circulator Pump, 115V Grundfos

UPS26-150F 3-Speed Cast Iron Circulator Pump, 115V

Brand: Grundfos

Part#: 95906630

Model: UPS26-150F

In Stock

(Check qty)

(1)

Estimate delivery

Usually ships: within 1 business day

Pick Up available (Save ${{ (Math.round(Math.abs(pickupPrice) * 100) / 100).toFixed(2) }})

Pick Up ready by {{ pickupBy }}

Usually ready: within 1 hour

Description

Grundfos UPS26-150F is a 115V 3-speed cast iron circulator pump for heating and cooling applications.

Cross-References:

Taco: 0011, 0013, 1400-20 @ Med speed
B&G: NRF-36 Sp-2 & 3, NBF-36 Sp-2 & 3 @ Low speed; PL-36(B) @ Med speed; PL-55(B) @ High speed
Armstrong: E7(B) @ Low speed; E8(B), E9(B) @ Med speed

Features:

3-speed switch (Lo/Med/Hi) provides versatility for various applications
Whisper-quiet and maintenace-free operation
Quick connectivity to terminals for easy installation
Power LED indicator
Lubricated bearings
Suitable for up to pumping up to 50/50 glycol & water mix solution
Impeller, bearing plate,and rotor are made of stainless steel
Made in the USA
cETLus Listed

Technical Specifications:

Casing: Cast Iron
Circulator Pump Type: 3-Speed
Connections: Flanged (GF15/26)
Circulator Height (Flange to Flange): 6-1/2"
Electrical Specs: 115V, 60 Hz, 370W max, 3.5 Amps max; 180V Capacitor
Head Range: 0-45.28 ft
Flow Range: 0-52 GPM
Operating Temperature Range: 36°F - 230°F
Max Operating Pressure: 145 psi
Sound Pressure Level: 40 dB
Dimensions (Depth x Width x Height): 7.13" x 5.67" x 6.50"
Weight (lbs): 16.2 lbs

Warranty:
30 months from the date of manufacture / 24 months from the date of retail purchase
