UP43-110F Cast Iron Circulator Pump, 115/230V Grundfos
UP43-110F Cast Iron Circulator Pump, 115/230V
Brand: Grundfos
Part#: 96439643
Model: UP43-110F
Usually ships: within 5-6 business days

Description

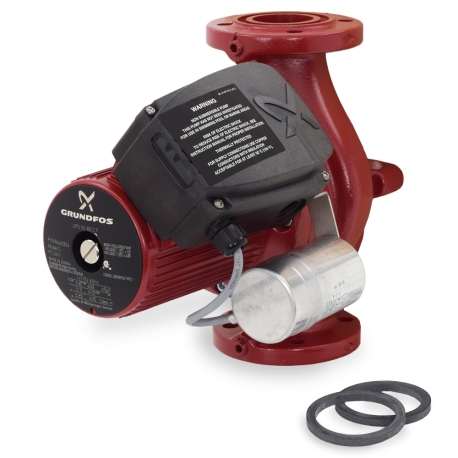

Grundfos UP43-110F is a dual-voltage 115/230V single-speed cast iron circulator pump for heating applications.

Cross-References:
  • Armstrong: ARMflo E21, ARMflo E22, ARMflo E22B, ARMflo E23

Features:
  • Canned rotor pump
  • Self-venting feature helps to prevent air locked circulator and eliminate unwanted noise
  • Built-in thermal overload switch
  • Whisper-quiet and maintenace-free operation
  • Quick connectivity to terminals for easy installation
  • Power LED indicator
  • Lubricated bearings
  • Suitable for up to pumping up to 50/50 glycol & water mix solution
  • Impeller, bearing plate,and rotor are made of stainless steel
  • cULus Listed

Technical Specifications:
  • Casing: Cast Iron
  • Circulator Pump Type: 1-Speed
  • Connections: Flanged (GF40/43)
  • Circulator Height (Flange to Flange): 8-9/16"
  • Electrical Specs: 115/230V, 60 Hz, 590W max, 2.7 Amps max; 240V Capacitor
  • Head Range: 0-36.09 ft
  • Flow Range: 0-98 GPM
  • Operating Temperature Range: 14°F - 230°F
  • Max Operating Pressure: 145 psi
  • Sound Pressure Level: 40 dB
  • Dimensions (Depth x Width x Height): 12.20" x 8.19" x 8.50"
  • Weight (lbs): 39 lbs

Warranty:
24 months from the date of manufacture / 18 months from the date of installation
