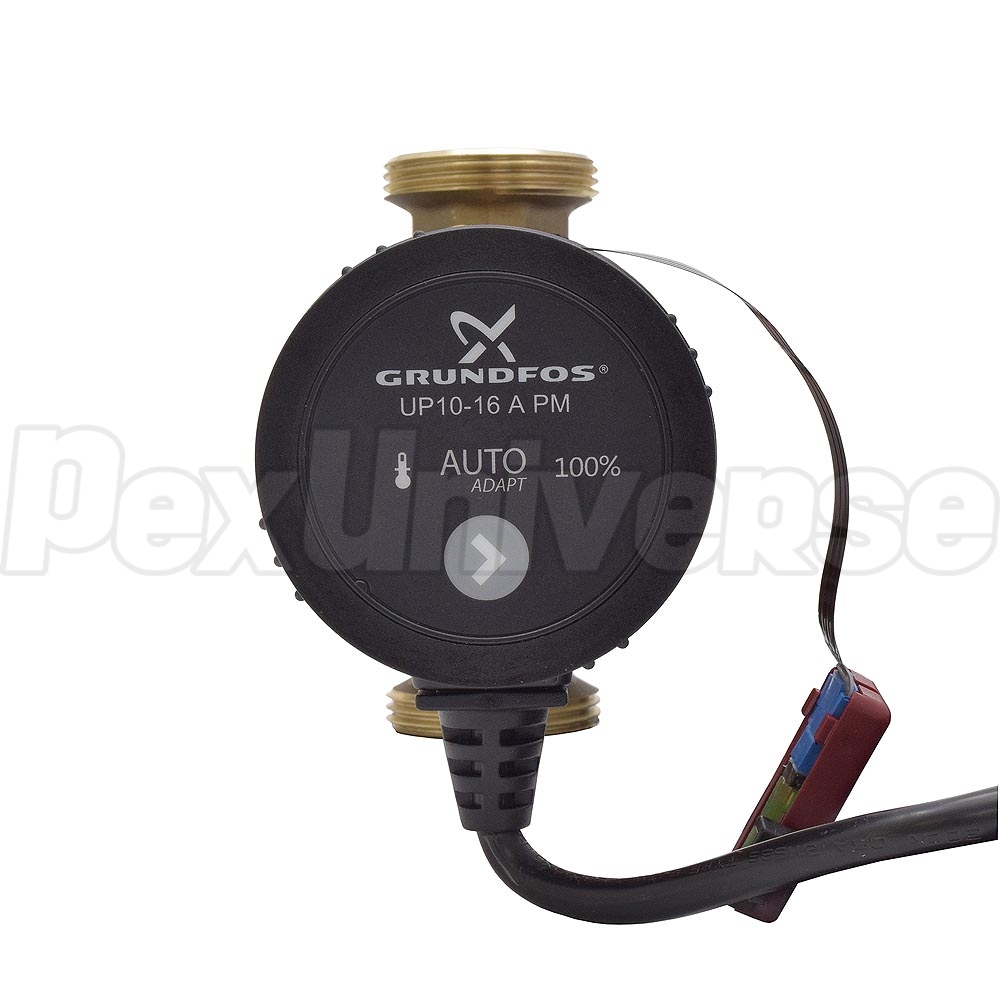

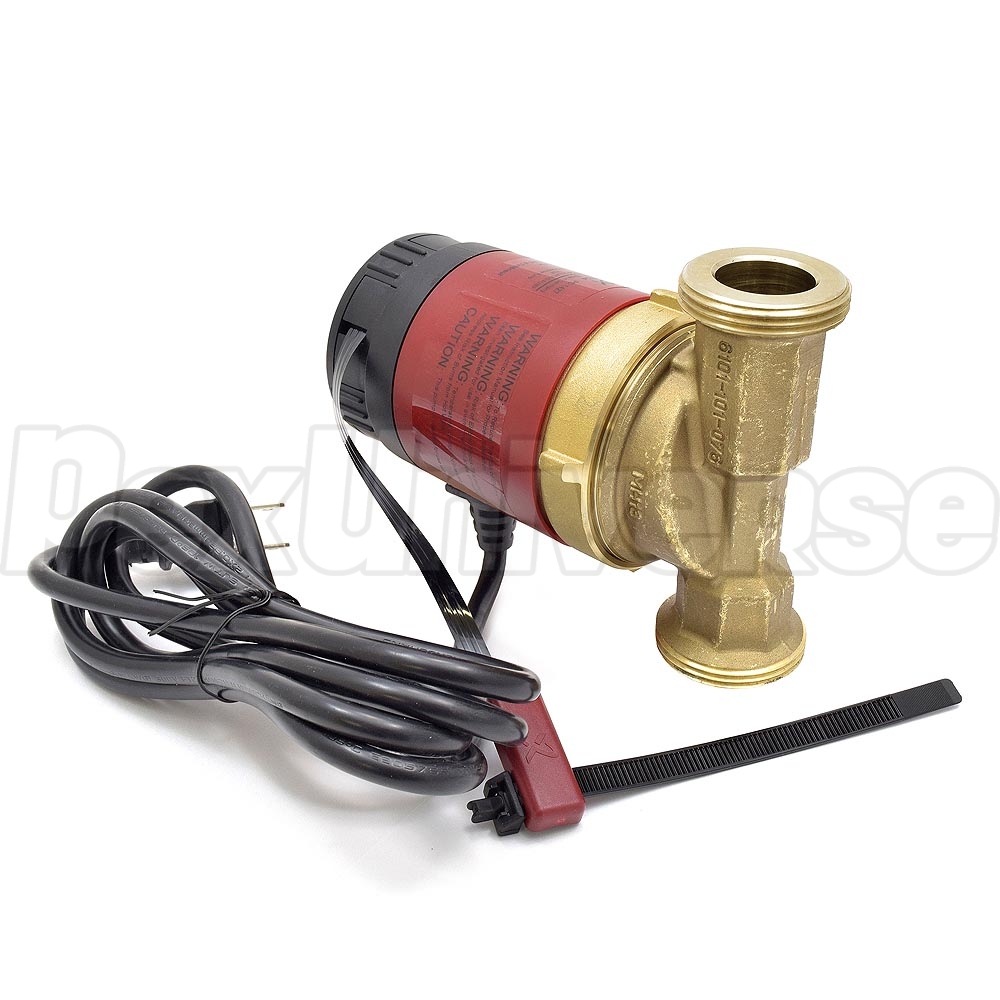

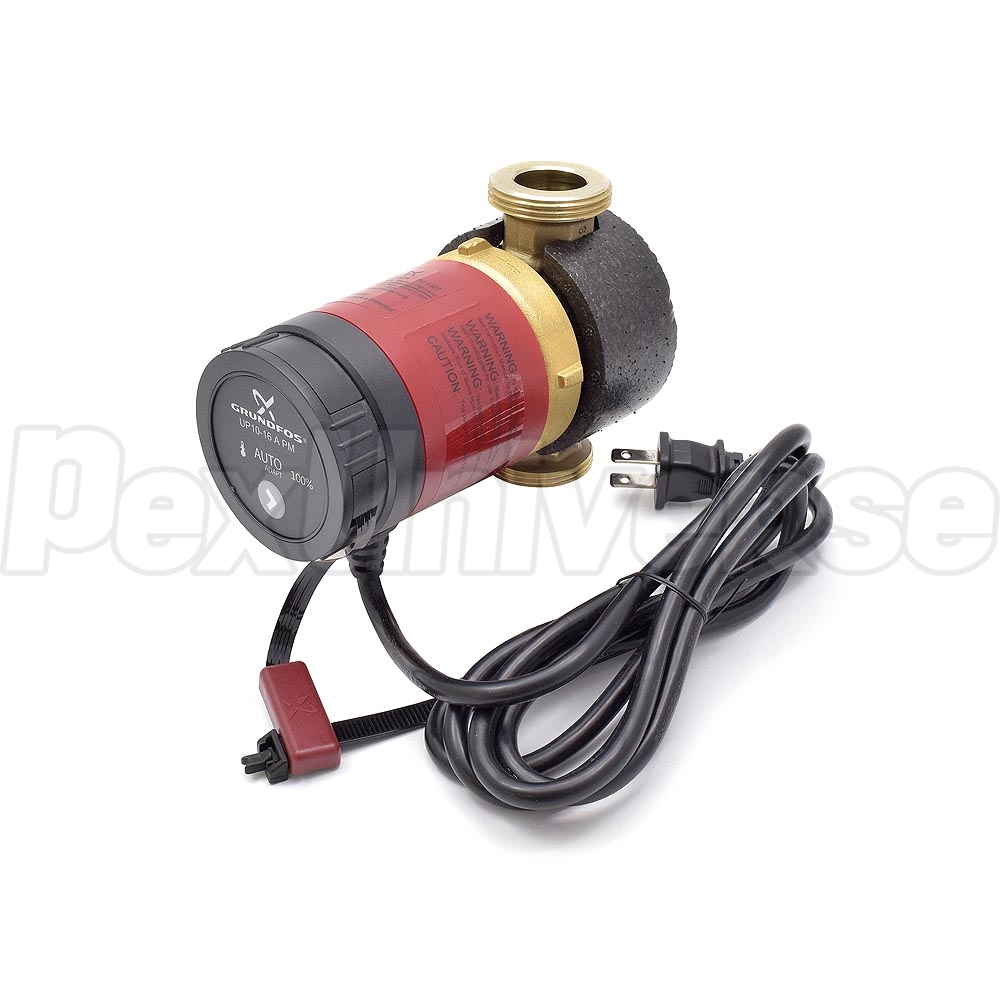

Grundfos UP10-16APMBU/LC Comfort Pump, AUTOAdapt & Line Cord, 1-1/4" Union, 115/208-230V

UP10-16APMBU/LC Comfort Pump, AUTOAdapt & Line Cord, 1-1/4" Union, 115/208-230V

Brand: Grundfos
Part#: 98420224
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

The Grundfos Comfort UP 10-16 PM Auto range sets new standards for energy-efficient hot water recirculation in residential homes. Thanks to a low noise permanent magnet motor, energy consumption is reduced to as little as 5-8.5 W. Utilizing AUTOADAPT ensures the pump only runs when required, so the result is maximum comfort with lower wait times for hot water as well as reducing water and electrical waste.


Features:
  • Compact & simple domestic hot water (DHW) recirculation pump for systems bwithout/b a dedicated return line
  • (3) modes to choose from: constant temperature (maintains consistent hot water temperature), 24/7 continious mode and AUTOAdapt mode

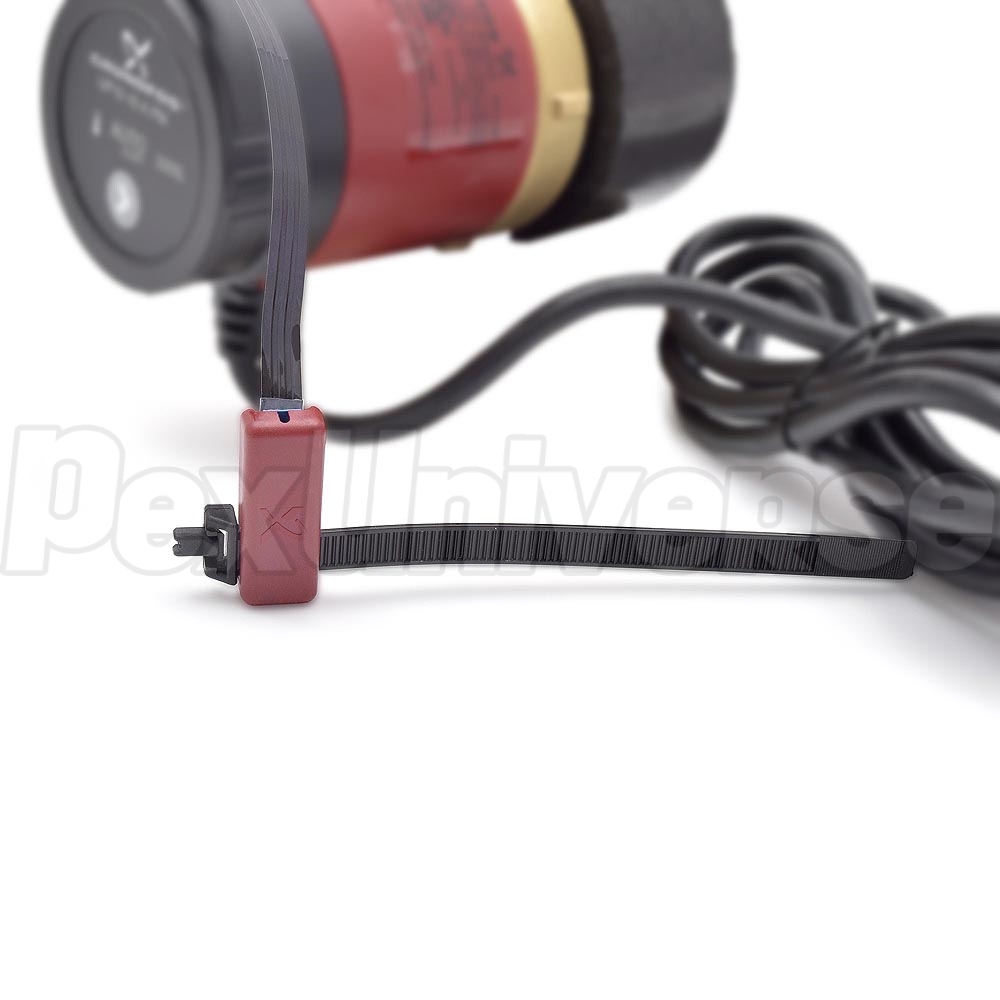

  • External temperature sensor
  • AUTOAdapt automatically adjusts operation by learning water usage patterns
  • Disinfection function runs for 15 minutes weekly (AUTOAdapt mode) to prevent stagnation
  • Double insulated (no ground wire required)
  • Dry-run protection stops the circulator if water is not detected in the system
  • Built-in isolation (shut-off) valve & check valve (removable)
  • cULus Listed; NSF/ANSI 61 & 372, MH26400 Listed

Technical Specifications:
  • Casing: Lead-Free Brass
  • Circulator Pump Type: 1-Speed
  • Connections: 1-1/4" Union (GU125)
  • Circulator Height (Flange to Flange): 4-3/8"
  • Electrical Specs: 115/208-230V, 50/60 Hz, 7W max, 0.07 Amps max
  • Head Range: 0-3.9 ft
  • Flow Range: 0-2.2 GPM
  • Operating Temperature Range: 35°F - 180°F
  • Max Operating Pressure: 145 psi
  • Dimensions (Depth x Width x Height): 5.86" x 3.31" x 4.33"
  • Weight (lbs): 3 lbs
