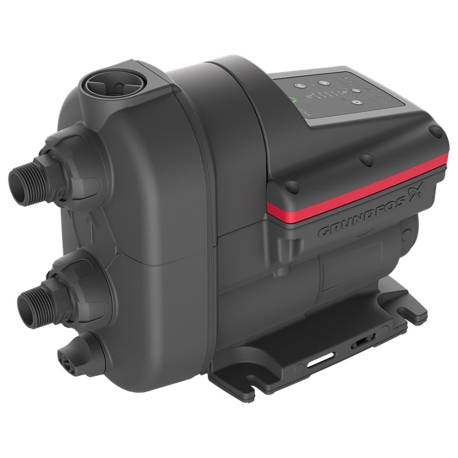

The Grundfos 93013251 SCALA2 3-45 Booster Pump is a premium, fully integrated water pressure boosting system designed for residential and light commercial applications needing dependable water flow and constant pressure. Engineered for 115V operation, this self-priming booster pump employs advanced speed control, a highly efficient permanent magnet motor, and a water-cooled design for ultra-quiet operation (as low as 44 dB(A)). The compact, plug-and-play unit is easily installed indoors or outdoors and delivers reliable pressure to homes with up to three stories and eight water outlets, regardless of fluctuating demand or inlet pressure.
Features:
Intelligent pump control providing adjustable constant pressure
115V, water-cooled, permanent magnet motor
Dry running protection with automatic reset and alarms
Self-priming suction head up to 26 feet
User-friendly control panel with clear status and alarm indicators
Built-in pressure tank to minimize pump cycling and extend pump life
Compact unit with NEMA 3 enclosure suitable for outdoor use
Plug type: NEMA 5-15
Technical Specifications:
Voltage: 1150V
Main frequency: 60 Hz
Power: 550W @ 2.3 - 2.8A
Connection: 1" NPT
Maximum ambient temperature: 113°F (45°C)
Maximum ambient temperature: 113°F (45°C)
Maximum system pressure: 145 PSI (10 bar)
Maximum inlet pressure: 87 PSI (6 bar)
Maximum head: 147 ft (45 m)
Maximum flow : 20.7 US gpm
Pumped liquid: Clean water
IP Rating: X4D
Noise: 44 dB(A)
Floors: max. 3
Taps: max. 8
Net weight: 21.3 lbs (10 kg)
Dimensions (L x W x H): 15.9" x 7.6" x 11.9" (403mm x 193mm x 302mm).
