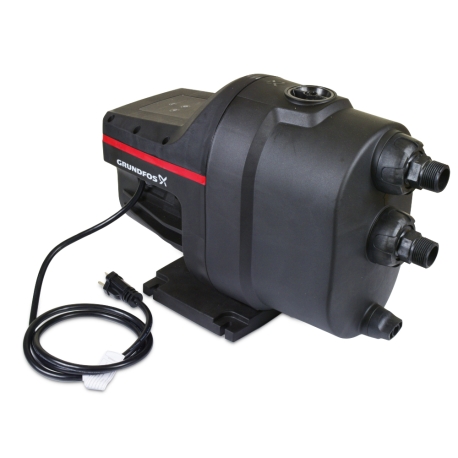

Grundfos SCALA1 is a fully integrated, self-priming, fixed speed water presure booster pump designed for a variety of applications, including shallow well, boosting from tanks, from city mains, etc. The pump features Bluetooth connectivity and can be controlled via Grundfos Go app, which allows to set pump run schedule, run diagnostics and much more. SCALA1 now features a twin mode (with a separately sold piping kit), which allows to utilize both pumps at once (for added output) or in stand-by mode (as a backup). The all-new dual 24v external input connections allow to engage/disengage the pump using an alarm or a float/level/sensor switch.
Features:
Fixed speed motor
Bluetooth enabled, works with Grundfos Go app for custom run schedule, diagnostics and more
Twin mode (duty assist or duty stand-by) - enables use of two pumps (with 99725168 kit) for increased ouput or backup
(2) 24V external input connections for pump control via alarms or flow/level switches (works for N/O or N/C)
(3) suction modes (manual selection knob located under cover below the inlet port) - suction lift (from tanks, shallow well), positive pressure (municipal/city boost) and air handling (purge air from water)
(2) integrated check valves prevent backflow
Water-cooled motor with run-dry protection
Anti-cycling function prevents the pump from starting and stopping too often in case of minor leakage or unclosed tap
Technical Specifications:
Voltage: 115V
Main frequency: 60 Hz
Power: 950W @ 8.62A
Connections: 1" NPT
Maximum ambient temperature: 131°F (55°C )
Maximum liquid temperature: 113°F (45°C)
Maximum system pressure: 116 psi
Maximum inlet pressure: 43.5 psi
Maximum head: 150.9 ft
Rated flow: 14.9 gpm
Pumped liquid: Clean, fresh water and chlorinated water 300 ppm
Type of cable plug: Type B (NEMA 5-15)
IP Rating: X4D
Factory set tank pre-charge pressure: 31.91 psi
Net weight: 26.5 lbs
Dimensions (L x W x H): 19" x 8" x 12.5" (482mm x 203mm x 317mm).
