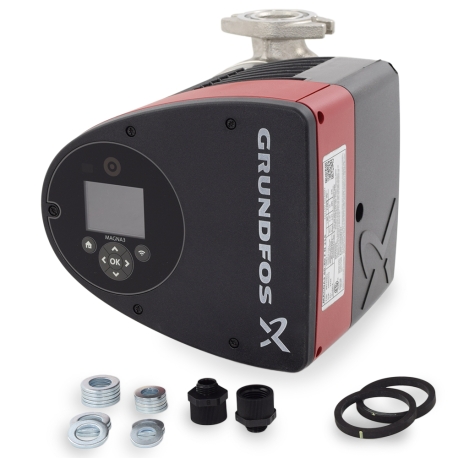

Grundfos MAGNA3 40-180 GF N is a feature-rich, stainless steel high-efficiency variable speed circulator pump designed for wide range of large residential, commercial and industrial heating, cooling and domestic water recirculating applications.
Features:
- Wide range of modes to choose from: proportional pressure (adapts to flow demand), constant pressure (keeps pressure consistent), constant temperature, differential temperature (constant temperature drop), constant curve (constant flow and constant head w/ adjusted duty point), constant flow (maintains flow independently of the head), AUTOAdapt, FLOWAdapt, and FLOWLimit (ensures that the set rated flow is never exceeded)
- (3) wireless communication modes between two single MAGNA3 pumps: alternating (one pump operates at a time, changing to the other depending on time or energy performance), backup (one main + one backup which occasionally engages to prevent seizing up), and cascade operation (both pumps automatically switch on/off, adapting to the current system changes/demands)
- Optional Grundfos GO app connectivity (via Bluetooth) for set-up/scheduling, diagnostics, and performance data
- AUTOAdapt (default factory setting) automatically adjusts the pump performance to the size of the system and load over time
- FLOWAdapt combines FLOWLimit & AUTOAdapt features, automatically setting the most efficient mode, while not overriding the flow limit
- Highest efficiency rating on the market
- Built-in energy meter monitors energy distribution and consumption
- Grundfos Eye LED displays system status for easy troubleshooting
- Application wizard interface helps to identify the best-suited control mode
- Automatic air-cooling of the system prevents condensation
- Suitable for up to pumping up to 50/50 glycol & water mix solution
- Insulating shell, conduit adapters, terminal glands, cable glands and gaskets included
- Made in the USA
- cULus, FCC Listed; NSF/ANSI 372 Listed
Technical Specifications:
- Casing: Stainless Steel
- Circulator Pump Type: variable speed, high-efficiency ECM motor with a wide range of operating modes
- Connections: Flanged (GF15/26, GF15/40, GF40/43)
- Circulator Height (Flange to Flange): 8-9/16"
- Electrical Specs: 230V, 50/60 Hz, 600W max, 2.65 Amps max
- Head Range: 0-59.06 ft
- Flow Range: 0-126 GPM
- Operating Temperature Range: 14°F - 230°F
- Ambient Temperature Range: 32 - 104°F
- Max Operating Pressure:Â 175 psi
- Sound Pressure Level: 50 dB (A)
- Energy Efficiency Index (EEI): 0.19
- Dimensions (Depth x Width x Height): 14.76" x 10.83" x 8.50"
- Weight (lbs):Â 32 lbs
Warranty:
36 months from the date of manufacture / 30 months from the date of installation
