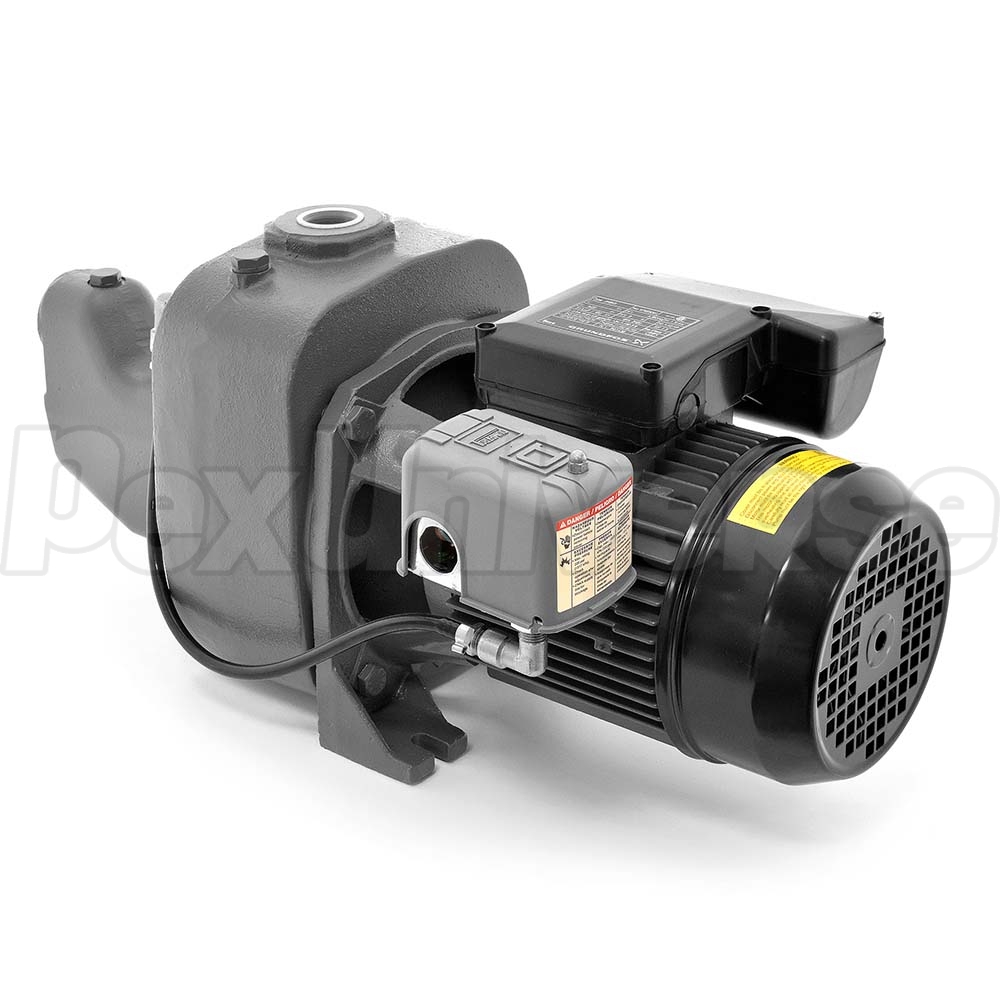

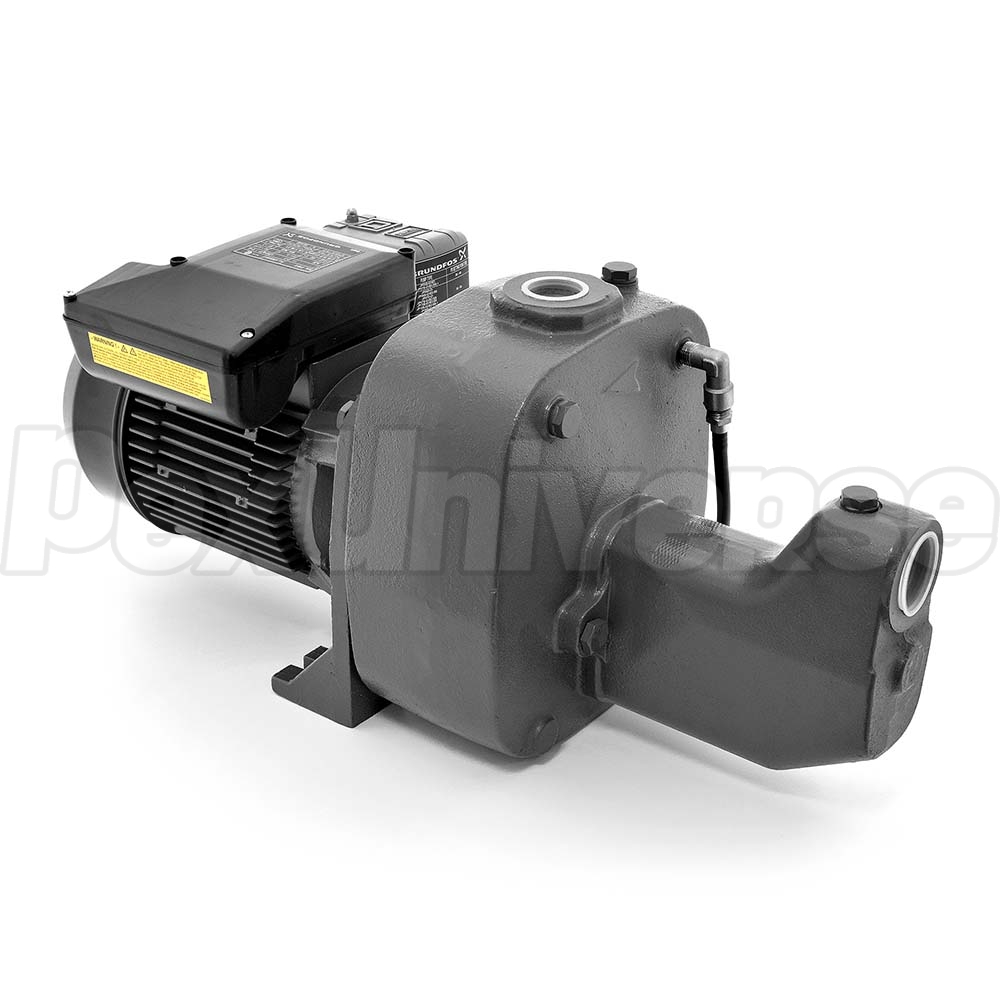

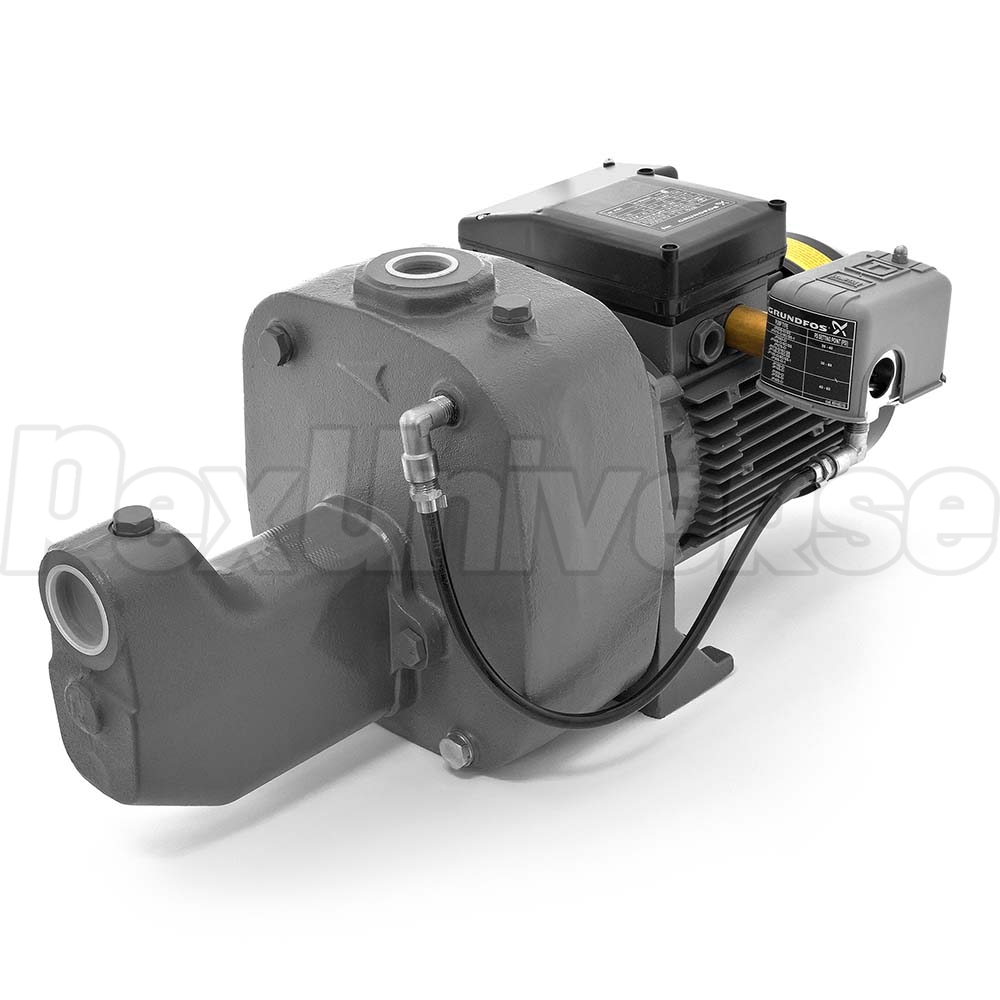

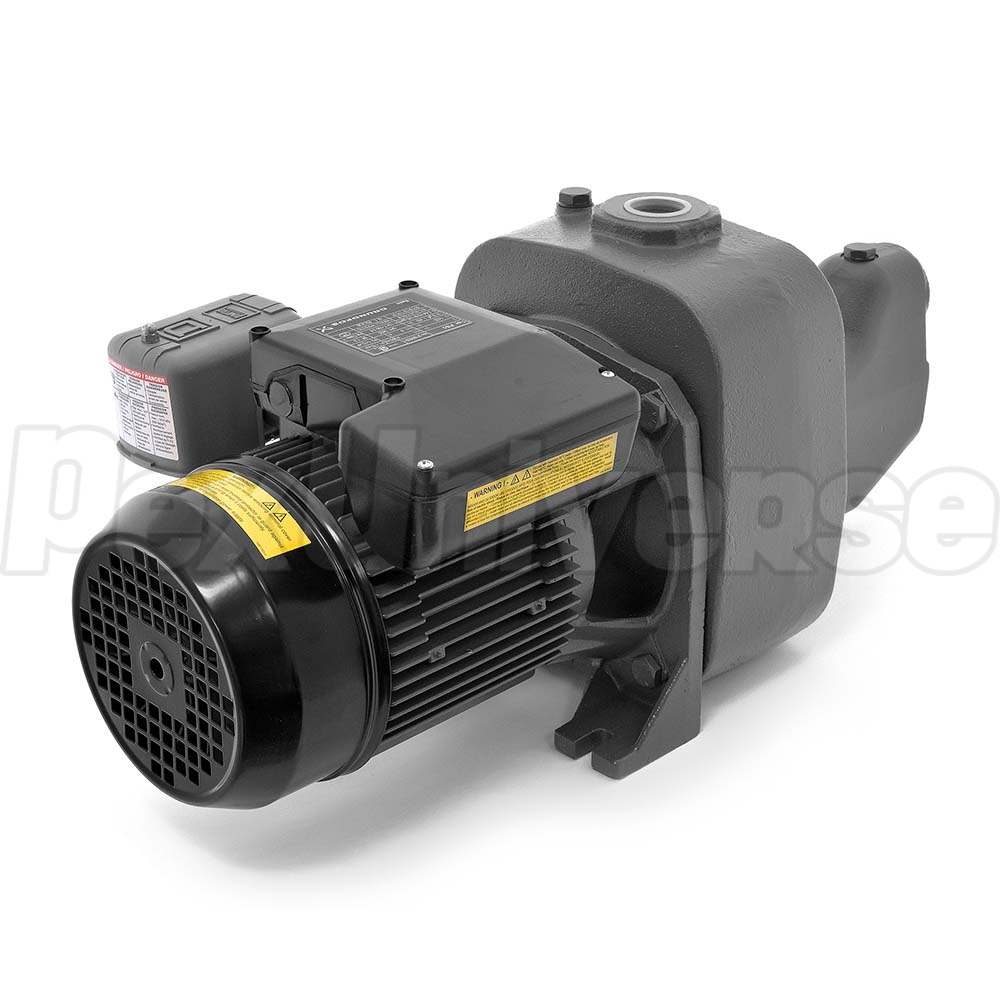

JP15S-CI Cast Iron Shallow Well Jet Pump, 1.5 HP, 230V
Brand: Grundfos
Part#: 97855091
Model: JP15S-CI
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
$672.95 / each
Free Shipping on any qty

Grundfos JP15S-CI (97855091) is a 1-1/2HP 230V Cast Iron Shallow Well Jet Pump


Features:
  • Rugged cast iron construction
  • End suction, top discharge arrangement
  • Detachable ejector assembly for deep well applications
  • Technopolymer impeller
  • Convenient priming plug for ease of priming and air elimination
  • Ceramic-carbon bellows mechanical seal ensures trouble-free operation

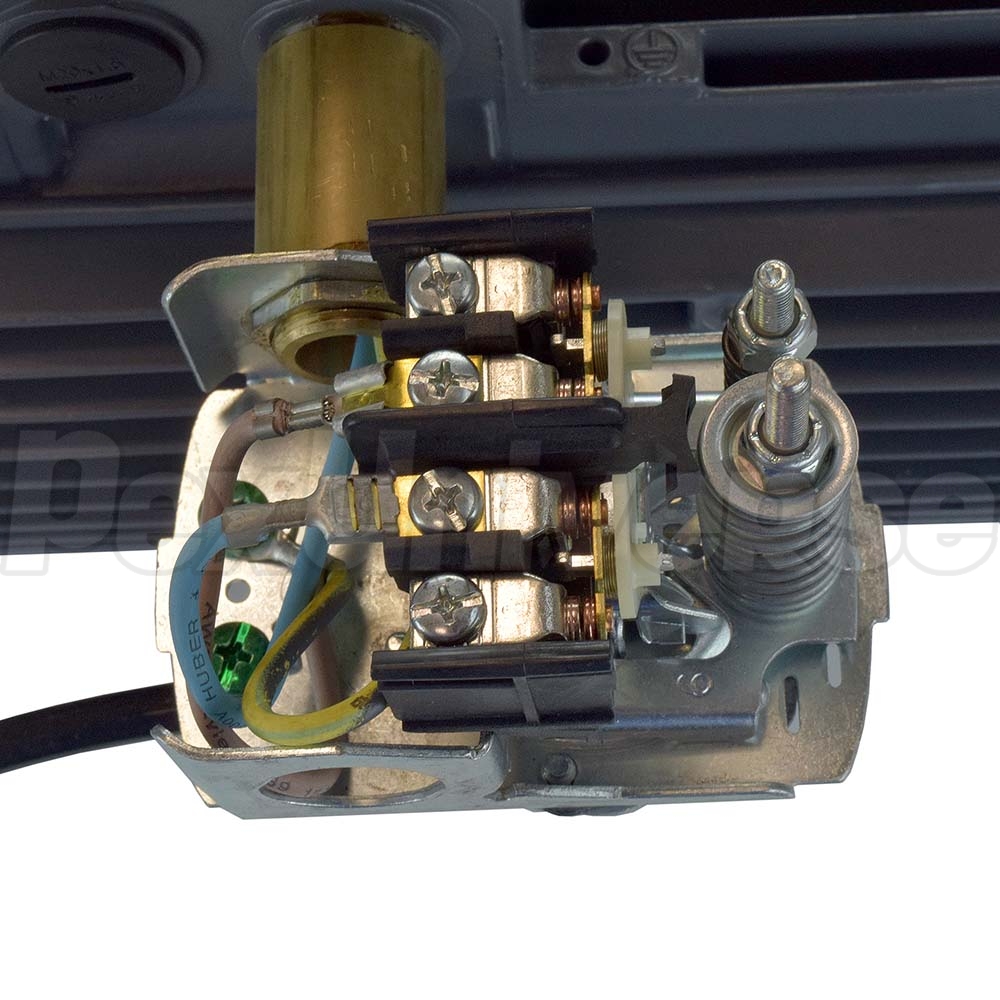

  • High quality pressure switch.

Technical Specifications:
  • Max. flow, GPM: 23
  • Max. pump head: 210ft
  • Max. working pressure: 116 PSI
  • Motor power: 1-1/2HP
  • Fluid temp range: 32 - 95F
  • Max. lift: 25ft
  • Max. ambient temp: 104F
  • Factory pressure switch setting: 40/60 PSI
  • Storage temp: 14 - 104F
  • Relative humidity: 95%
  • Max. starts per hour: 20
