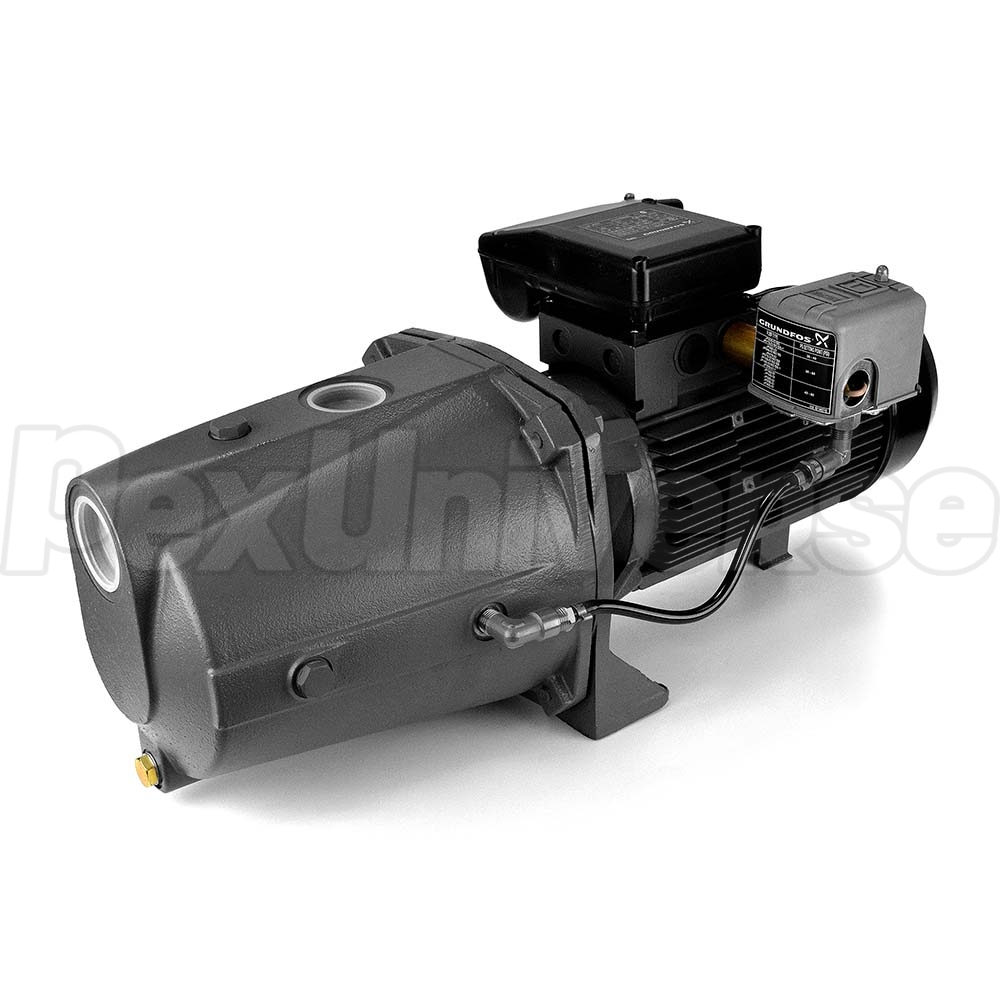

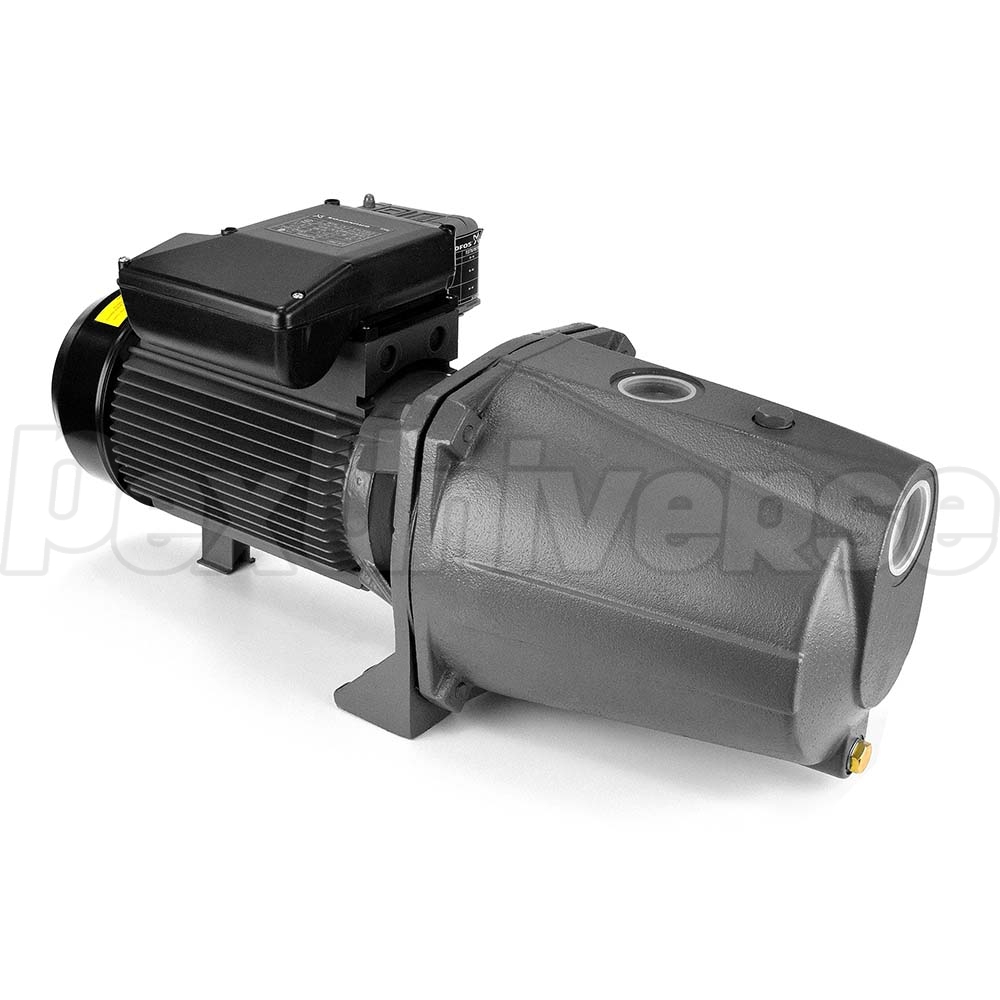

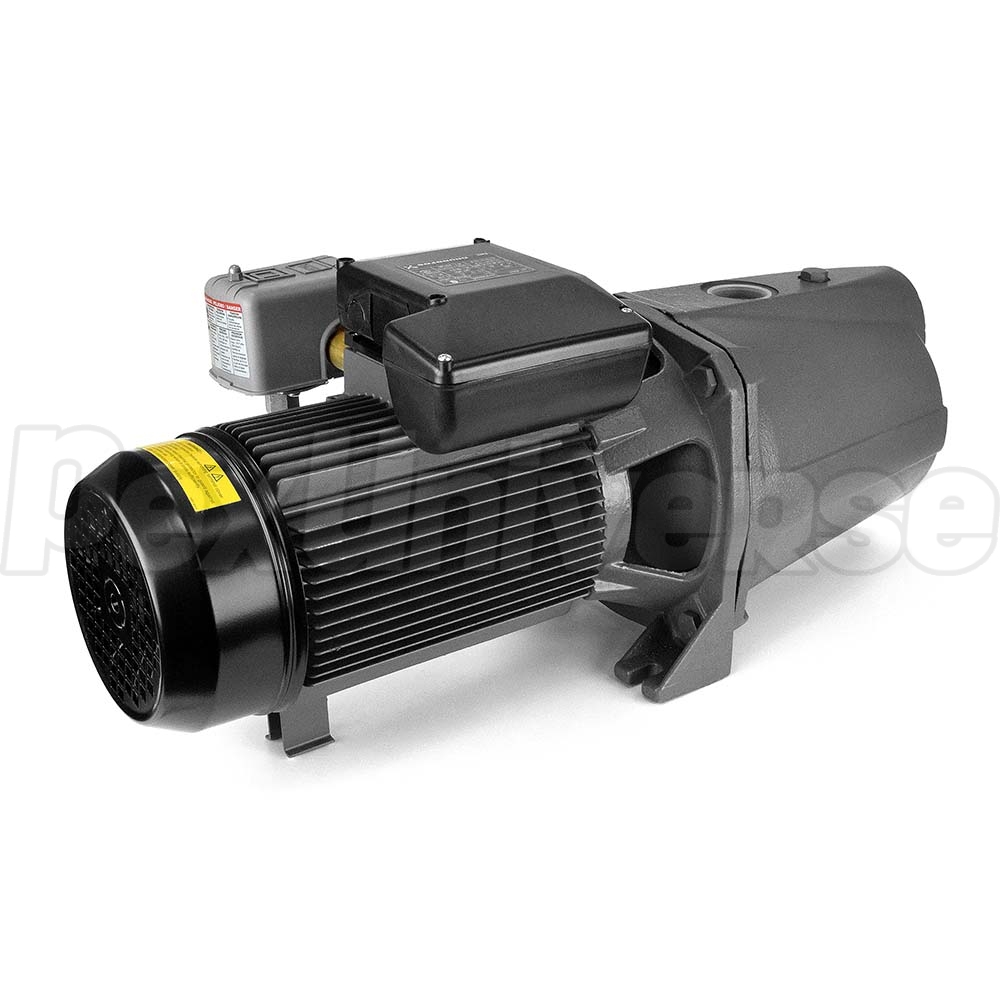

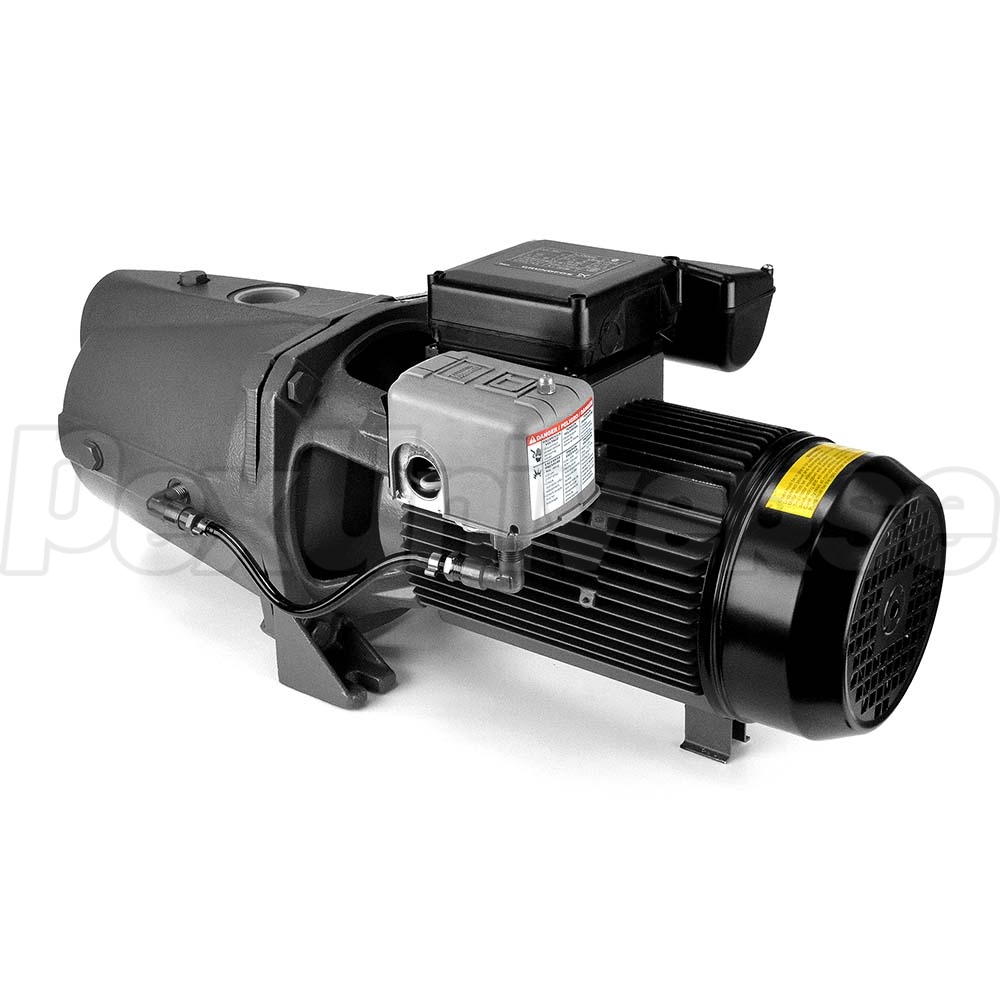

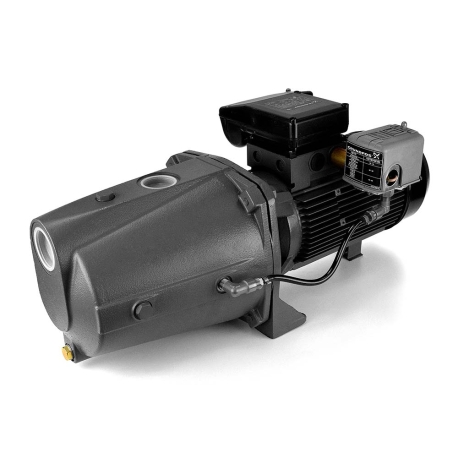

JP30S-CI Cast Iron Shallow Well Jet Pump, 3 HP, 230V
Brand: Grundfos
Part#: 97855095
Model: JP30S-CI
Ship Pickup

Description

Grundfos JP30S-CI (97855095) is a 3HP 230V Cast Iron Shallow Well Jet Pump


Features:
  • Rugged cast iron construction
  • End suction, top discharge arrangement
  • Technopolymer impeller
  • Built-in ejector complete with clean-out port to clear blockages from nozzle
  • Convenient priming plug for ease of priming and air elimination
  • Ceramic-carbon bellows mechanical seal ensures trouble-free operation

Technical Specifications:
  • Max. flow, GPM: 52
  • Max. pump head: 170ft
  • Max. working pressure: 116 PSI
  • Motor power: 3HP
  • Fluid temp range: 32 - 95F
  • Max. lift: 25ft
  • Max. ambient temp: 104F

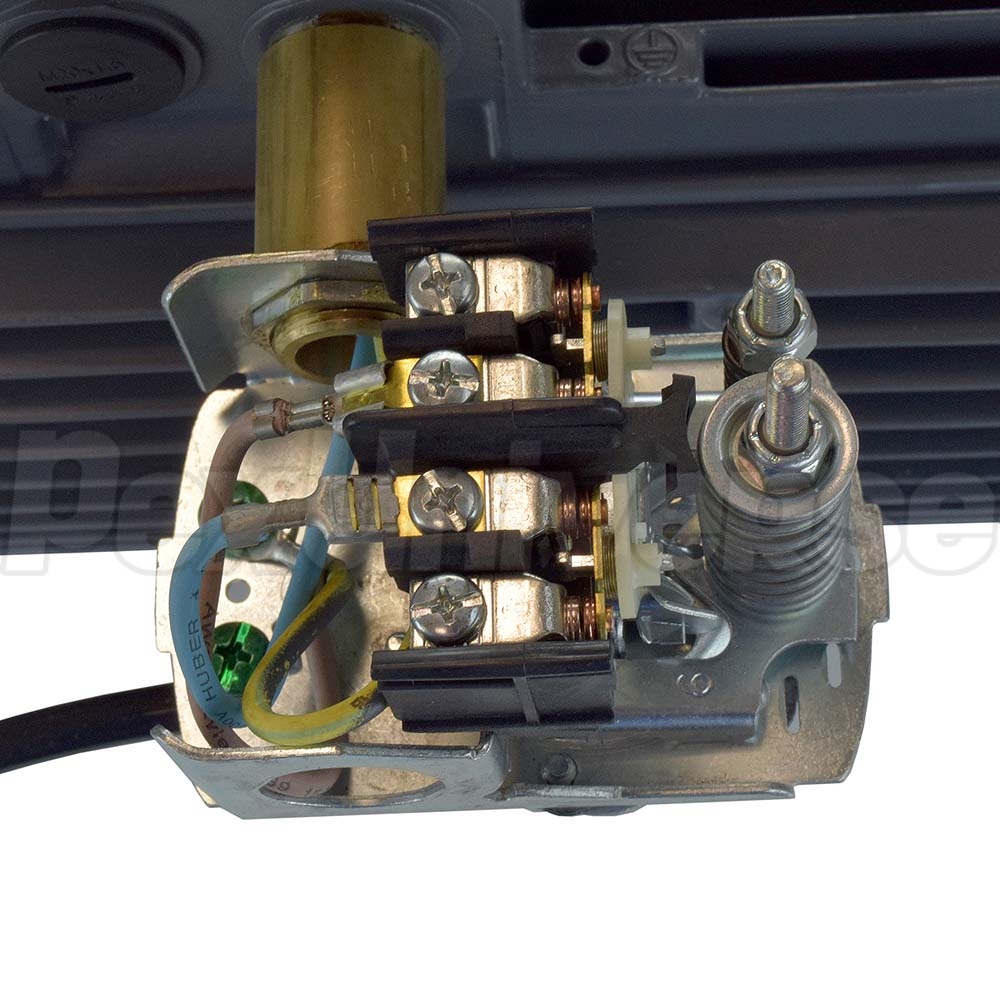

  • Factory pressure switch setting: 40/60 PSI
  • Storage temp: 14 - 104F
  • Relative humidity: 95%
  • Max. starts per hour: 20

Documents

Write a Review
Helpful? Yes 1 No
Verified Purchase
Good pump
The pump is good but maybe packing could use some work. Came with cracked plastic electrical case and bent fan cover. Was able to straighten the fan cover at least and had to get it running fast to save my trees so no chance of waiting for an exchange. The pump does a good 16GPM lifting water 104' up my hill at about 58PSI in 1 1/4" PVC. That's about double the speed of the 1HP (9.5 amp) pump I replaced with it at much better efficiency of around 11 amps. Running it's daily 15 minute cycles sounding very solid for about a week now.
Horse Power: 2 HP
By Paul (from Stevenson ranch, CA) on 06/09/2020
Helpful? Yes No
Verified Purchase
Pump
Fast delivery
Horse Power: 1.5 HP
By David (from Littlefield, AZ) on 11/08/2023
Helpful? Yes No
Verified Purchase
Shipping issue
I have not tried the pump yet, but it was a bit bit beat up in shipping. The motor fan cover was bent up to the point it won't stay on the motor and the motor fan has a couple slightly dinged up fins. It took a beating during shipping it appears and I have pictures if you want them.
Reply from PexUniverse:
Our apologies! We try to package the pump in best possible way, but due to its' weight, damage sometimes happens. In any case, it is covered both by our shipping insurance and manufacturer's warranty (which we honor) so feel free to contact us either for a replacement or parts - free of charge, of course.
Horse Power: 2 HP
By Melvin (from Everett, WA) on 03/02/2023
Helpful? Yes No
Verified Purchase
Great Service
The staff did everything possible to expedite my order without paying extra shipping... I greatly appreciated this.
Horse Power: 2 HP
By dean (from Wills point, TX) on 06/26/2022
Helpful? Yes No
Verified Purchase
Pump
Great little pump. Have used this particular model for a little over eight years and it has served me well.
Horse Power: 1.5 HP
By Thomas (from Lakehills, TX) on 05/03/2022
Helpful? Yes No
Verified Purchase
Country well pump
Works great. Fast delivery with no damage noted. Previous posts suggested better packaging which they looked like they solved.
Horse Power: 1.5 HP
By Nina (from Mountain home, TX) on 10/29/2021
Helpful? Yes No
Verified Purchase
Nice pump
Pump runs quieter than I expected. One of the few high quality jet pumps available with a 1 inch suction port.
Horse Power: 3/4 HP
By Hilary (from The dalles, OR) on 06/08/2020
Helpful? Yes No
Verified Purchase
JP07S-CI Pump
Product received in good condition, works as advertised. Shipping took longer than indicated at time of perches (2 additional days).
Horse Power: 3/4 HP
By Bruce (from Tigard, OR) on 02/05/2019
Helpful? Yes No
Verified Purchase
Jet pump
It is a nice pump. Seller is wonderful. Shipped so fast a heavy thing. I wy buy more and recommend every body
Horse Power: 2 HP
By Mohammad (from Cypress, TX) on 11/09/2018
