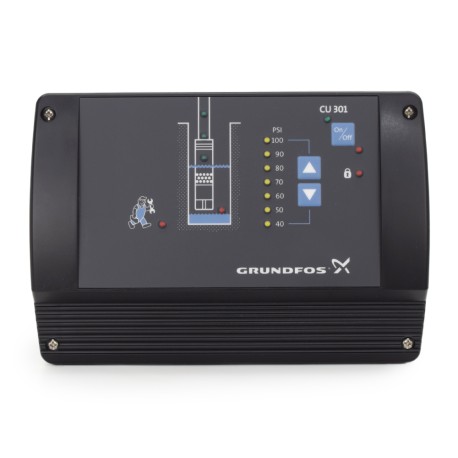

CU 301, Constant Pressure Control for SQE Pumps, 100-240V
Brand: Grundfos
Part#: 96436754
Model: CU 301
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$580.95 / each
Free Shipping on any qty
Add to Cart

Description

Constant pressure control for SQE series deep well submersible pumps enables constant pressure functionality, has an on/off switch, low-water & maintenance required indicators and panel lockout.
This module turns the SQE pump On or Off and regulates speed (to match selected pressure setting) by means of the transducer pressure sensor (sold separately, not included with this model), which has 1/2" NPT connection and is installed into a tee fitting connected in-line to the well water pipe.
Compatible with all SQE pumps - both 115V and 230V (200-240V).
Also compatible with Grundfos MI 301 remote.

Features:
  • Designed for use specifically with Grundfos SQE series deep well pumps
  • Universal compatibility with both 115V and 230V models
  • Enables constant pressure control/selection (40-100 psi) feature on SQE pumps
  • Combines wiring box, control module and status display into a single unit
  • LED indicators for selected pump pressure, low water condition, service required, on/off status and touchpad lockout
  • Pump and control can be used with a smaller (2.0 gal) well expansion tank, allowing for a more compact instalation
  • Connections for optional light and/or sound transmitter (to indicate pump running/stand-by status)
  • Compatible with Grundfos GO app (must use with MI 301 remote) for access to status, settings, alarms and warnings right on your phone
  • Must be used with pressure sensor (Grundfos part# 92506685 or similar)

Technical Specifications:
  • Electrical Data: 100-240V, 50/60 Hz, 5 W (Power Consumption), 130 mA (max. Current Consumption)
  • Enclosure Class: IP55
  • Operating Relay: 0.5 A (Max. Current), 230 VAC (Max Voltage)

Warranty:
30 months from the date of manufacture / 24 months from date of installation
