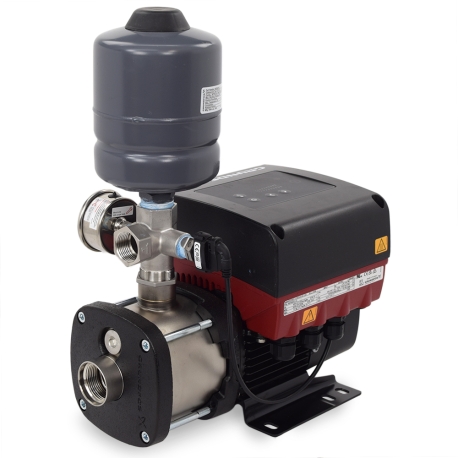

Grundfos CMBE-5-62 is a 230V all-in-one booster pump system with adjustable outlet pressure. It's compact, time-tested and features an advanced control with built-in pressure tank to prevent water pressure fluctuations due to change in demand or inlet pressure. Installation is easy - simply connect the inlet/outlet pipes, plug the pump into an outlet and set the desired pressure. Grundfos CMBE system is made using high quality materials, including 304 stainless steel housing & impeller - to ensure a lasting, worry-free performance. CMBE-5-62 model is powerful, highly versatile and suitable for a wide range of residential & commercial applications - from apartment buildings to hotels and office buildings.
Cross-References:
Grundfos: 22 BMQE 10C-190, 30 BMQE 10C-130
Features:
Suitable for apt. buildings, hotels and office buildings
Adjustable output pressure via buttons on top panel
Easy installation - simply connect the piping, connect power and dial the desired pressure
No fluctuations due to change in water demand or pump starting/stopping
Quiet, compact, rugged and reliable design
Includes 5ft cord w/ plug
High-efficiency ECM motor uses up to 85% less electricity
Built-in thermal, dry-run and overload protection
Grundfos Eye LED displays system status for easy troubleshooting
Grundfos GO compatible
5-way fitting w/ integrated check valve, expansion tank and pressure gauge - included
cULus Listed; NSF/ANSI 61 & 372, MH26400 Listed
Technical Specifications:
head Range: 0-230 ft
Flow Range: 0-34 GPM
Connections: 1-1/4" FNPT inlet, 1" FNPT outlet
Electrical Specs: 200-240V, 50/60 Hz, Single Phase, 1.5 kW max, 9.1-7.6 Amps max
Motor Rating: 2HP, 360-4000 rpm
Liquid Temperature Range: 32°F - 140°F
Max. Ambient Temperature: 131°F
Max Operating Pressure: 145 psi
Cut-In Pressure: 7 psi above setpoint
Enclosure Class: IP55
Materials: 304 Stainless Steel Housing & Impeller, Cast Iron Flange, Silumin (Alu) Stator Housing, Composite Terminal Box and Fan Cover
Sound level: 55 db(A)
Net Weight: 42 lbs
Dimensions (Depth x Width x Height): 13.90" x 8.54" x 17.90"
Warranty:
24 months from the date of installation / 30 months from the date of manufacture
