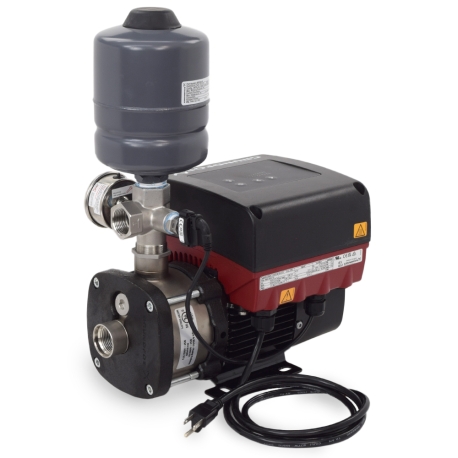

CMBE-1-44 Pressure Booster Pump System, 115V
Brand: Grundfos
Part#: 98810910
Model: CMBE-1-44
Usually ships: Upon availability
Grundfos CMBE-1-44 is a 115V all-in-one booster pump system with adjustable outlet pressure. It's compact, time-tested and features an advanced control with built-in pressure tank to prevent water pressure fluctuations due to change in demand or inlet pressure.
Installation is easy - simply connect the inlet/outlet pipes, plug the pump into an outlet and set the desired pressure.
Grundfos CMBE system is made using high quality materials, including 304 stainless steel housing & impeller - to ensure a lasting, worry-free performance.
CMBE-1-44 model is ideal for smaller residential applications, including average size single family homes.

Cross-References:
  • Grundfos: 15 BMQE 05A-110

Features:
  • Ideal pressure booster system for single family homes
  • Adjustable output pressure via buttons on top panel
  • Easy installation - simply connect the piping, plug into a socket and dial the desired pressure
  • No fluctuations due to change in water demand or pump starting/stopping
  • Quiet, compact, rugged and reliable design
  • Includes 5ft cord w/ plug
  • High-efficiency ECM motor uses up to 85% less electricity
  • Built-in thermal, dry-run and overload protection
  • Grundfos Eye LED displays system status for easy troubleshooting
  • Grundfos GO compatible
  • 5-way fitting w/ integrated check valve, expansion tank and pressure gauge - included
  • cULus Listed; NSF/ANSI 61 & 372, MH26400 Listed

Technical Specifications:
  • Head Range: 0-128 ft
  • Flow Range: 0-13 GPM
  • Connections: 1" FNPT inlet, 1" FNPT outlet
  • Electrical Specs: 115V, 50/60 Hz, Single Phase, 0.75 kW max, 8 Amps max
  • Motor Rating: 1 HP, 360-4000 rpm
  • Liquid Temperature Range: 32°F - 140°F
  • Max. Ambient Temperature: 131°F
  • Max Operating Pressure: 145 psi
  • Cut-In Pressure: 7 psi above setpoint
  • Enclosure Class: IP55
  • Materials: 304 Stainless Steel Housing & Impeller, Cast Iron Flange, Silumin (Alu) Stator Housing, Composite Terminal Box and Fan Cover
  • Sound level: 55 db(A)
  • Net Weight: 40 lbs
  • Dimensions (Depth x Width x Height): 12.80" x 8.54" x 17.30"

Warranty:
24 months from the date of installation / 30 months from the date of manufacture
