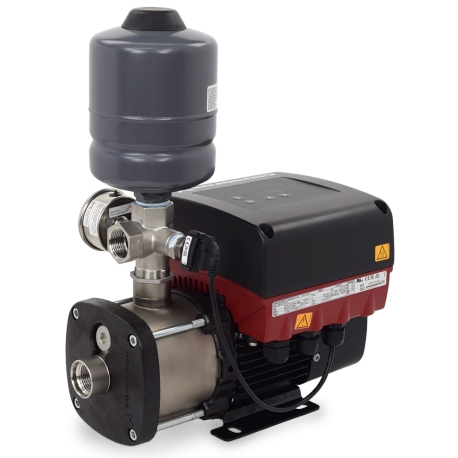

Grundfos CMBE-1-44 is a 230V all-in-one booster pump system with adjustable outlet pressure. It's compact, time-tested and features an advanced control with built-in pressure tank to prevent water pressure fluctuations due to change in demand or inlet pressure.
Installation is easy - simply connect the inlet/outlet pipes, plug the pump into an outlet and set the desired pressure.
Grundfos CMBE system is made using high quality materials, including 304 stainless steel housing & impeller - to ensure a lasting, worry-free performance.
CMBE-1-44 model is ideal for smaller residential applications, including average size single family homes.
Cross-References:
- Grundfos: 15 BMQE 05A-110
- Ideal pressure booster system for single family homes
- Adjustable output pressure via buttons on top panel
- Easy installation - simply connect the piping, connect power and dial the desired pressure
- No fluctuations due to change in water demand or pump starting/stopping
- Quiet, compact, rugged and reliable design
- Includes 5ft cord w/ plug
- High-efficiency ECM motor uses up to 85% less electricity
- Built-in thermal, dry-run and overload protection
- Grundfos Eye LED displays system status for easy troubleshooting
- Grundfos GO compatible
- 5-way fitting w/ integrated check valve, expansion tank and pressure gauge - included
- cULus Listed; NSF/ANSI 61 & 372, MH26400 Listed
- Head Range: 0-158 ft
- Flow Range: 0-13 GPM
- Connections: 1" FNPT inlet, 1" FNPT outlet
- Electrical Specs: 200-240V, 50/60 Hz, Single Phase, 0.55 kW max, 3.5-2.9 Amps max
- Motor Rating: 3/2 HP, 360-4000 rpm
- Liquid Temperature Range: 32°F - 140°F
- Max. Ambient Temperature: 131°F
- Max Operating Pressure: 145 psi
- Cut-In Pressure: 7 psi above setpoint
- Enclosure Class: IP55
- Materials: 304 Stainless Steel Housing & Impeller, Cast Iron Flange, Silumin (Alu) Stator Housing, Composite Terminal Box and Fan Cover
- Sound level: 55 db(A)
- Net Weight: 36 lbs
- Dimensions (Depth x Width x Height): 12.90" x 8.54" x 17.30"
24 months from the date of installation / 30 months from the date of manufacture
