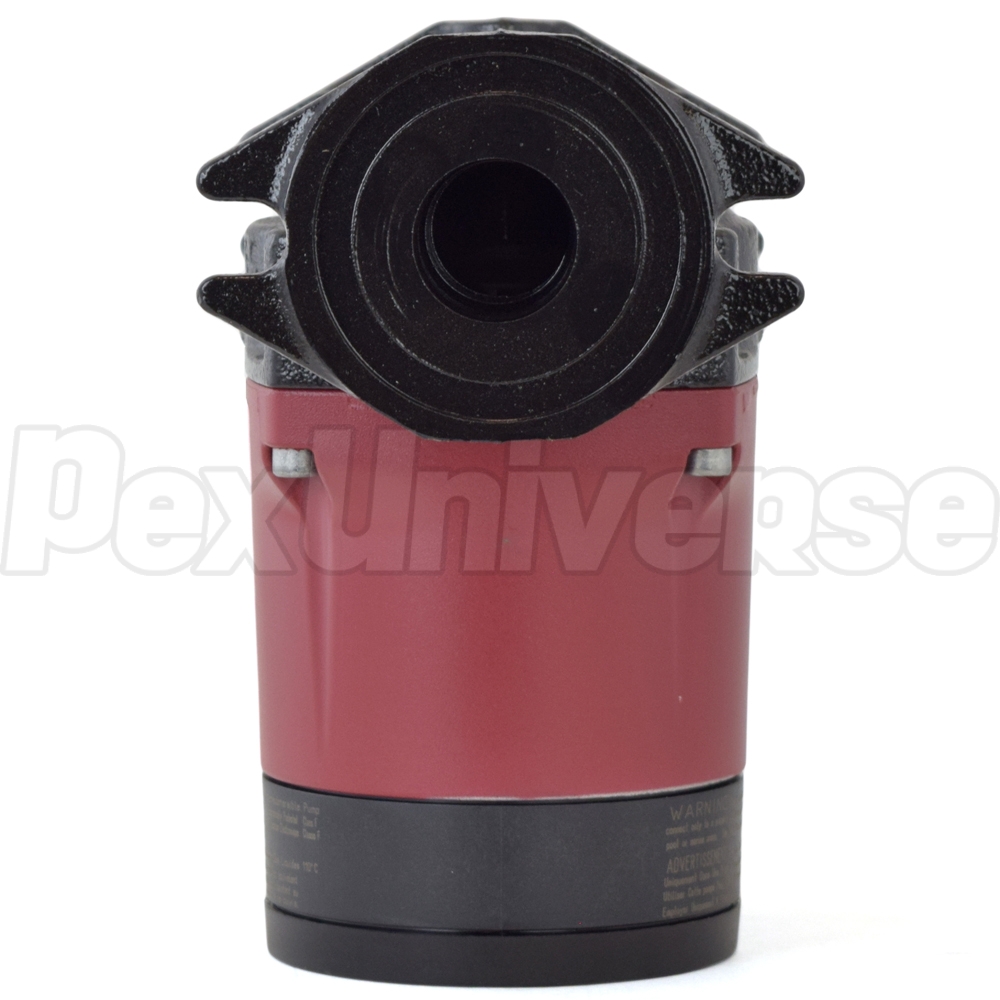

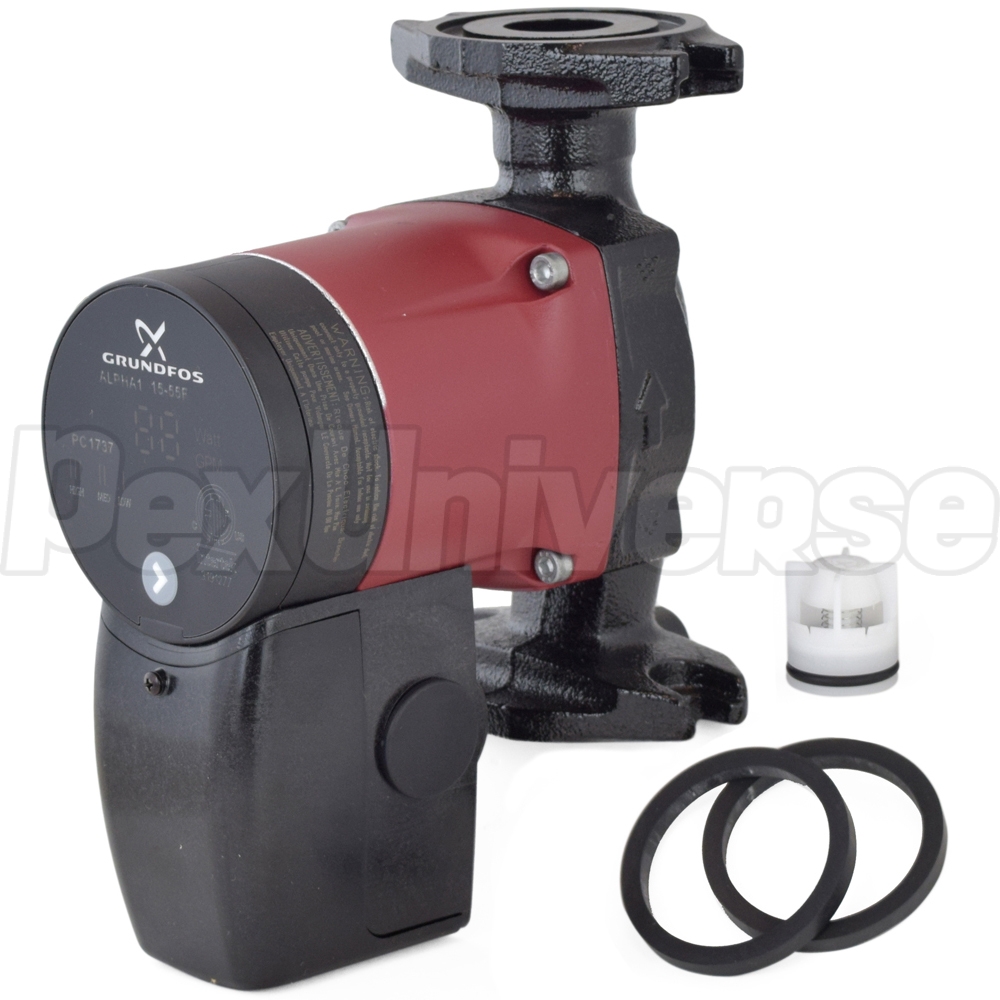

Alpha1 15-55F Variable Speed Circulator Pump w/ IFC, 1/16 HP, 115V Grundfos
Alpha1 15-55F Variable Speed Circulator Pump w/ IFC, 1/16 HP, 115V
Brand: Grundfos
Part#: 99287256
Model: Alpha1 15-55F
This product has been discontinued. No direct replacement is available at this time.

Description

Cross-reference:
Grundfos: UP15-10F, UP15-42F, UPS15-42F, UPS15-58FC;
Taco: 005-F2-3, 006-F7, 007-F5-5, 008-F6-1, 008-F6-3, 00R-F6-1, 00R-MSF, 0015-MSF3-1, 007e, 0015e;
B&G: NRF-9F/LW, NRF-22, NRF-25, NRF-9F/LW, Ecocirc 19-14 vario, Ecocirc 19-14 auto;
Armstromg: Astro 20, Astro 25, Astro 30, Astro 230CI-R, Astro 250CI-R, Compass 20-20;
WILO: Star S 16FX, Star S 21FX, Star S 21RFC, Stratos ECO 16 RFC;

Features:
  • Push button selects one of (3) constant pressure settings
  • Ideal for residential hydronic or radiant heating
  • Replaces over (30) circulator models
  • Ultra-efficient, requires a fraction of power used by regular circulators
  • Large LED display
  • Integrated (removable) check-valve and nut captures for flanges
  • Highest torque rating and most powerful start feature in its class of circulators
  • Magnetic drive motor with ECM technology, ceramic shaft and stainless steel bearing plate
  • Standard flange accepts Grundfos GF15/26 and other brand flanges
  • Made in the USA.

Technical Specifications:
  • Circulator type: Variable Speed
  • Voltage: 115V
  • Amperage: 0.65A
  • Hertz: 60 Hz
  • Phase: 1
  • Watts: 5-45 W
  • Wiring: Hardwired (terminal box)
  • Temperature Range: 36°F to 230°F
  • Max Pressure: 150 PSI
  • Flow Range: 0 - 21 GPM
  • Head Range: 0 - 19 Ft of head
  • Material: Cast Iron
  • Noise level: 19.2 dB(A)
  • Application: Heating only (closed-loop).

Warranty:
30 months from date of installation
