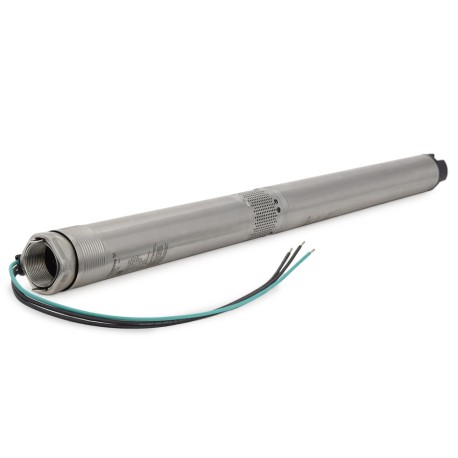

15SQE15-290, 3" Submersible Deep Well Pump, 200-240V, Rated 13.2 GPM/370ft Head, 1-1/2 HP, 8 Stages
Brand: Grundfos
Part#: 96160195
Model: 15SQE15-290
Usually ships: Upon availability
SQE series pumps are variable speed deep well submersible pumps which offer constant pressure control/functionality when used with CU 301 or CU 302 controls with pressure sensor. These controls allow to set a desired pressure and the pump will vary speed to match the current requirements. Such installation is much more compact, as it does not require a large well water storage tank.
SQE can also be installed as is (without the control) and will operate in a manner similar to their predecessor - SQ series, where water is pumped to and stored in a well water tank (such as Well-X-Trol) and on/off operation is controlled by a standard pressure switch (such as Square D).

Features:
  • Unlike SQ series, SQE is a variable speed pump, which offers constant pressure control functionality when used with CU 301 or 302 module
  • CU 301/302 control (optional, sold separately) allows adjustable constant pressure selection and remote pump set-up & diagnostics
  • When used with CU 301/302 module in constant pressure mode, a much smaller well tank (2 gallons) can be used, allowing for a more compact and less expensive installation
  • Rugged 304 stainless steel contruction and reliable, time-tested performance
  • Easy to install - single-phase, 2-wire (+ ground) design - ideal drop-in replacement for similar models, no complex wiring
  • Can be wired to a standard Square D or similar pressure switch when used with a well water storage tank (Well-X-Trol or similar)
  • Much higher efficiency than conventional pumps thanks to the variable-speed, permanent magnet motor
  • Superior sand wear resistance thanks to the floating impellers with tungsten carbide bearings
  • Dry-running protection with auto-retry
  • Unique Soft Start feature ensures a smooth acceleration, prevents overload during start-up, reduces motor wear and system stress (longer life and no water hammer)
  • Overvoltage and undervoltage protection with auto cut-in (retry)
  • Overload and thermal protection (overheating and freezing) with auto-retry
  • Built-in check valve

Technical Specifications:
  • Electrical Data: 200-240V, 60 Hz, Single Phase, 12.3 Amps
  • Max. Flow: 19.5 GPM
  • Rated Flow: 13.2 GPM
  • Max. Head: ~480 ft
  • Rated Head: 370.8 ft
  • Discharge Size/Connection: 1-1/4" NPT
  • Max Operating Pressure: 217 psi
  • Water Temperature Range: 34°F - 86°F
  • Water pH Range: 5 - 9 pH
  • Pump Stages: 8
  • Motor Specs: MSE3 Type, 1-1/2 HP, 3600-10700 rpm
  • Min. Well Diameter: 3" or larger boreholes
  • Pump Material: 304 Stainless Steel
  • Enclosure Class: IP68
  • Dimensions (Diameter x Overall Length): 2.9" x 34.8"
  • Weight (lbs): 16 lbs

Warranty:
30 months from the date of manufacture / 24 months from date of installation
