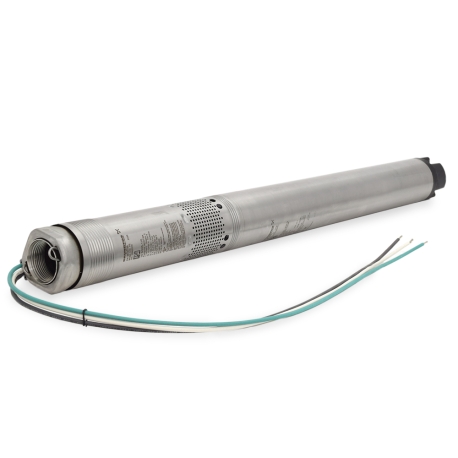

10SQ05-160, 3" Submersible Deep Well Pump, 115V, Rated 8.81 GPM/177ft Head, 1/2 HP, 3 Stages Grundfos
10SQ05-160, 3" Submersible Deep Well Pump, 115V, Rated 8.81 GPM/177ft Head, 1/2 HP, 3 Stages
Brand: Grundfos
Part#: 96160167
Model: 10SQ05-160
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

SQ series pumps are conventional fixed-speed deep well submersible pumps which which combine slim profile, time-tested, reliable design and ease of installation (no special controls needed). SQ pumps are ideally suited for common pump + well tank (such as Well-X-Trol) combinations where pressure switch (such as Square D) turns the pump on or off as needed.

Features:
  • Time-tested, reliable performance and rugged 304 stainless steel contruction
  • Easy to install, simple constant-speed, 1-phase, 2-wire (+ ground) design - ideal drop-in replacement for similar models, no complex wiring
  • Can be wired to a standard Square D or similar pressure switch when used with a well tank (such as Well-X-Trol or similar)
  • Higher efficiency than conventional pumps thanks to the permanent magnet motor - for added energy savings and slimmer design
  • Enhanced sand wear resistance thanks to the floating impellers with tungsten carbide bearings
  • Dry-running protection with auto-retry
  • Unique Soft Start feature ensures a smooth acceleration, prevents overload during start-up, reduces motor wear and system stress (longer life and no water hammer)
  • Overvoltage and undervoltage protection with auto cut-in (retry)
  • Overload and thermal protection (overheating and freezing) with auto-retry
  • Built-in check valve

Technical Specifications:
  • Electrical Data: 100-120V, 60 Hz, Single Phase, 12 Amps
  • Max. Flow: 15 GPM
  • Rated Flow: 8.81 GPM
  • Max. Head: ~225 ft
  • Rated Head: 177.2 ft
  • Discharge Size/Connection: 1-1/4" NPT
  • Max Operating Pressure: 217 psi
  • Water Temperature Range: 34°F - 86°F
  • Water pH Range: 5 - 9 pH
  • Pump Stages: 3
  • Motor Specs: MS3 Type, 1/2 HP, 3600-10700 rpm
  • Min. Well Diameter: 3" or larger boreholes
  • Pump Material: 304 Stainless Steel
  • Enclosure Class: IP68
  • Dimensions (Diameter x Overall Length): 2.9" x 29.1"
  • Weight (lbs): 11 lbs

Warranty:
30 months from the date of manufacture / 24 months from date of installation
