24" SafetyShield High BTU Stainless Steel Gas Appliance Connector, 3/4" MIP (1/2" FIP) x 3/4" FIP, 3/4" ID Dormont
24" SafetyShield High BTU Stainless Steel Gas Appliance Connector, 3/4" MIP (1/2" FIP) x 3/4" FIP, 3/4" ID
Brand: Dormont
Part#: 0240927
Model: 40C-4142-24
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

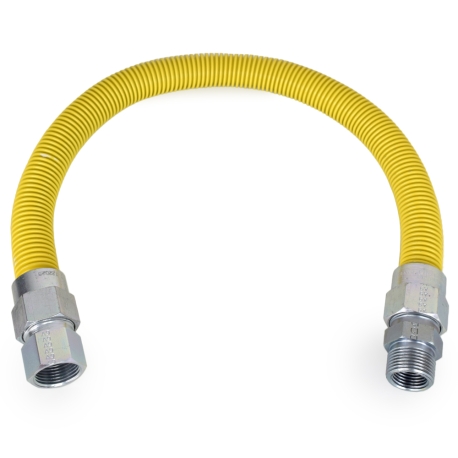

Dormont 24" long 3/4" ID (1" OD) high-BTU gas appliance connector with SafetyShield yellow polymer coating.

Features:
  • 304 Stainless Steel tubing is flexible, durable and corrosion-resistant
  • Larger ID allows for use with high-BTU appliances
  • Dormont SafetyShield yellow coating protects the steel from common household chemicals and cooking oil, allows for easy identification and is standard for appliance gas connectors
  • CSA certified and 100% leak tested
  • Assembled in the USA.

Technical Specifications:
  • Connections: 3/4" MIP (1/2" FIP) x 3/4" FIP
  • Hose Diameter: 3/4" ID (1" OD)
  • Length: 24"
  • Temperature: - 40°F to 150°F
  • Maximum Pressure: standard line pressure up to 1/2 PSI
  • Flow Capacity for Natural Gas (Straight Length): 290,900 BTU/hr
  • Flow Capacity for LPG/Propan (Straight Length): 465,440 BTU/hr
  • Tubing: Annealed, 304 stainless steel (ASTM A240)
  • Coating: Custom formulated yellow polymer
  • Nuts & Adapters: Zinc plated carbon steel
