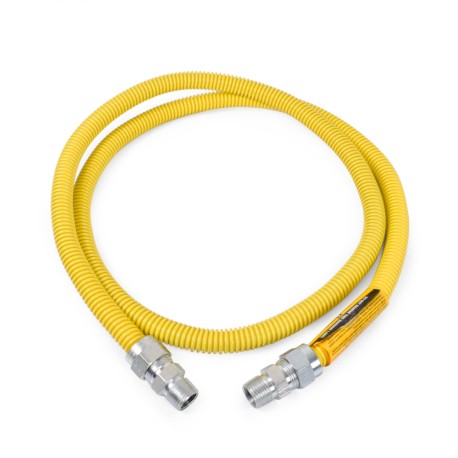

72" SafetyShield Stainless Steel Gas Appliance Connector, 1/2" MIP (3/8" FIP) x 1/2" MIP (3/8" FIP), 1/2" ID Dormont
72" SafetyShield Stainless Steel Gas Appliance Connector, 1/2" MIP (3/8" FIP) x 1/2" MIP (3/8" FIP), 1/2" ID
Brand: Dormont
Part#: 0240859
Model: 30C-3131-72
This product has been discontinued. No direct replacement is available at this time.

Description

Dormont 72" long 1/2" ID (5/8" OD) standard gas connector for use with indoor/outdoor stationary appliances. SafetyShield yellow polymer coating provides unequaled corrosion resistance.

Features:
  • 304 Stainless Steel tubing is flexible, durable and corrosion-resistant
  • Dormont SafetyShield yellow coating protects the steel from common household chemicals and cooking oil, allows for easy identification and is standard for appliance gas connectors
  • CSA certified and 100% leak tested
  • Assembled in the USA.

Technical Specifications:
  • Connections: 1/2" MIP (3/8" FIP) x 1/2" MIP (3/8" FIP)
  • Hose Diameter: 1/2" ID (5/8" OD)
  • Length: 72"
  • Temperature: - 40°F to 150°F
  • Maximum Pressure: standard line pressure up to 1/2 PSI
  • Flow Capacity for Natural Gas (Straight Length): 86,000 BTU/hr
  • Flow Capacity for LPG/Propan (Straight Length): 137,600 BTU/hr
  • Tubing: Annealed, 304 stainless steel (ASTM A240)
  • Coating: Custom formulated yellow polymer
  • Nuts & Adapters: Zinc plated carbon steel
