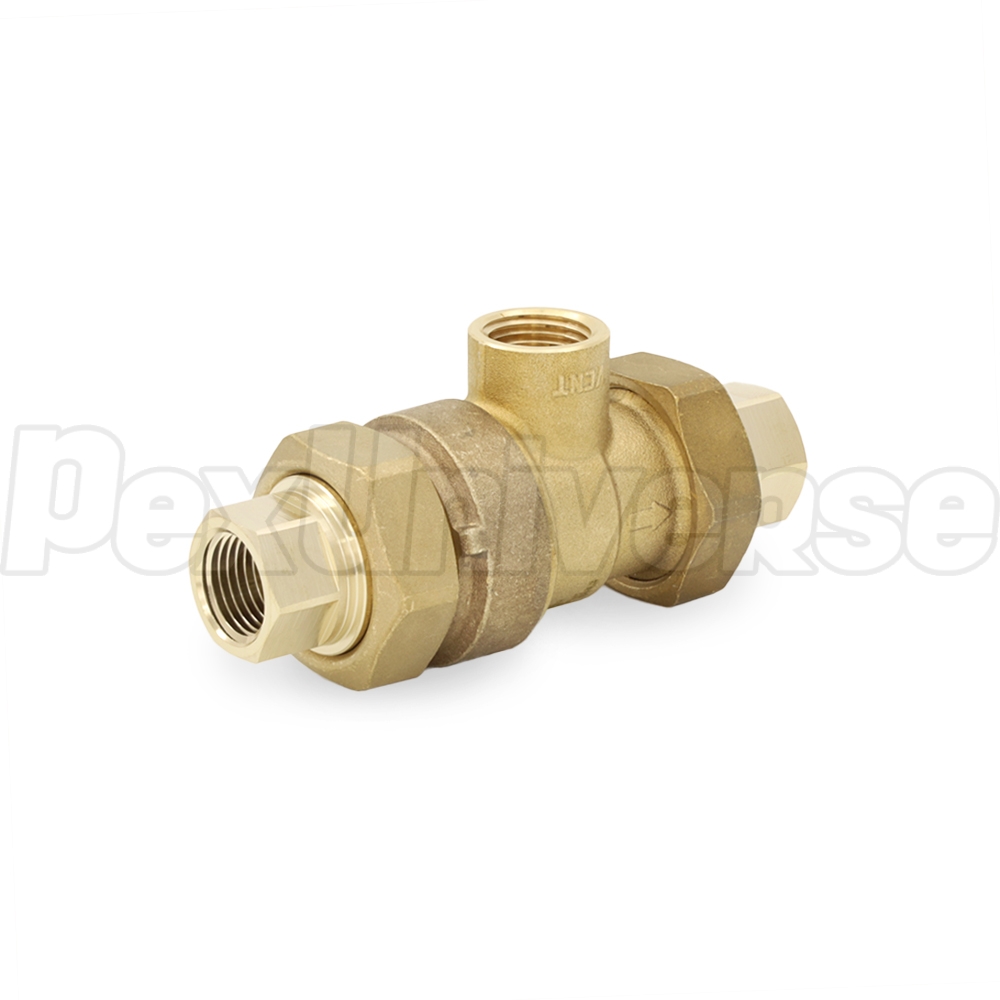

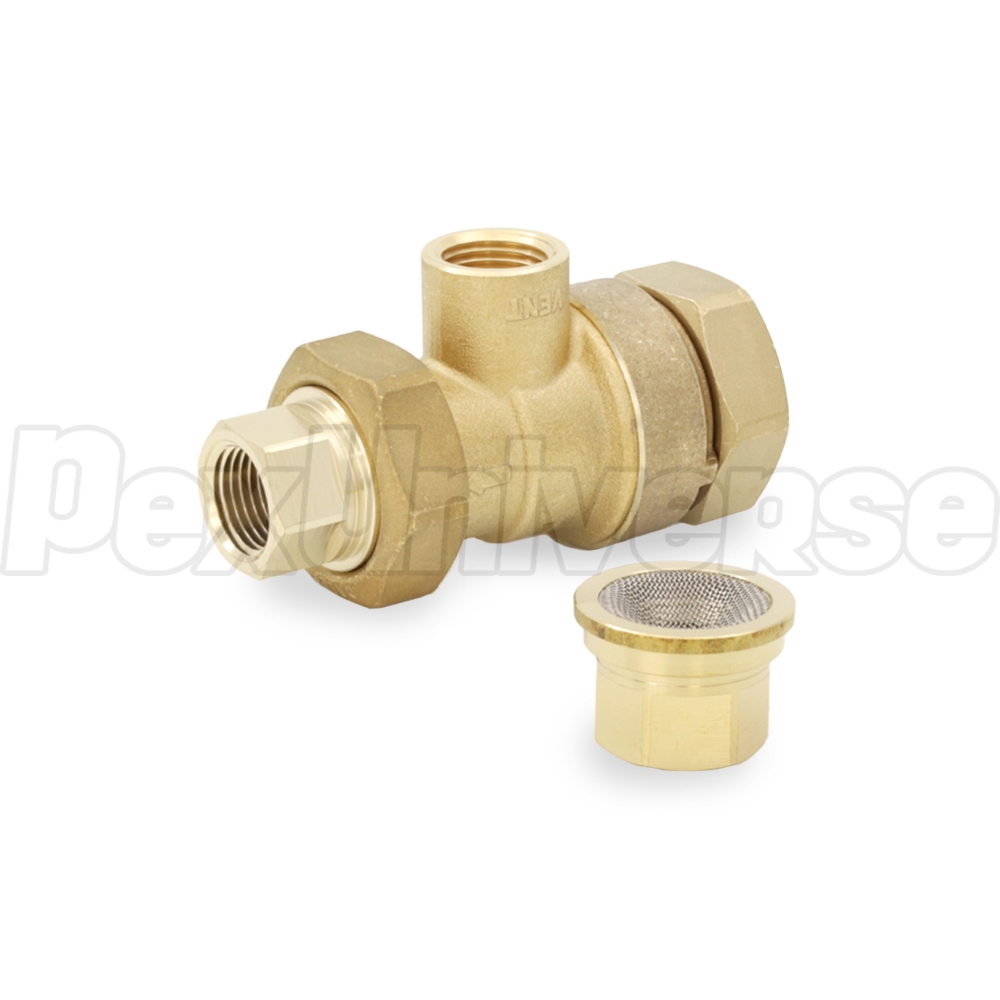

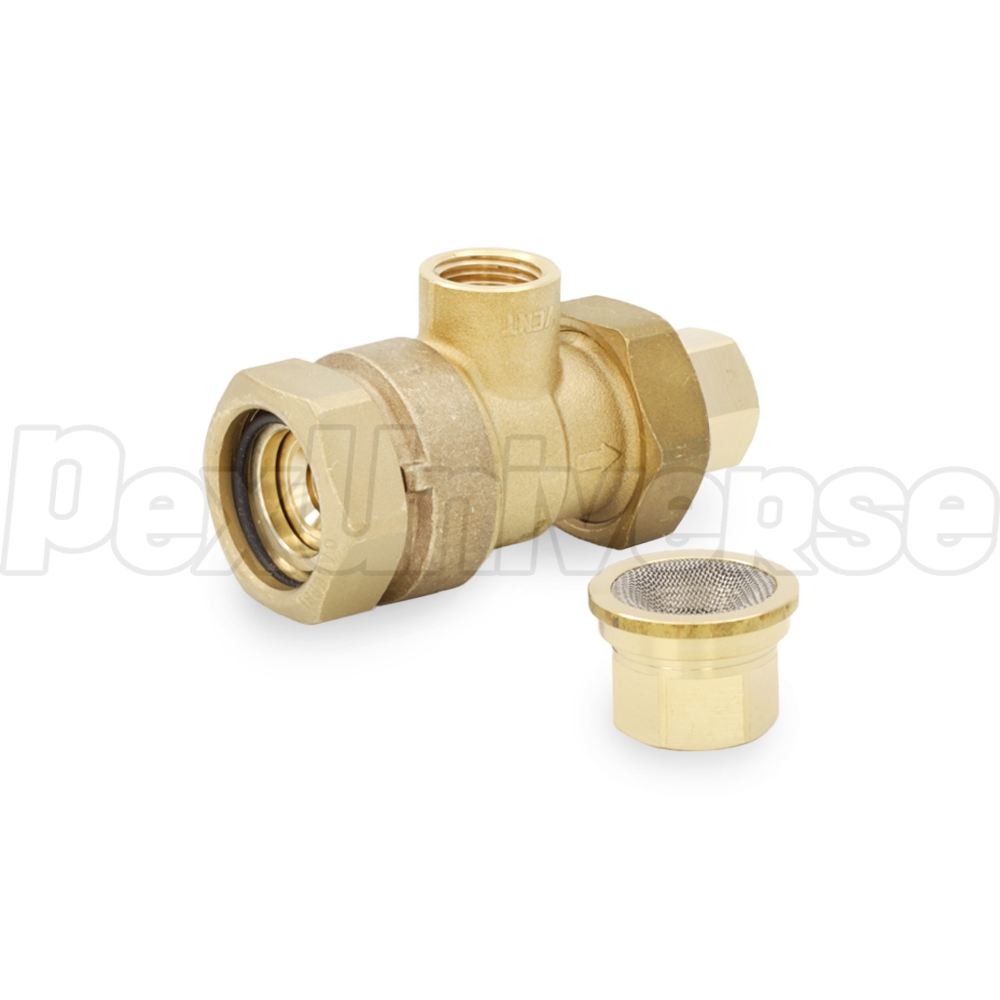

Caleffi 1/2" FNPT Union FlowShield Dual Check Backflow Preventer Valve w/ Atmospheric Vent, Lead-Free

1/2" FNPT Union FlowShield Dual Check Backflow Preventer Valve w/ Atmospheric Vent, Lead-Free

Brand: Caleffi
Part#: 573403A
Usually ships: Upon availability

Description

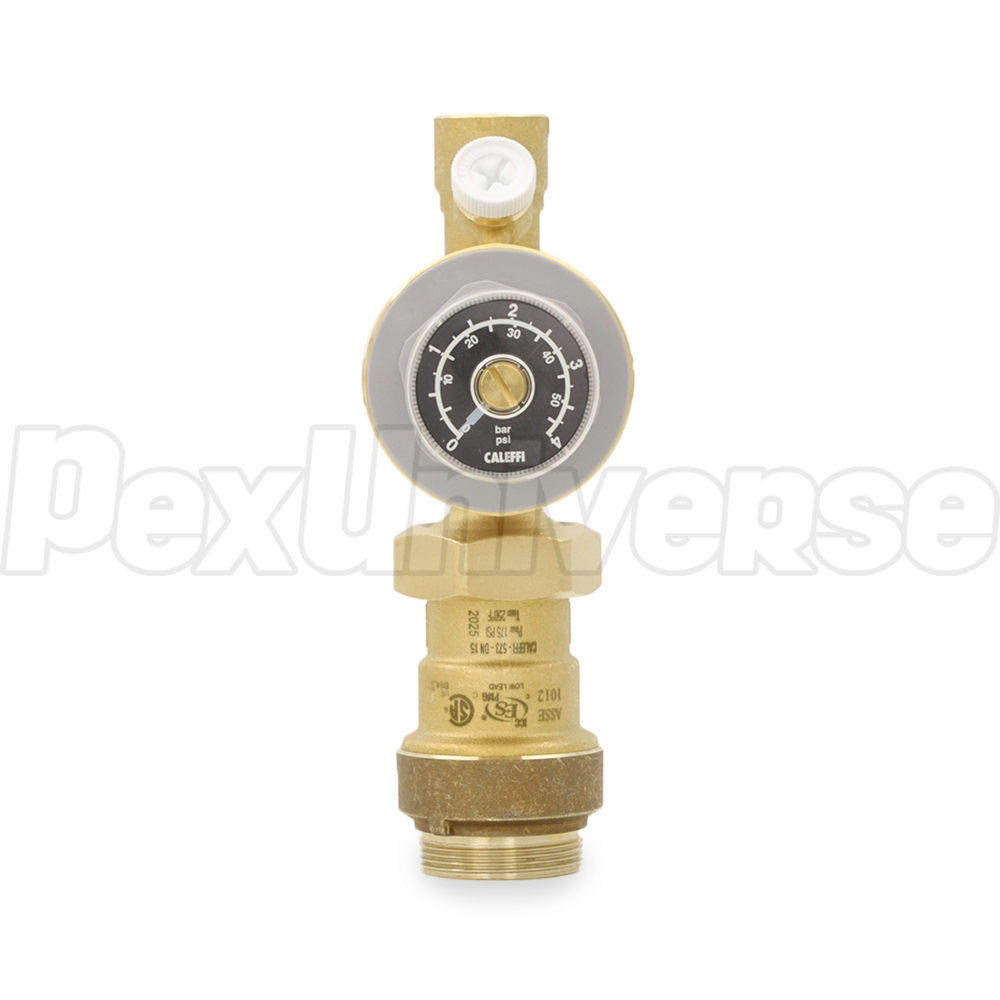

Caleffi FlowShield series dual check backflow preventer with atmospheric vent and 1/2" female NPT connections on both sides. Commonly installed with a pressure reducing valve (such as AutoFill series) and is intended for protecting drinking water supply side from cross-contamination caused by back pressure or back-siphon. The valve is suitable for pressures up to 175 psi and continuous water temperatures ranging from 32°F to 210°F, with emergency backpressure tolerance up to 250°F.
Made in Italy.

Technical Specifications:
  • Connections: 1/2" Female NPT threaded Union on sides, 1/2" FNPT on the bottom (vent)
  • Max Operating Pressure: 175 psi
  • Max Operating Temperature: 210°F
  • Suitable Fluids: Water
