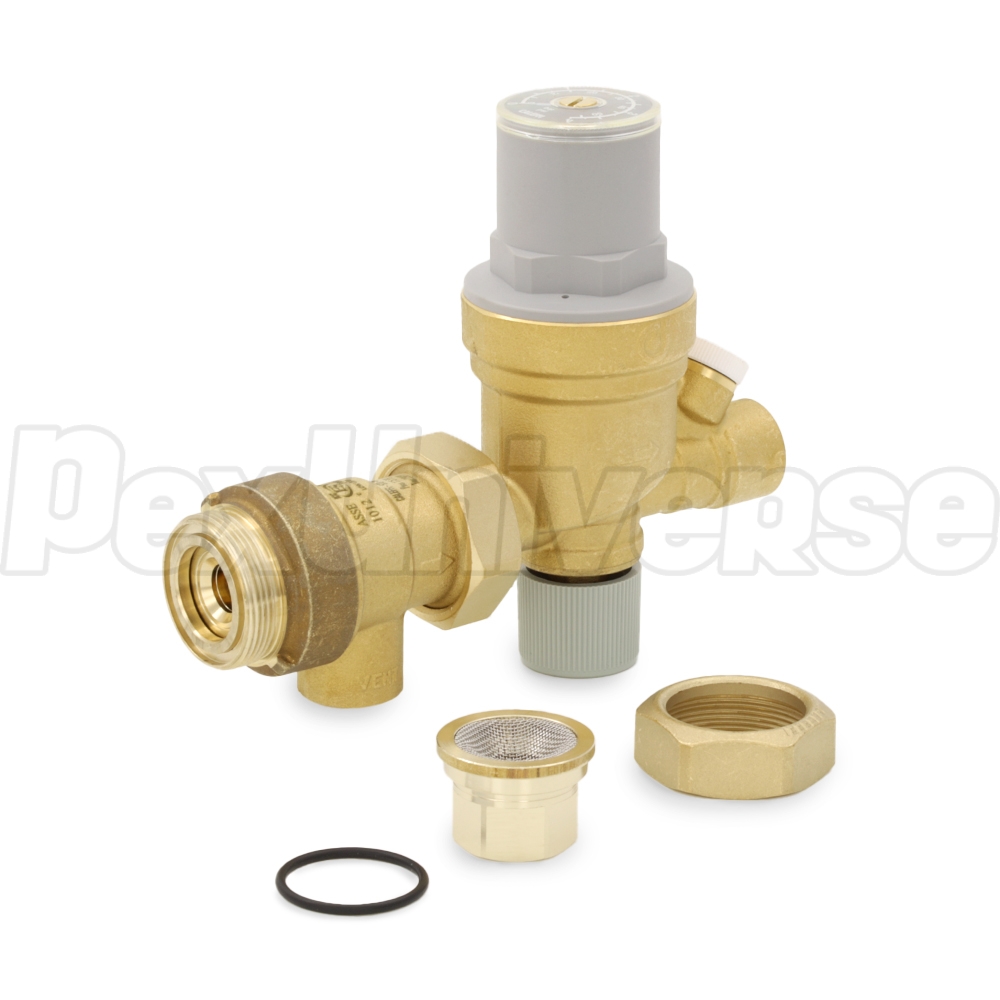

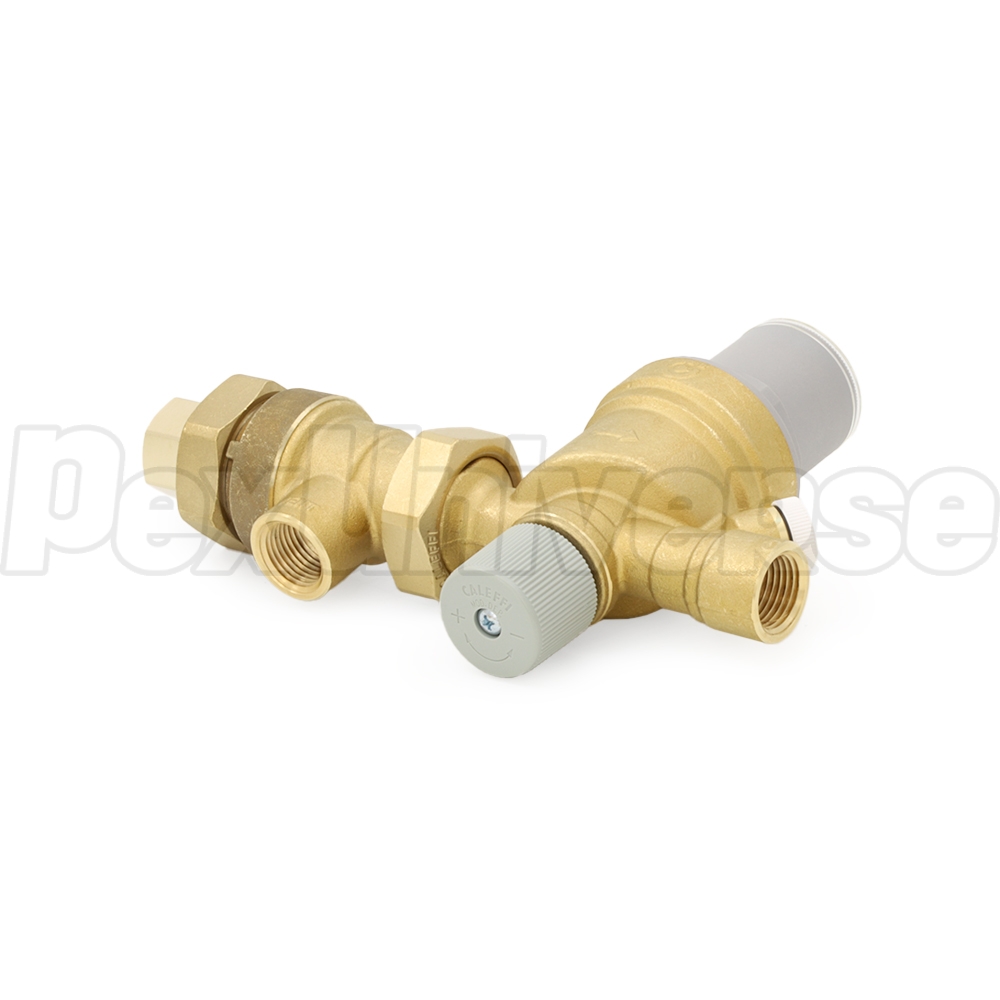

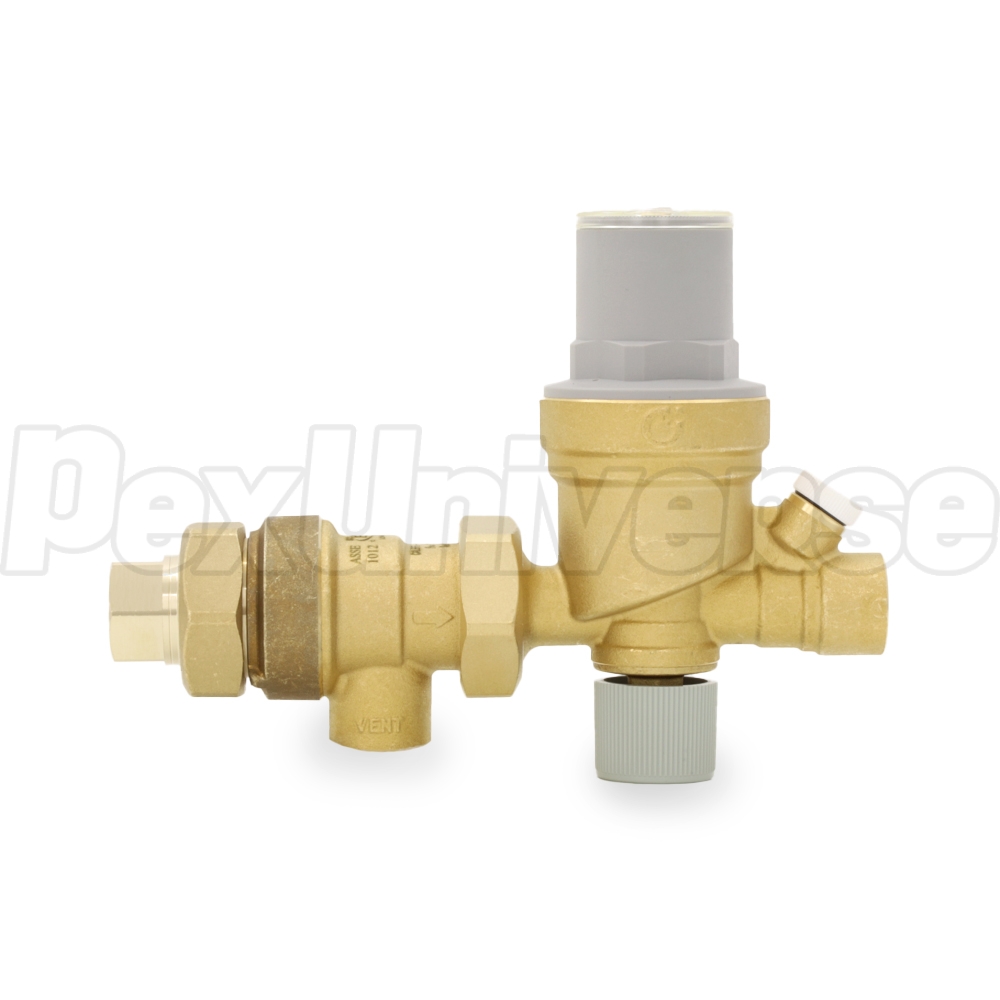

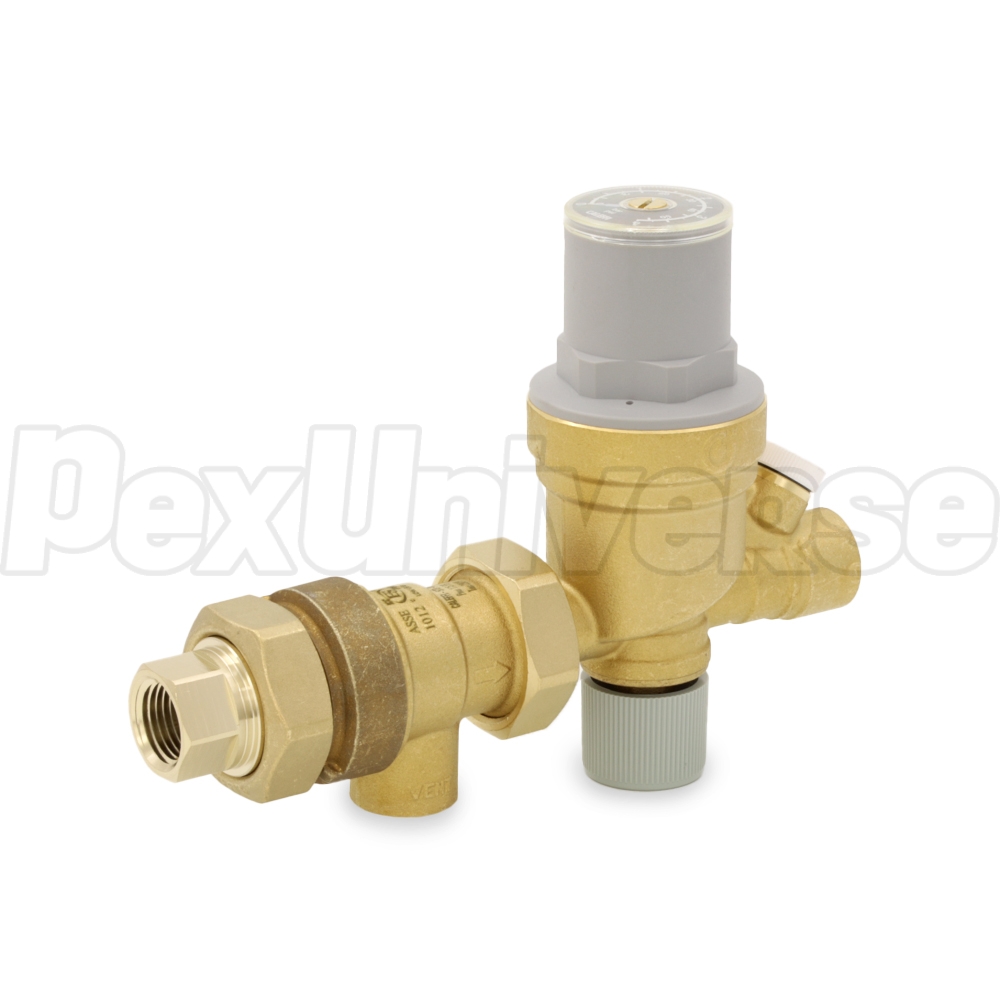

Caleffi 1/2" FNPT Union x FNPT, AutoFill Boiler Pressure Reducing & Backflow Preventer Valve Combo

1/2" FNPT Union x FNPT, AutoFill Boiler Pressure Reducing & Backflow Preventer Valve Combo

Brand: Caleffi
Part#: 573002A
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

Caleffi AutoFill boiler fill valve & FlowShield backflow preventer combo with 1/2" female NPT connections. Factory pre-set to 15 psi. Commonly used for cold water feed into a heating system.

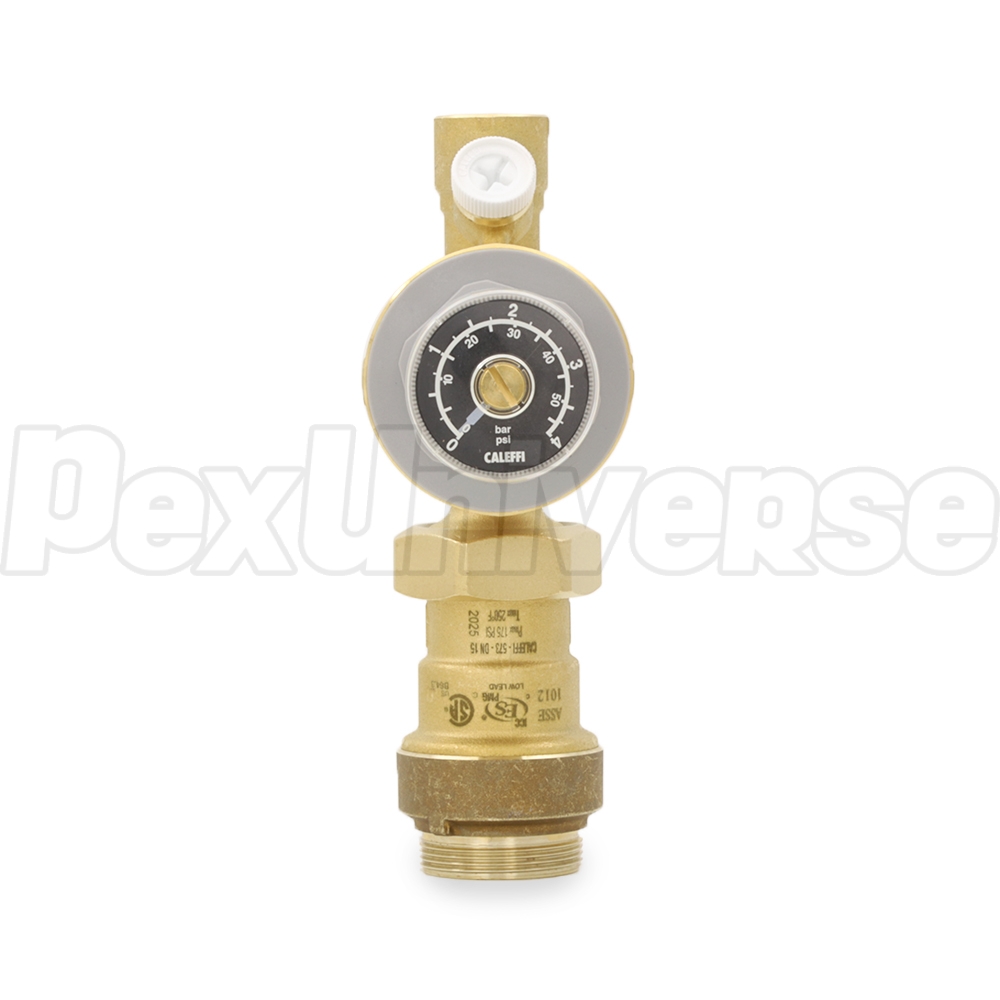

AutoFill valve is packed with features, including a 1/8" NPT oulet (capped off, for optional pressure gauge), visual pressure setting indicator (adjustable from the top with a standard flat head screwdriver), positive shut-off (round knob at the bottom), built-in & removable fine mesh screen/strainer, anti-scale internal components (prevents scale build-up) and many others.
Unlike with other boiler fill valves, where it is necessary to hold the fill lever open and wait until the system fills, Caleffi AutoFill feature automatically fills the system to the pre-set pressure.
FlowShield dual check valve with atmospheric air vent protects the potable water supply from cross-contamination caused by back-siphon or back pressure.
Made in Italy.

Technical Specifications:
  • Connections: 1/2" Female NPT Union Inlet x 1/2" Female NPT Outlet
  • Max Inlet (Supply Side) Pressure: 175 psi
  • Pressure Setting Range: 3 - 60 psi
  • Max Operating Temperature: 210°F
  • Factory Setting: 15 psi (± 2 psi)
  • Suitable Fluids: Water
