Caleffi 3/4" Press Union, AngleMix Angle Mixing Valve (Lead-Free) w/ Temperature Gauge, 95-150F

3/4" Press Union, AngleMix Angle Mixing Valve (Lead-Free) w/ Temperature Gauge, 95-150F

Brand: Caleffi
Part#: 520516A
In Stock
Pick Up ready by {{ pickupBy }}
Usually ready: within 1 hour

Description

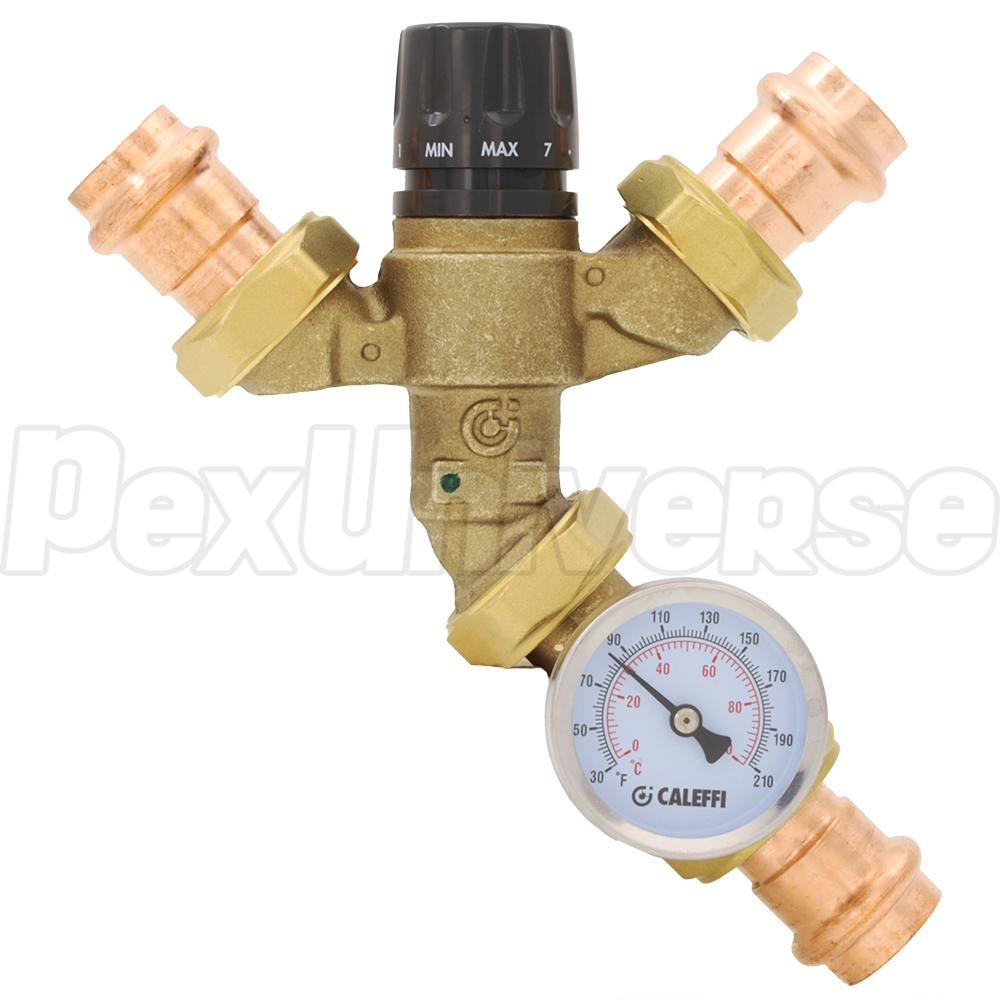

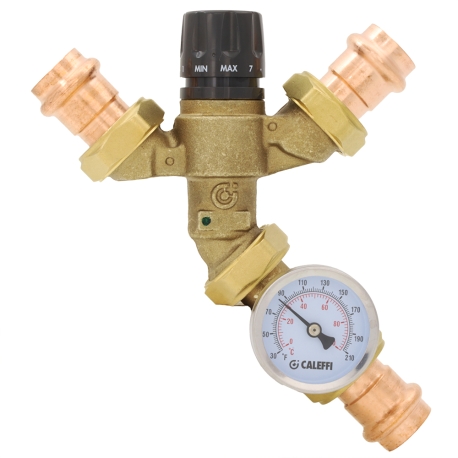

Caleffi AngleMix series themostatic mixing valve with temperature gauge and 3/4" copper press connections, designed for mixing of hot and cold water with precise temperature output in plumbing & heating systems.
While operating principle in AngleMix series is essentuially the same as in standard MixCal series, the inlets and outlets on the AngleMix valve are offset for easier piping.
The valve is made from lead-free brass (for potable water compliance), is easy to install and replace. Output water temperatuer range is adjustable between 85°F and 150°F.
On-board temperature gauge provides real-time outlet temperature monitoring for convenient adjustment.
Made in Italy.

Technical Specifications:
  • Connections: 3/4" Copper Press Union
  • Max Hot Water Inlet Temperature: 200°F
  • Temperature Setting Range: 85 - 150°F
  • Max Pressure: 200 psi (Working), 75 psi (Operating Differential)
  • Flow Rating: 3.0 Cv
  • Minimum Flow: 0 GPM for recirculating applications or 1 GPM (3.8 L/Min) for optimal performance
  • Accuracy of Outlet Temperature: ±3°F
  • Pressure Gauge Scale: 30 - 240°F
  • Suitable Fluids: Water, Glycol Solution (up to 30%)
