Caleffi 1" FNPT Quicksetter Balancing Valve w/ Flow Meter, 3.0-10.0 GPM

1" FNPT Quicksetter Balancing Valve w/ Flow Meter, 3.0-10.0 GPM

Brand: Caleffi
Part#: 132662A
Usually ships: Upon availability

Description

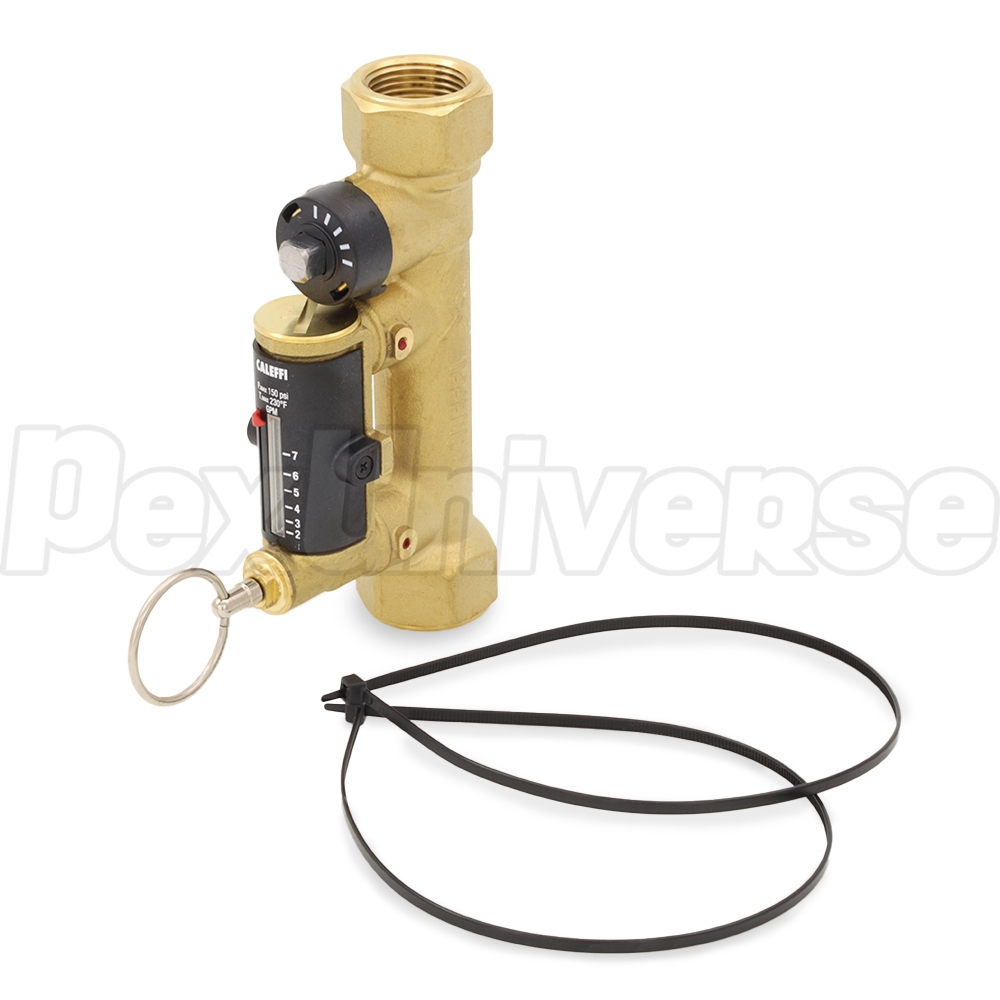

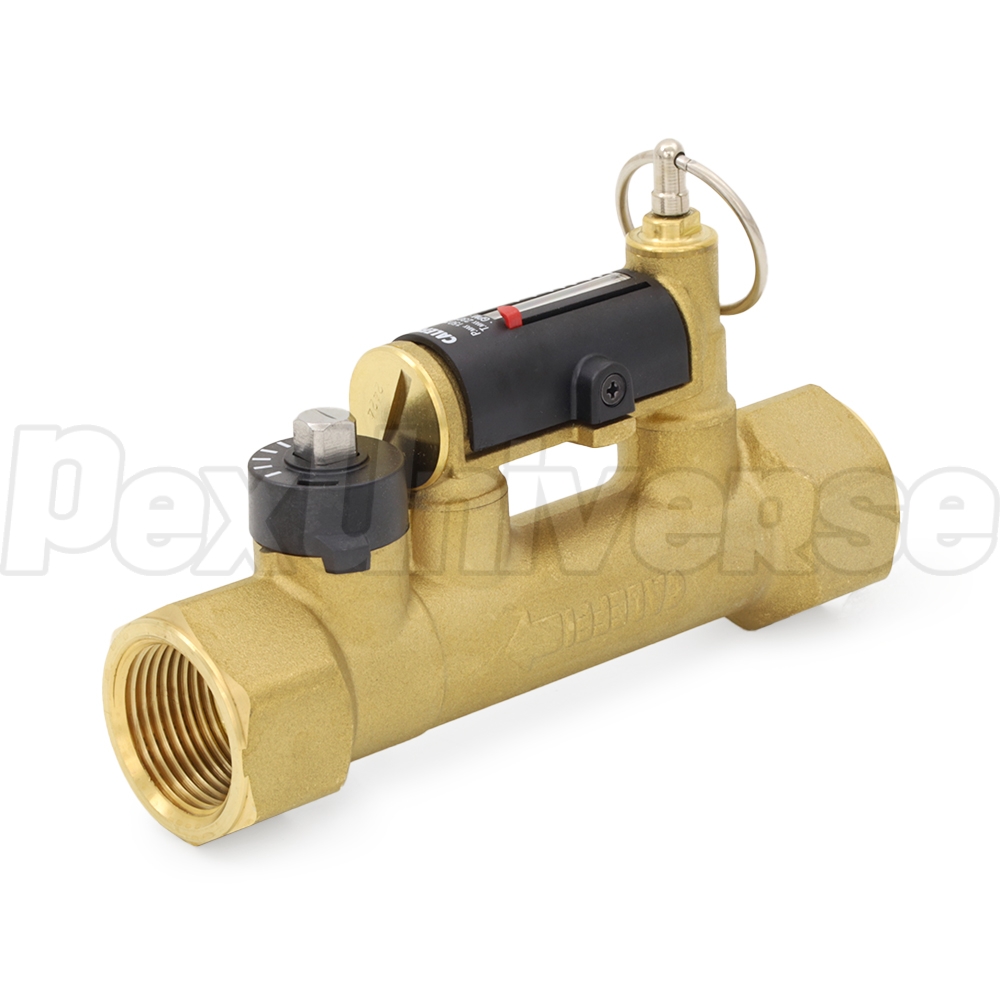

Quicksetter balancing valve with integrated flow meter and 1" female NPT threaded connections - engineered for quick, precise and tool-free balancing of heating and cooling circuits.
A visible flow scale with a metal ball indicator provides immediate and accurate reading in gallons-per-minute (GPM), while the balancing control stem allows effortless flow adjustment without the need for specialized tools.
The valve comes with a pre-formed insulation shell to optimize thermal performance and reduce energy losses.
Made in Italy.

Technical Specifications:
  • Connections: 1" Female NPT threaded
  • Adjustable Flow Rate: 3.0 - 10.0 GPM
  • Max Operating Pressure: 150 psi
  • Operating Temperature Range: 14 - 230°F
  • Flow Rating: 8.3 Cv (Full Open)
  • Accuracy: ±10%
  • Suitable Fluids: Water, Glycol Solution (up to 50%)
