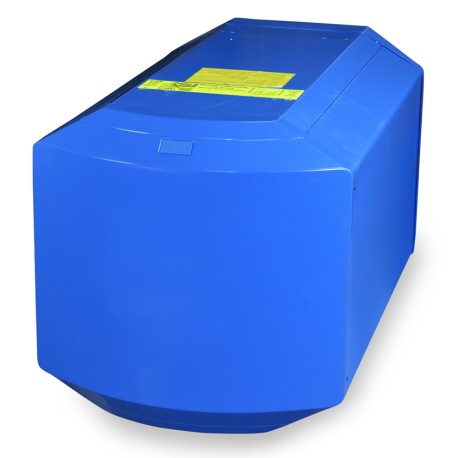

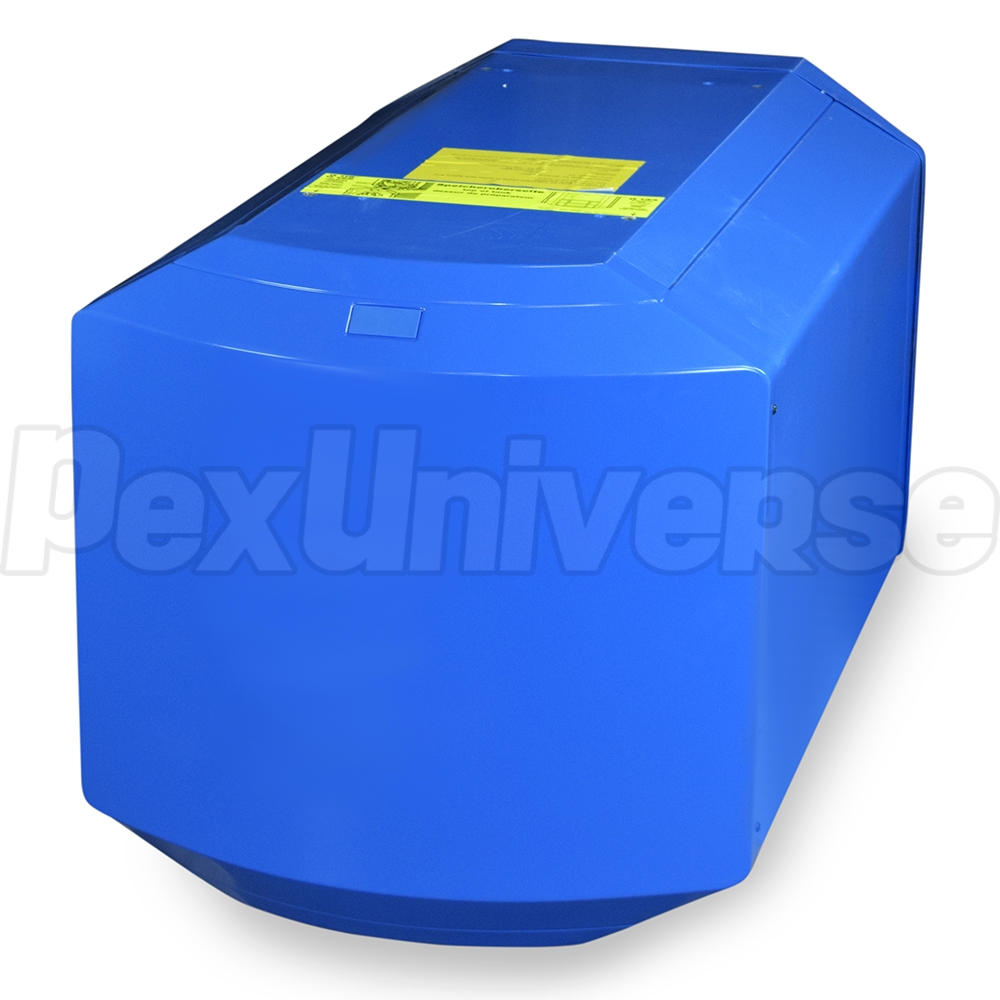

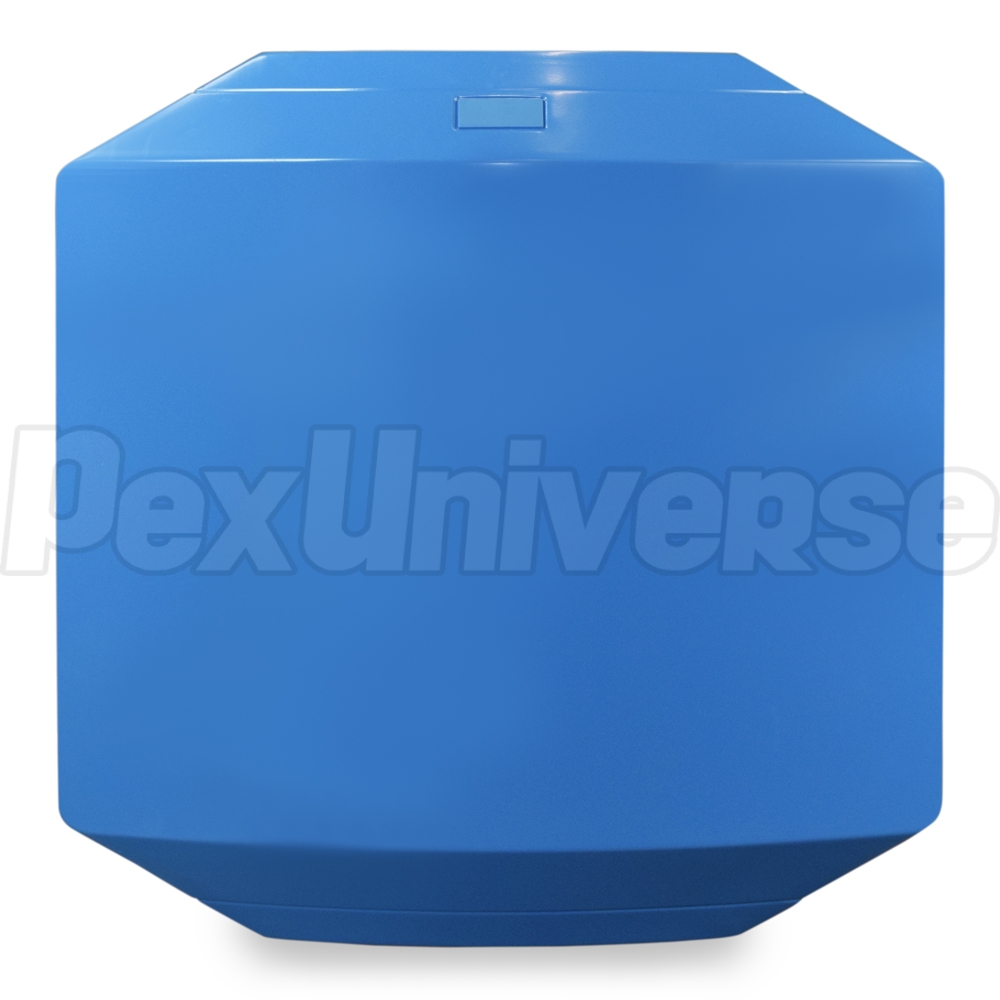

LT200 Horizontal Indirect Hot Water Heater, 52.5 Gal
Brand: Bosch
Part#: 8718573519
Model: LT200
This product has been discontinued. No direct replacement is available at this time.

Description

Buderus LT200 is a horizontal, single-coil indirect hot water tank with 52.5-gallon DHW capacity. It features Thermoglaze ceramic coating (on both tank and coil) and a magnesium anode rod for superior corrosion protection. Designed to fit under Buderus boilers for smaller footprint.

Note: if you are buying this water heater in conjunction with Buderus oil boiler (G115WS or G215 Series), make a note in the checkout and we will include mounting hardware free of charge.

Technical Specifications:
  • Domestic Water Capacity (Gallons): 52.5
  • Heat Exchanger Type: Single Coil
  • Domestic Hot Water (DHW) Connection: 1" NPT
  • Domestic Cold Water Connection: 1-1/4" NPT
  • Boiler (Heat Exchanger Coil) Connections: 1" NPT
  • Hot Water Recirculation Connection: 3/4" NPT
  • Max DHW Temperature: 203°F
  • Max DHW Operating Pressure: 150 psi
  • Max Boiler Water Temperature: 212°F
  • Max Boiler/Heat Exchanger Coil Side Pressure (psi): 232
  • Stand-by Heat Loss (°F/hr): 0.6
  • Continuous Domestic Hot Water Flow (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 128.0
  • 1st Hour Rating (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 176.0
  • Min. Boiler Output (BTU): 82,000
  • Min. Boiler Water Flow Rate (GPM): 14.0
  • Dimensions (Diameter x Height x Length): 25-3/4" x 25-3/4" x 42-1/4"
  • Empty Weight (lbs): 247.

Warranty:
6-year limited tank warranty for Residential Application / 2-year limited tank warranty for Commercial Application
