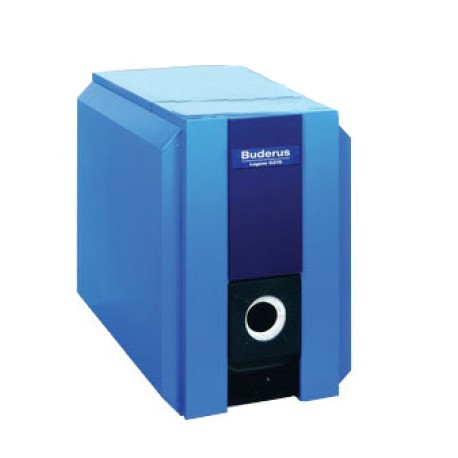

G215/5 Logano Thermostream Oil-Fired Boiler, 180,000 BTU Buderus

G215/5 Logano Thermostream Oil-Fired Boiler, 180,000 BTU

Brand: Buderus

Part#: 7738000113

Model: G215/5

(Check qty)

Usually ships: within 2-3 business days

Description

Buderus G215/5 Logano series model is Energy Star listed, floor-standing, 5-section, residential oil-fired boiler with 87% AFUE and 180,000 BTU (Net) rating. New Thermostream technology allows for unrestricted return water temperature and eliminates thermal shock.
Includes B-Kit comprised of burner mounting bolts set, supply manifold (1-1/2" x 1-1/2" x 1/4"), 1-1/4" x 3/4" black bushing, 1" black plug, 3/4" black 90° elbow, boiler drain, 30 psi relief valve and tridicator gauge.

Note: burner kit sold separately.

For use with part# 7738004866 chimney vent KP kit (includes Riello F10 oil burner, Grundfos circulator w/ IFC, Hydrolevel Hydrostat 3250 control and 3ft flexible oil line).

Note: if you are buying this boiler in conjunction with LT Series indirect water heater, make a note in the checkout and we will include mounting hardware free of charge.

Technical Specifications:

DOE Rating (BTU): 207,000
Net IBR Rating (BTU): 180,000
Oil Firing Rate (GPH): 1.7
Efficiency (AFUE): 86.1%
Boiler Type: Non-Condensing (cast-iron heat exchanger)
Number of Sections: 5
Fuel Type: #2 Oil
System Type: Hydronic (Hot Water)
Boiler Connections: 1-1/2" NPT
Max. Working Pressure: 58 psi
Max. Output Water Temperature: 194°F
Vent Size: 6"
Vent Material: Regular Chimney Pipe or Flexible Stainless Steel (see Literature for tips & details)
Mounting Type: Floor-standing
Dimensions (Depth x Width x Height): 35-3/4" x 23-1/2" x 34-3/4"
Recommended Clearance: 15" side, 20" rear
Weight (lbs): 600
Water Volume (gallons): 19.3.
