1/2" PEX adapters are included by default. For other size adapters (free upgrade - 3/8" PEX, 5/8" PEX or 1/2" PEX-AL-PEX) make a note at checkout.

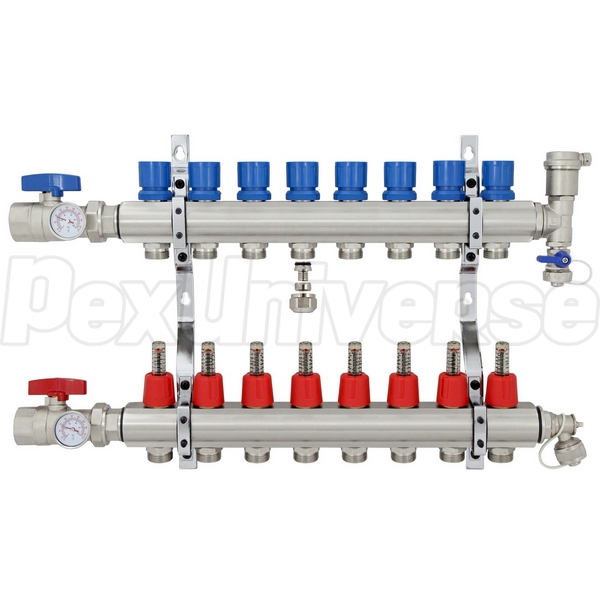

8-branch Deluxe Radiant Manifold Set. Brass body and components with nickel plated finish.
The following components are included in every set:

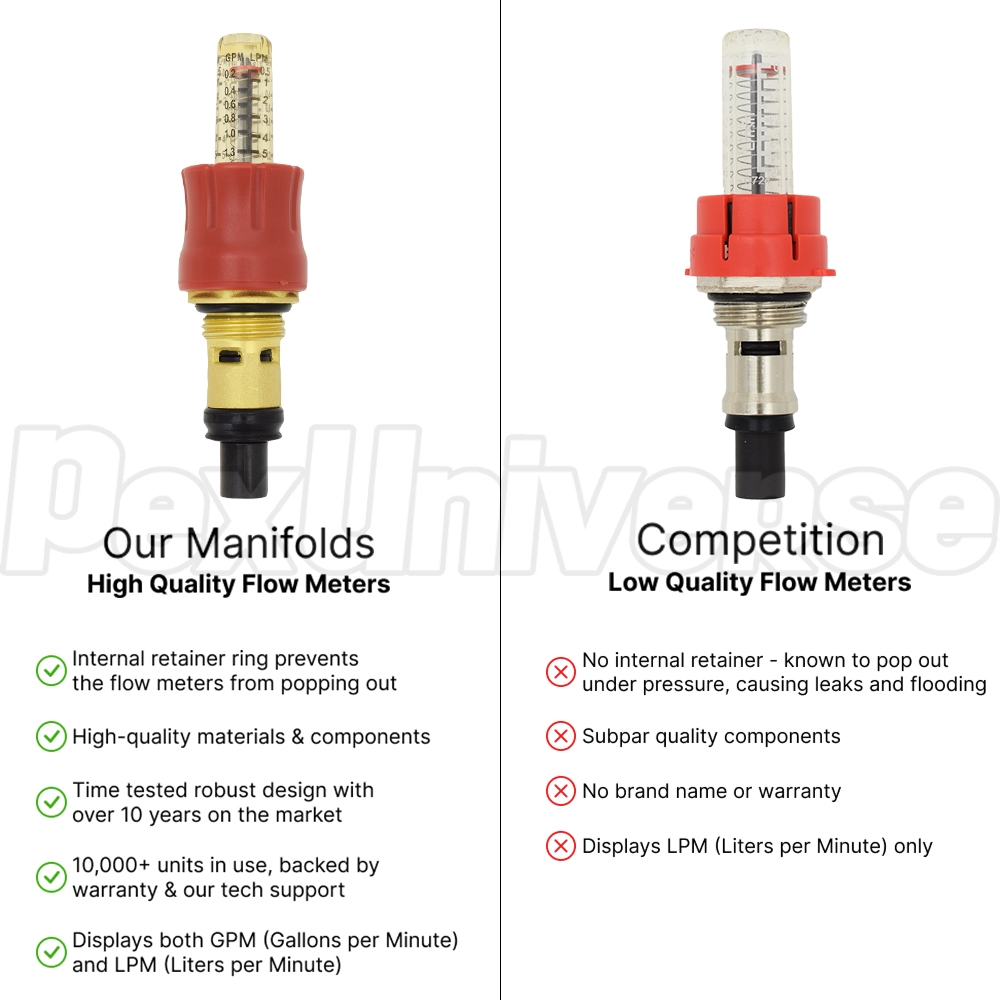

(1) Supply side radiant manifold w/ (8) flow indicators and (8) outlets for PEX tubing.
(1) Return side radiant manifold w/ (8) manual balancing valves and (8) outlets for PEX tubing.
(2) 1" threaded shut off valves w/ 1/4-turn handles - one for supply and one for return manifold (red & blue).
(2) Temperature gauges - one for supply and one for return manifold to monitor supply and return water temperatures.
(1) Float-type air vent to eliminate air from the system (air vent caps included for pressure testing purposes).
(2) All-in-one drain & fill valves with 3/4" garden hose (drain hose) connection and a cap - on each manifold.
(16) Compression adapters for 1/2" PEX tubing - included, no purchase necessary. Adapters of other sizes (3/8", 5/8") can be purchased separately.
(2) Wall mounting brackets.
Other suggested components:
For pressure testing purposes, use a Pressure Test Kit (SKU# TESTKIT)
Technical Specifications: - Total number of PEX outlets: 16
- Distance OC (On Center) between PEX outlets: 2"
- Overall height when installed: 14.5"
- Overall width when installed (with shut-off valves): 24.75"
- Distance between supply and return manifolds (on center): 8.25"
- Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)
Verified
Purchase
4-branch Brass Radiant Heat Manifold Set w/ 1/2" PEX adapters The manifolds arrived quickly and were well packaged. I compared these to some of the more expensive manifolds on the market and I have to say I made the right choice. The fit/finish is very good and overall I feel a great value. Let's face it once setup your going to forget about it. I have already installed them in a on slab concrete floor and they are working very well.
Zones: 4
By Verified Buyer (from Nebraska) on
02/10/2016
PEX MANIFOLD ASSEMBLY CAN'T BEAT THE QUALITY AND TIME SAVED IN ASSEMBLING ALL THE COMPONENTS YOURSELF! THIS WILL BE USED TO CONTROL TEMP. IN A CONCRETE FLOOR SLAB ON GRADE
Zones: 4
By Lee Tripp (from Corry',PA) on
09/20/2012
Easy Easy installation and good quality product.
Zones: 5
By Gaetan (from St-Malo, Qc) on
08/02/2011
Verified
Purchase
Good stuff As expected
Zones: 4
By John (from Little hocking, OH) on
12/06/2024
Verified
Purchase
manifold Looks good ?
Zones: 12
By Michael H (from Houghton lake, MI) on
05/21/2022
Verified
Purchase
Brass manifold At half the price of a watts and comes with nuts and shutoff. quality machine work. All works as it should.
Zones: 3
By matthew (from Franklin, WI) on
12/01/2021
Verified
Purchase
Excellent Well designed and works great.
Zones: 4
By Arnold (from Mukilteo, WA) on
10/30/2021
Verified
Purchase
Brass manifold header Excellent product. O rings damage easily on installation; buy extra o rings!
Zones: 4
By SANTO (from Clarence, NY) on
03/30/2021
Verified
Purchase
Great quality This unit is very well made.
Zones: 3
By Darren (from Harrisburg, SD) on
08/15/2020
Verified
Purchase
Great Very nice
Zones: 4
By Edward (from Maryland heights, MO) on
05/15/2020
Verified
Purchase
A+++ Great price, very well built product, everything you could ask for!
Zones: 4
By Ryan (from Saint johns, MI) on
04/11/2020
Verified
Purchase
3zone manifold Very well built. Came with everything other brands charge you extra. Priced well.
Zones: 3
By Gerard (from Bloomfield, NJ) on
02/25/2020
Verified
Purchase
Look nice and appear to be well made. I have not installed the units yet but they look very nice and look well made.
Zones: 6
By Brian (from Niagara falls, NY) on
05/14/2019
Verified
Purchase
Top quality Very heavy duty and great price
Zones: 4
By Deborah (from Fairmont, WV) on
04/12/2019
brass manifold set appears to be an excellent product with quality machining, but have not put it in use as yet.
Zones: 6
By George P. (from Illinois) on
03/16/2013
Ask a Question
I'm putting in Radiant Heating in a slab on grade. It is at the long beach Wa area andwant to know if I should use a SS or a Brass Manifold. I'm on a well with soft water.
There is no significant difference between the SSM (stainless) and BSM (brass) PEX manifolds other then the material and thickness of the manifolds. The stainless steel manifolds are more appropriate for applications where water quality is under question and therefore, are more popular. Brass ones have thicker walls, more heavily-built and are overall better looking.
By PexUniverse Customer Service on 02/06/2013
Can these be used with cast iron radiator heat (hot water)?
They can, if the supply temperature does not exceed 158F. Also, we strongly recommend you install a fine mesh strainer on the supply side of the manifold to prevent accumulation of sediment and rust particles (from radiators) inside the manifold. For radiators, we also suggest using 5/8" PEX instead of typical 1/2".
By PexUniverse Customer Service on 10/22/2019
What's the maximum pressure these manifolds can be air tested?
General guidelines is x3 times the maximum operating pressure but no greater than 100 psi and at least 40 psi. Duration is 30 minutes minimum, 2 hours recommended. Note that initially the pressure may drop somewhat due to flexibility of PEX, but the system should become balanced within the first 30 minutes and there should be no pressure drop afterwards if there's no environment temperature change.
By PexUniverse Customer Service on 07/17/2017
will these work with wirsbro 1/2 hepex
Yes, these manifolds work with all PEX and PEX-AL-PEX tubing types.
By PexUniverse Customer Service on 12/23/2013
