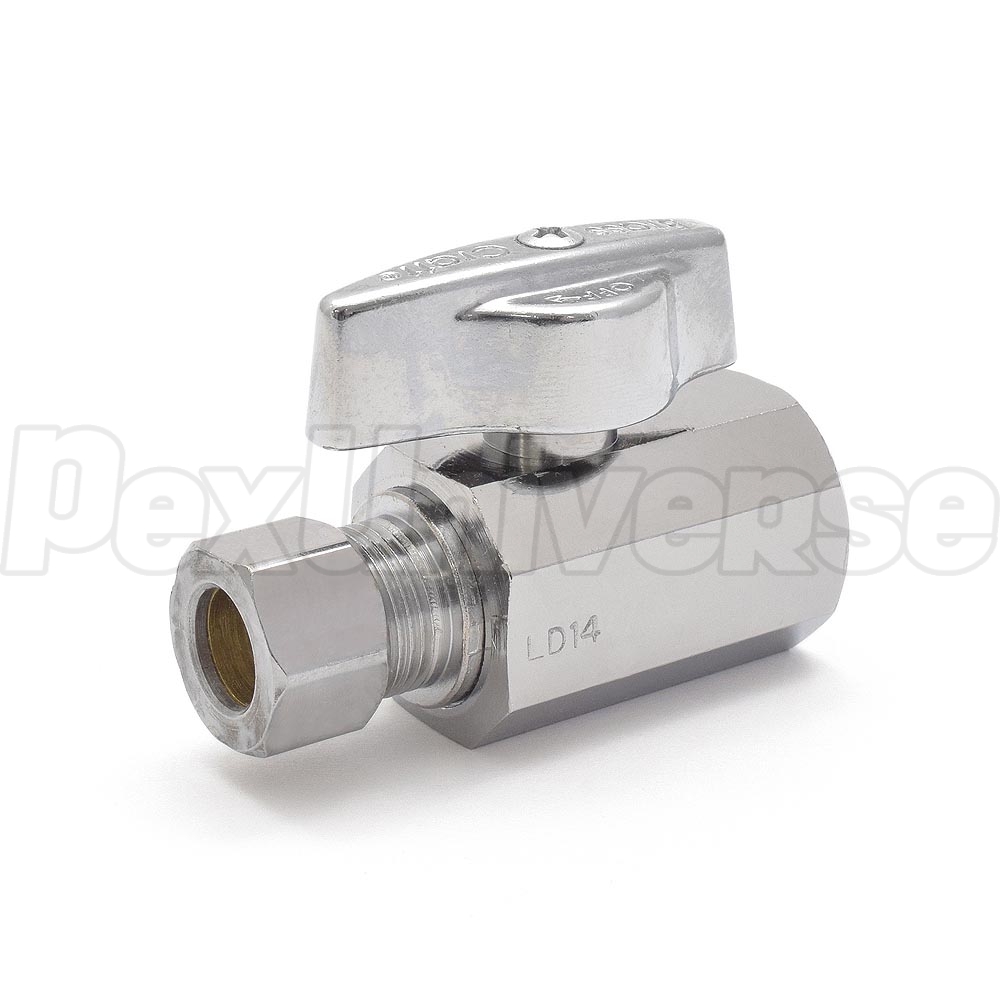

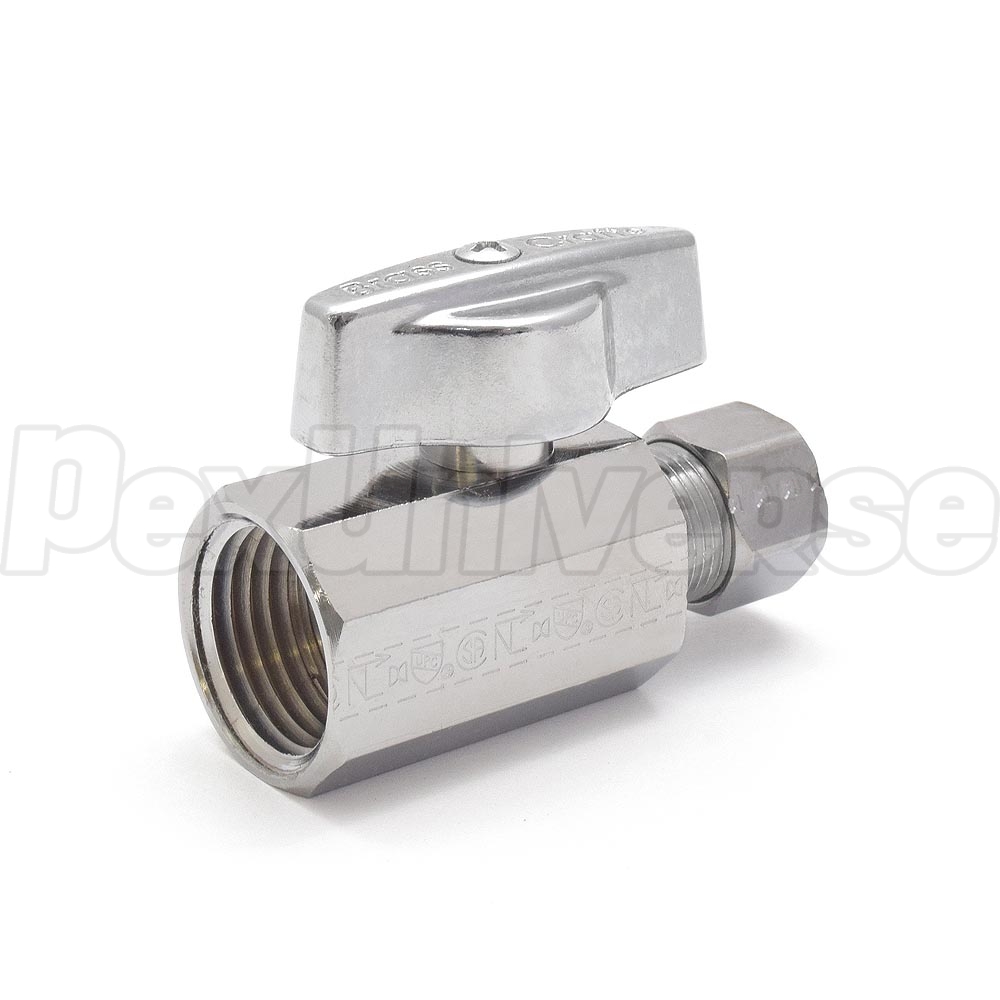

1/2" FIP x 3/8" OD Compr. Straight Stop Valve (1/4-Turn), Lead-Free BrassCraft
1/2" FIP x 3/8" OD Compr. Straight Stop Valve (1/4-Turn), Lead-Free BrassCraft
1/2" FIP x 3/8" OD Compr. Straight Stop Valve (1/4-Turn), Lead-Free BrassCraft
1/2" FIP x 3/8" OD Compr. Straight Stop Valve (1/4-Turn), Lead-Free BrassCraft
1/2" FIP x 3/8" OD Compr. Straight Stop Valve (1/4-Turn), Lead-Free
Brand: BrassCraft
Part#: KTR12X-C
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$8.95 / each
$86.50 box of 10
($8.65 each)
Add to Cart
Orders over $99 ship free

Description

BrassCraft KT series 1/4-Turn Ball Female Iron Pipe Inlet (Compression Outlet) Straight Stop Valve. KT series ball stop valves can be used for recirculating water in systems that produce continuous use temperatures above 115°F.

Materials of Construction:
  • Valve Body: Compliant brass;
  • Stem: Compliant brass, plated;
  • Seats: PTFE;
  • Ball: Compliant brass, precision machined;
  • Stem O-ring: Viton & Nitrile;
  • Handle: Zinc die cast;
  • Handle Screw: Zinc-plated steel;
  • Compression Sleeve: C36000 brass;
  • Compression Nut: C36000 brass.

Features:
  • Precision-machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation without freeze ups even after long periods of non-use
  • TWO high-performance o-rings withstand high temperatures and corrosion from harsh water environments
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Blow-out proof brass stem is assembled from the inside out with two o-rings to ensure safe, reliable performance
  • Plated stem provides corrosion resistance and prevents o-ring damage after long periods of non-use
  • Patented, chrome plated metal handle is designed for durability, corrosion resistance & a sleek appearance
  • Easy-to-remove handle with screw attachment protects accidental stop operation during rough-ins
  • 100% leak tested
  • Compliant KT Stops available for California and Vermont “low-lead” requirements.

Technical Specifications:
  • Closing: 1/4 Turn
  • Inlet: 1/2” Female Threaded
  • Outlet: 3/8” OD (1/4"" Nominal) Compression
  • Valve Type: Straight
  • Temperature: 40°F to 180°F
  • Maximum Pressure: 125 PSI.
Write a Review
Helpful? Yes 1 No
Verified Purchase
And suddenly...
Retail outlets that used to stock this, don't anymore. A cheaper, plastic internal parts version is now stocked that operates at lower temperatures and a seemingly smaller diameter for lower flow. Perhaps this last point is my poor perception, but when I hold both valve types up to the light, this version seems to be a slightly larger diameter valve ball through hole.
By Peter (from Lowell, MA) on 03/02/2019
