48 Gal, Defender High-Recovery Power Direct Vent Water Heater (NG), 6-Yr Wrty Bradford White
48 Gal, Defender High-Recovery Power Direct Vent Water Heater (NG), 6-Yr Wrty
Brand: Bradford White
Part#: RG2PDV50H6N
Usually ships: within 3-5 business days

Description

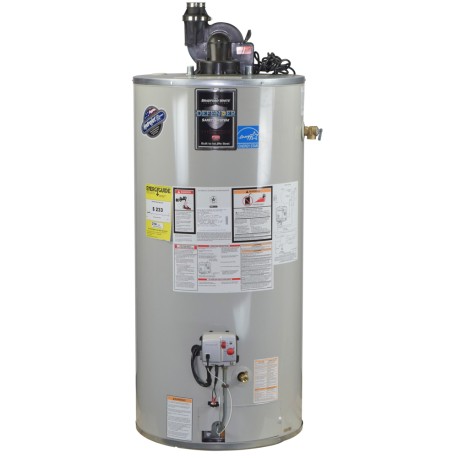

Bradford White RG2PDV50H6N model is a natural gas (NG), high-recovery 48-gallon power direct vent water heater with 6-year warranty. Energy Star qualified. Comes with T&P relief valve.

Features:
  • Energy Star qualified
  • Intelligent gas control with spark to pilot ignition eliminates standing pilot
  • Horizontal and vertical venting with PVC, CPVC or ABS
  • Defender FVIR system w/ ScreenLok flame arrestor prevents ignition of flammable vapors outside the water heater
  • Vitraglas enamel lining helps to extend tank life
  • Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
  • 2" Non-CFC foam covers the sides of the tank, reducing heat loss
  • Factory-installed heat traps reduce stand-by heat loss
  • Protective magnesium anode rod.

Technical Specifications:
  • Fuel: Natural Gas (NG)
  • Nominal Capacity (Gallons): 48
  • Rated Storage Volume (Gallons): 46
  • Input (BTU): 60,000
  • Uniform Energy Factor: 0.69
  • Recovery Efficiency: 78%
  • 1st Hour Rating (Gallons): 95
  • Recovery Rise @90° F (GPH): 65
  • NOx Emissions: less than 40ng/J
  • Water Connections: 3/4" NPT
  • Gas Connection: 1/2" NPT
  • Side Connections: 3/4" NPT
  • Max Working Pressure: 150 PSI
  • Ignition Type: Electronic
  • R-Value: 16
  • Vent Type: Power Direct
  • Vent Size: 3" or 4"
  • Vent Material: PVC, ABS, CPVC
  • Max Vent Run: 60ft (for 3")
  • 100ft (for 4")
  • Power Supply: 110V, 60Hz
  • LEED Ratio: 1
  • Dimensions (Diameter x Height): 22" x 69"
  • Weight (lbs): 204
  • Insulation System: 2".

Warranty:
6-year limited tank warranties / 6-year limited warranty on components parts
