40 Gal, TTW Defender Power Vent Short Water Heater (NG), 6-Yr Wrty Bradford White
40 Gal, TTW Defender Power Vent Short Water Heater (NG), 6-Yr Wrty
Brand: Bradford White
Part#: RG1PV40S6N
Usually ships: within 5-6 business days

Description

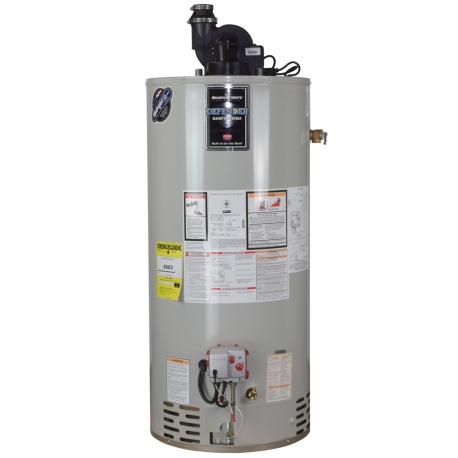

Bradford White RG1PV40S6N model is a 40-gallon, natural gas (NG) short power vent residential water heater with 6-year warranty.

Features:
  • Defender FVIR system w/ ScreenLok flame arrestor prevents ignition of flammable vapors outside the water heater
  • Vitraglas enamel lining helps to extend tank life
  • Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
  • Powerful & quiet blower motor (120V) with 10ft cord resists powerful outdoor winds and offers more installation flexibility
  • Horizontal and vertical venting with PVC, ABS or CPVC
  • Non-CFC foam covers the sides and top of the tank, reducing heat loss
  • Factory-installed heat traps reduce stand-by heat loss
  • Sight window allows to observe operation of pilot and burner
  • Protective magnesium anode rod

Technical Specifications:
  • Fuel: Natural Gas (NG)
  • Nominal Capacity (Gallons): 40
  • Rated Storage Volume (Gallons): 38
  • Input (BTU): 40,000
  • Uniform Energy Factor: 0.63
  • Recovery Efficiency: 80%
  • 1st Hour Rating (Gallons): 71
  • Recovery Rise @90° F (GPH): 43
  • NOx Emissions: less than 40ng/J
  • Water Connections: 3/4" NPT
  • Gas Connection: 1/2" NPT
  • Max Working Pressure: 150 PSI
  • Ignition Type: Electronic
  • R-Value: 8
  • Vent Type: Power
  • Vent Size: 2" or 3"
  • Vent Material: PVC, ABS, CPVC
  • Max Vent Run: 50ft (for 2"), 120ft (for 3")
  • LEED Rating: 1
  • Power Supply: 120V, 60Hz
  • Dimensions (Diameter x Height): 20" x 57-5/16"
  • Weight (lbs): 140

Warranty:
6-year limited tank warranties / 6-year limited warranty on components parts
