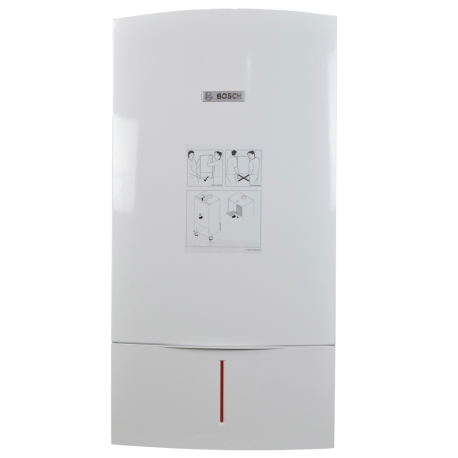

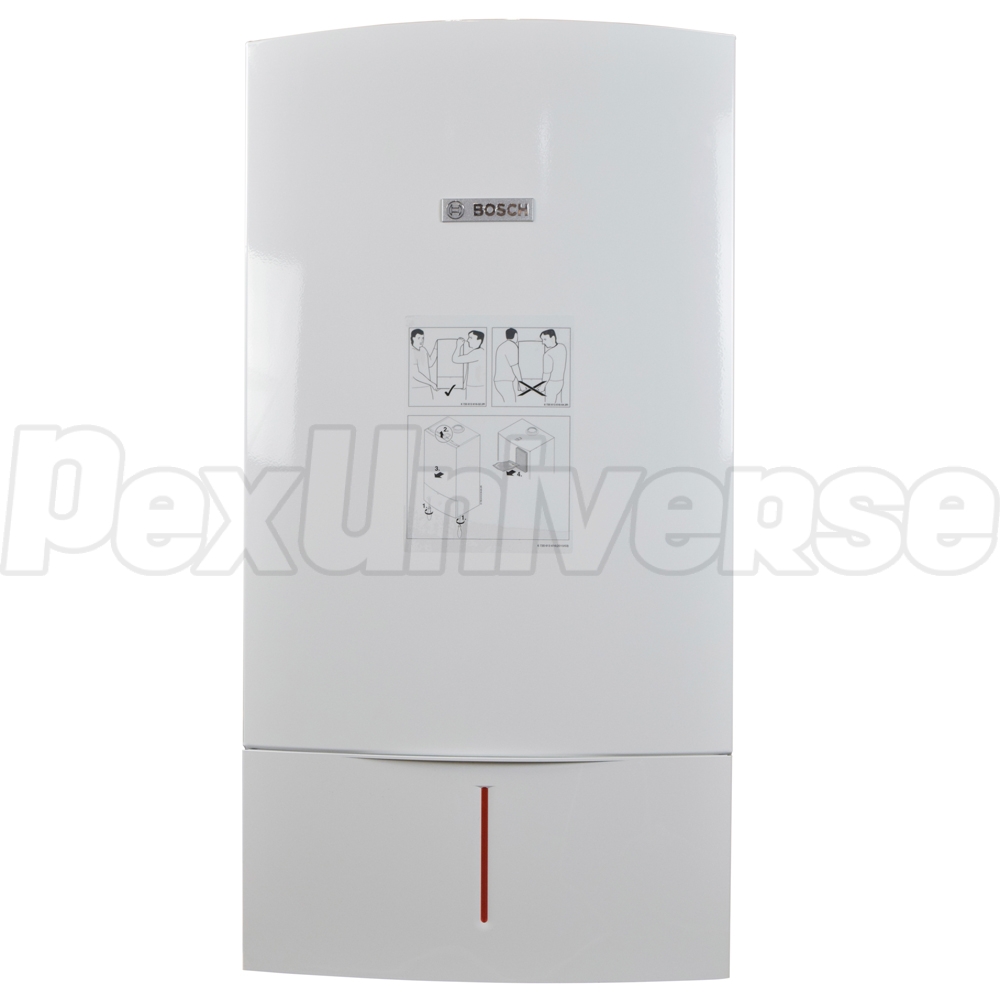

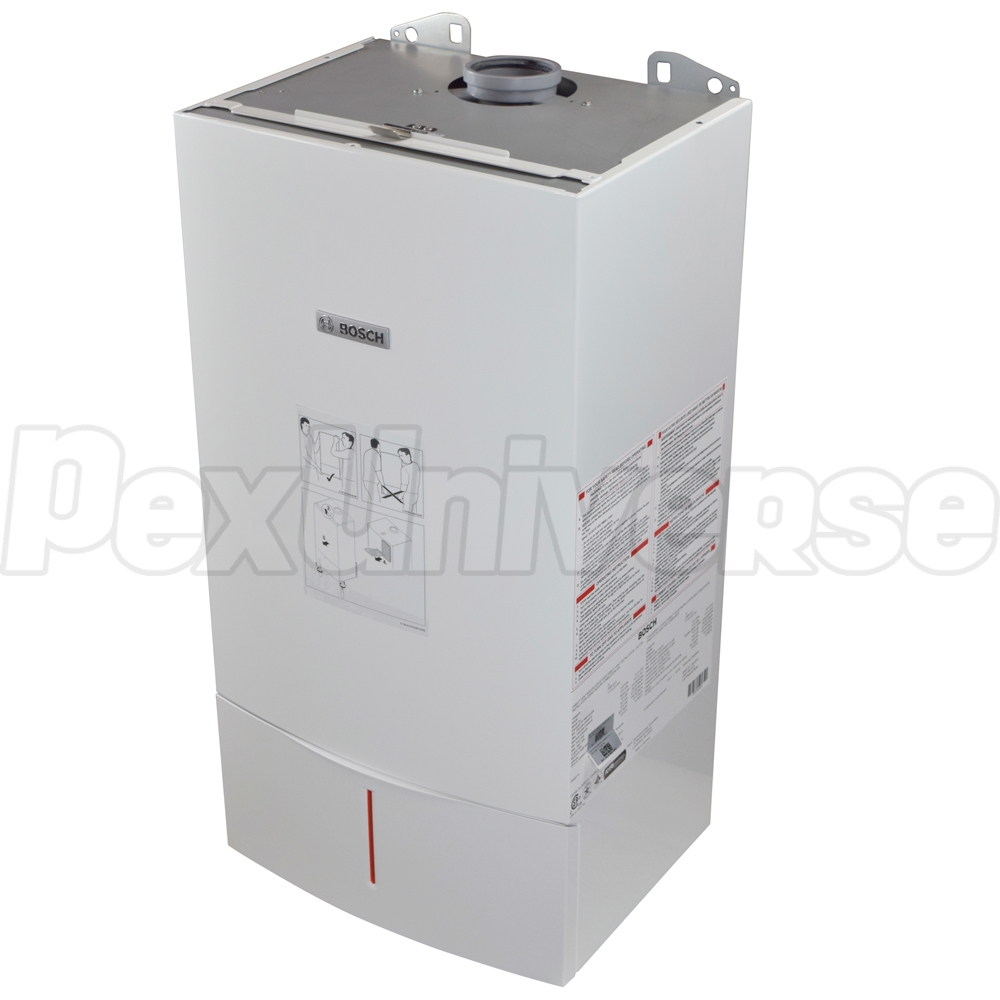

Greenstar 100 Condensing Gas Combi Boiler, 79,000 BTU
Brand: Bosch
Part#: ZWB28-3
Model: Greenstar Combi 100
Ship Pickup
Usually ships: within 2-3 business days
$3,333.00 / each
Free Shipping on any qty
Add to Cart

Description

Rebate:
This boiler meets the requirements for a federal tax credit and qualifies for a 30% (up to $600) rebate. Click here for more info.

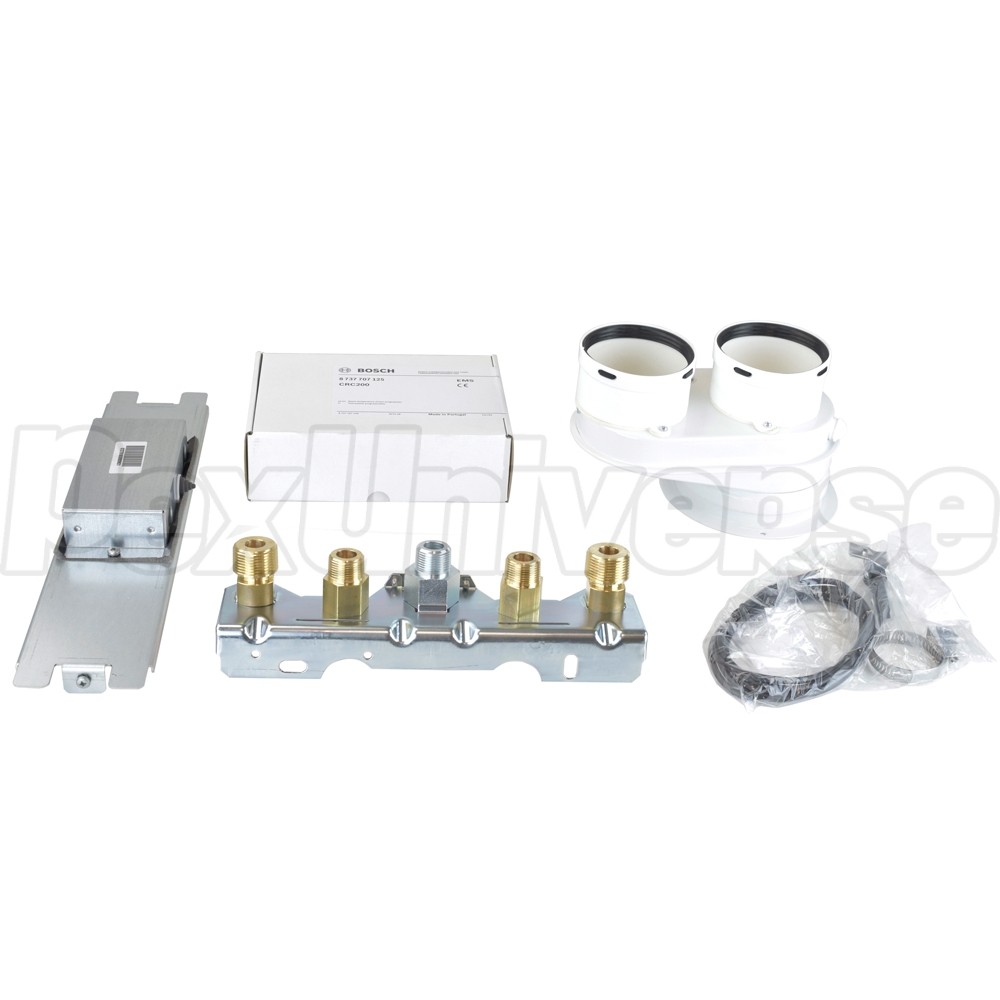

Bosch Greenstar series, 100-ZWB28-3 model, wall-mounted combi gas condensing boiler (heat + tankless DHW) with 79,000 kBTU (Net) rating. Energy Star rated. Built-in pump, heat exchanger and expansion tank. Includes LPG conversion kit, 3" twin pipe adapter and outdoor reset control.

Technical Specifications:
  • Input (BTU): 24,600 - 100,800
  • DOE Rating (BTU): 91,000
  • Net IBR Rating (BTU): 79,000
  • Efficiency (AFUE): 95%
  • Boiler Type: Condensing
  • Turndown (Modulation) Ratio: 5 : 1
  • Fuel Type: Natural Gas (NG) or Propane (LP)
  • System Type: Hydronic (Hot Water)
  • Boiler Connections: 1" NPT
  • Gas Connection: 3/4" NPT
  • Condesate Amount Produced: 0.6 Gal/hr (@ 86°F)
  • Max. Working Pressure: 30 psi
  • Max. Boiler Output Water Temperature: 190°F
  • Domestic Water Connections: 3/4" NPT
  • Vent Size: 2" (up to 81ft w/ 1 elbows) or 3" (up to 100ft w/ 4 elbows)
  • Vent Material: PVC, CPVC, Single Wall (Rigid) PolyPropylene, Flex PolyPropylene, Cat III St. Steel
  • Inlet Gas Pressure (WC): 3.5 - 10.5" (for NG), 8 - 13" (for LP)
  • Max. Elevation: 6,000 ft
  • Mounting Type: Wall-hung (wall-mounted)
  • Dimensions (Depth x Width x Height): 13.9" x 17.4" x 33.5"
  • Weight (lbs): 110.2
  • Water Volume (gallons): 0.952
  • Max. DHW Flow @ 72°F Rise: 2.65.

Documents

FAQs (1)

Ask a Question
How many sq ft can this boiler heat
Helpful? Yes -1 No
It would depend on the heat loss calculations. The boiler's NET output should exceed the total heat loss in order to be effective.
By PexUniverse Customer Service on 11/15/2019
