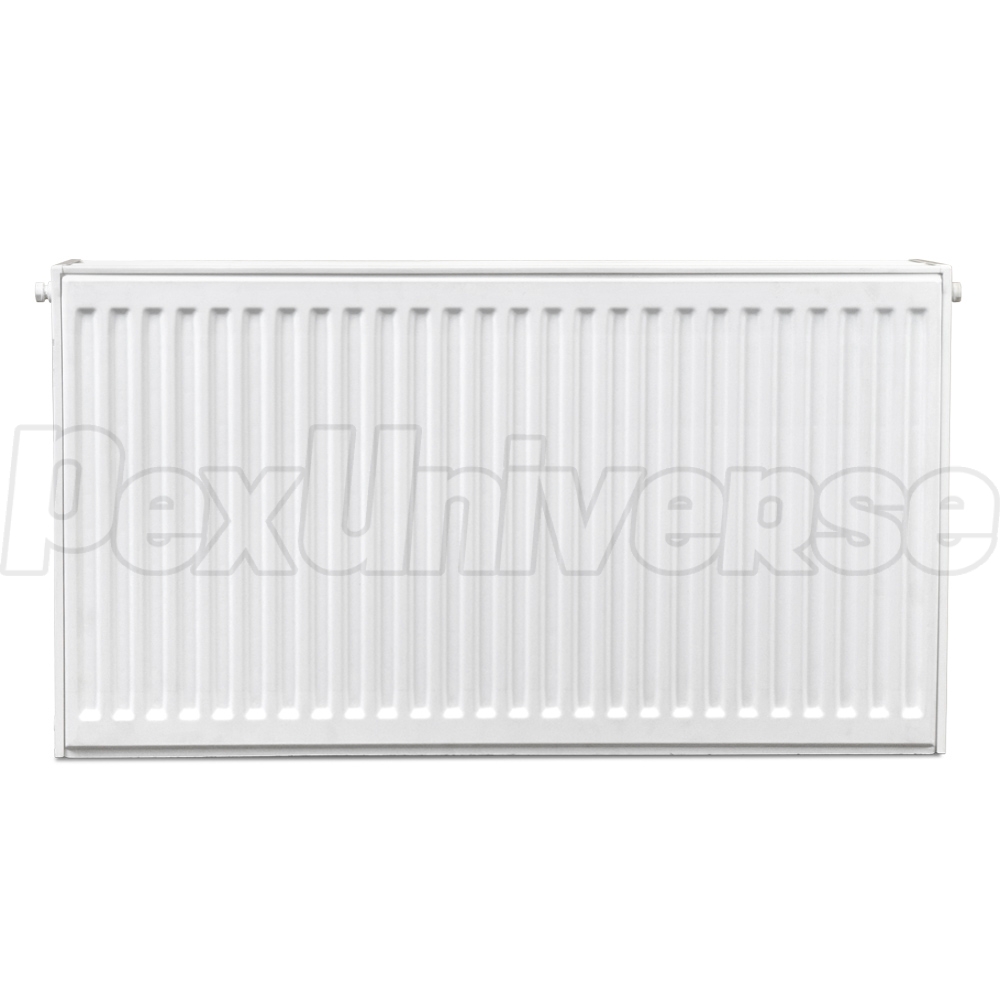

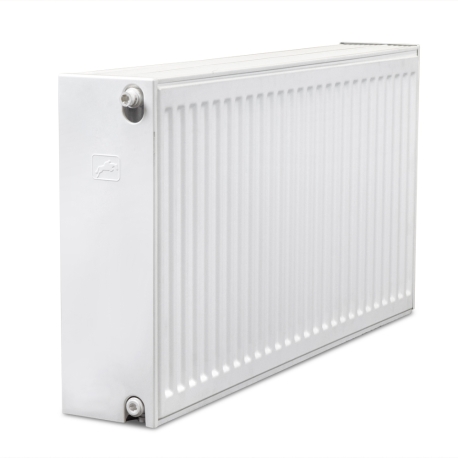

20" x 36" Hydronic Panel Radiator w/ Brackets, Model 33 Beacon Morris

20" x 36" Hydronic Panel Radiator w/ Brackets, Model 33

Brand: Beacon Morris

Part#: BM-33-20X36

In Stock

(Check qty)

Estimate delivery

Usually ships: within 1-2 business days

Pick Up available (Save ${{ (Math.round(Math.abs(pickupPrice) * 100) / 100).toFixed(2) }})

Pick Up ready by {{ pickupBy }}

Usually ready: within 1 hour

Description

20" high x 36" wide x 6-1/2" deep, hydronic (hot water) steel panel radiator with mounting brackets and hardware.

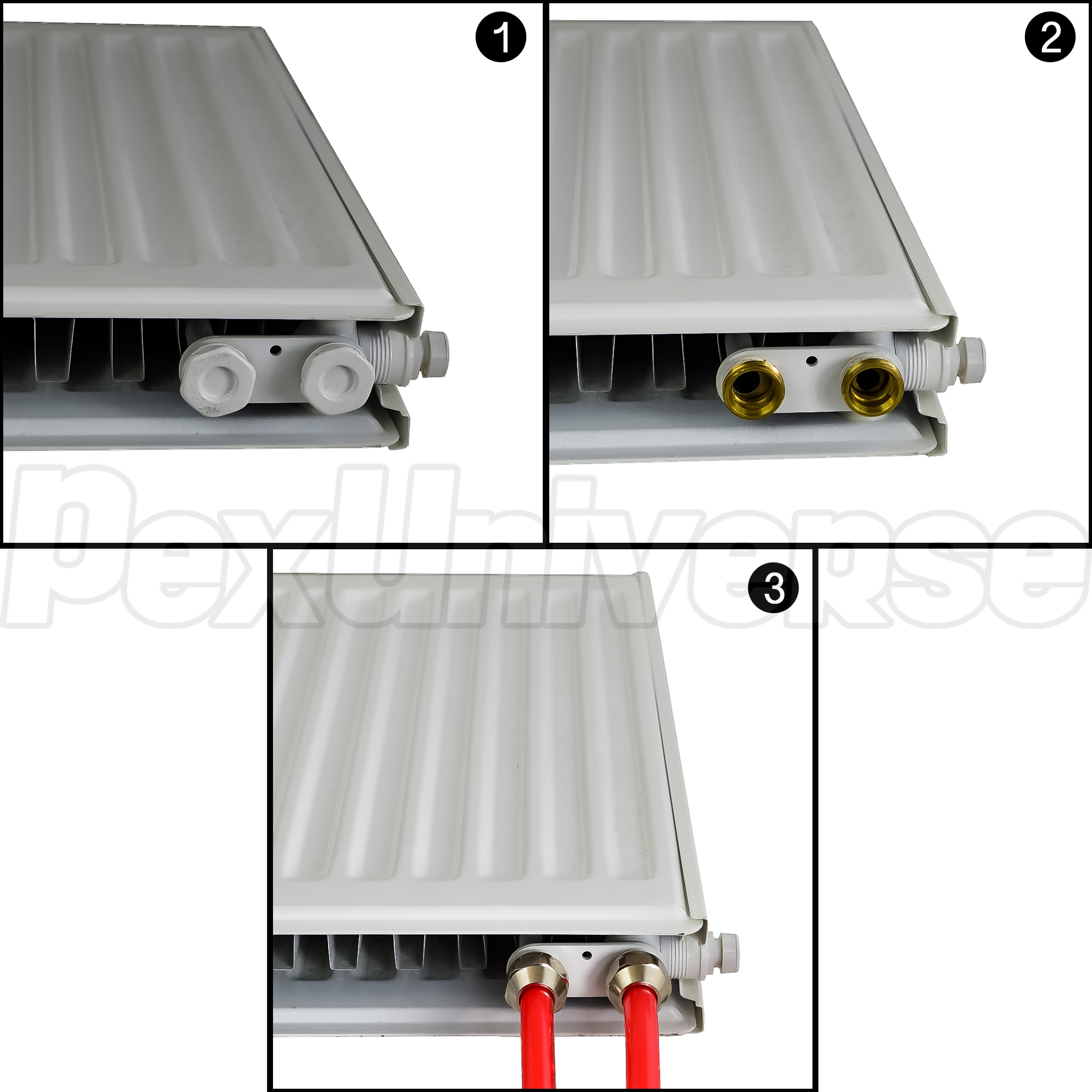

NOTE: a pair of pipe adapters are required to connect supply and return piping to the radiator and are sold separately (use part# 551016844 for 1/2" copper pipe, 551646850 for 1/2" PEX or PEX-AL-PEX, 551646851 for 5/8" PEX or PEX-AL-PEX).

Features:

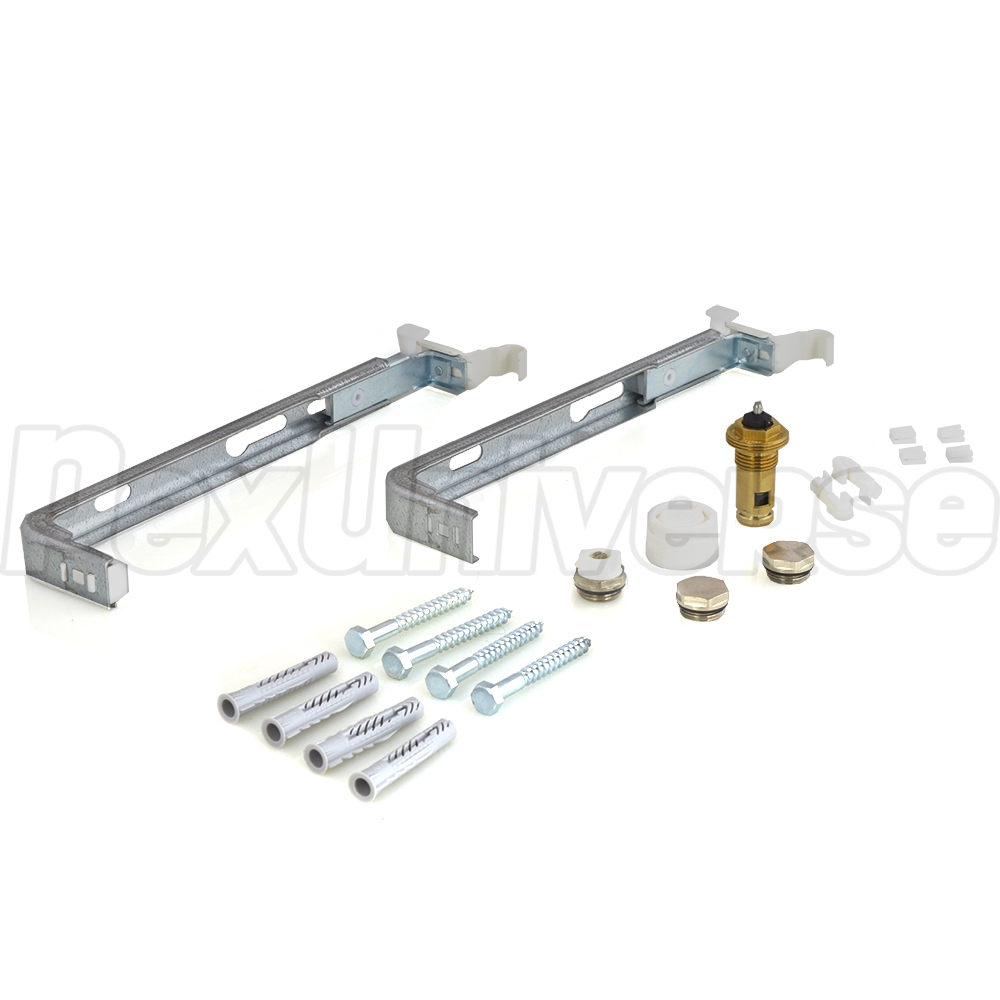

Radiator includes mounting brackets w/ hardware, air vent (manual bleeder style), (2) drain plugs and thermostatic valve body with manual cap
Powder coated white finish is highly resistant to scratching and can be painted
Compatible with all piping configurations - parallel, series and dedicated
Combines convection with radiant heat to offer better efficiency than baseboard and higher level of comfort
Compact design means lower footprint
Wide operating temperature range (120-180F) ensures compatibility with virtually all types and combinations of hot water heating systems
Quiet - no screeching or hissing common with baseboards and steam radiators

Technical Specifications:

Dimensions (H x L x D): 20" x 36" x 6-1/2"
BTU Output @120°F: 2,615
BTU Output @140°F: 4,146
BTU Output @160°F: 5,893
BTU Output @180°F: 7,694
Water Content (Gal): 1.98
Max Operating Pressure: 145 psi
Max Operating Temperature: 200°F

Warranty:
10 years
