20" x 36" Hydronic Panel Radiator w/ Brackets, Model 11
Brand: Beacon Morris
Part#: BM-11-20X36
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$260.95 / each
Free Shipping on any qty
Add to Cart

Description

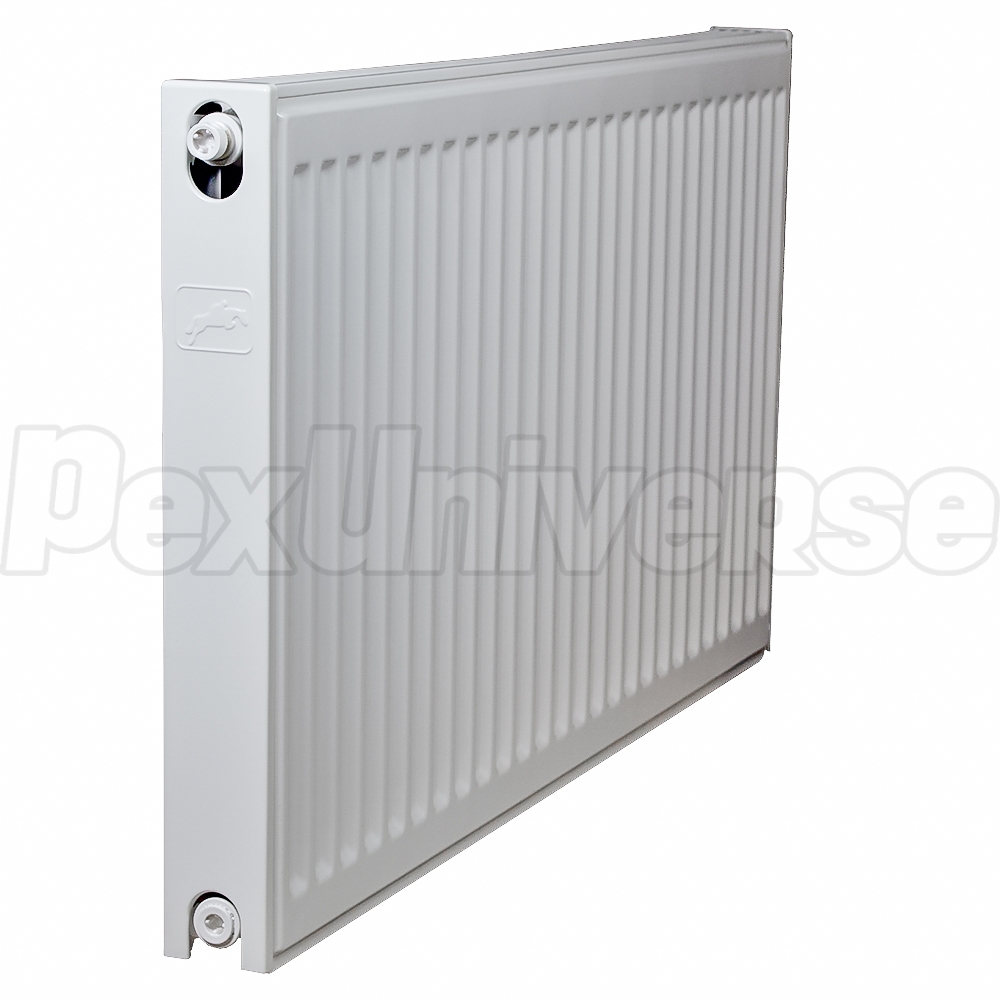

20" high x 36" wide x 2-3/4" deep, hydronic (hot water) steel panel radiator with mounting brackets and hardware.

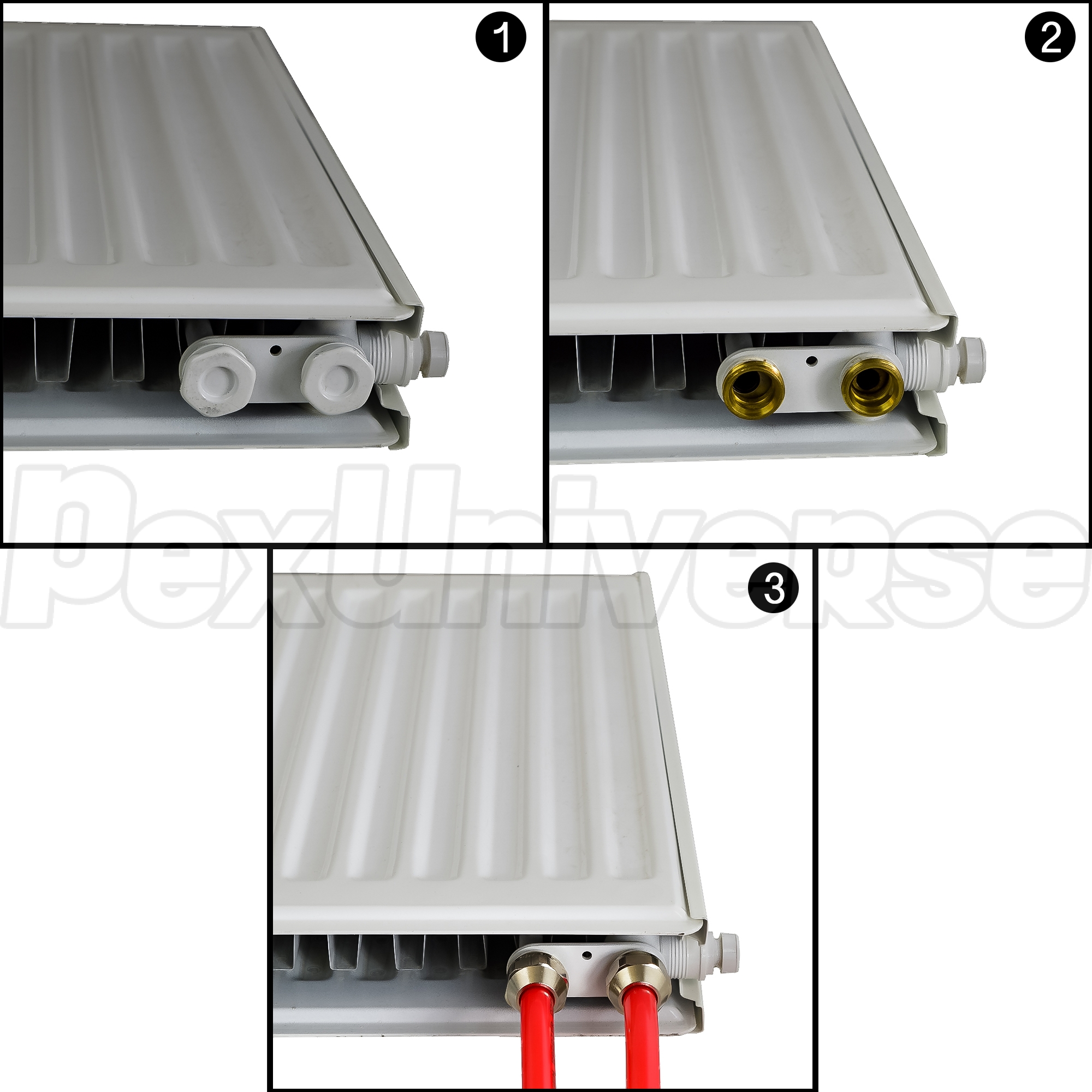

NOTE: a pair of pipe adapters are required to connect supply and return piping to the radiator and are sold separately (use part# 551016844 for 1/2" copper pipe, 551646850 for 1/2" PEX or PEX-AL-PEX, 551646851 for 5/8" PEX or PEX-AL-PEX).

Features:

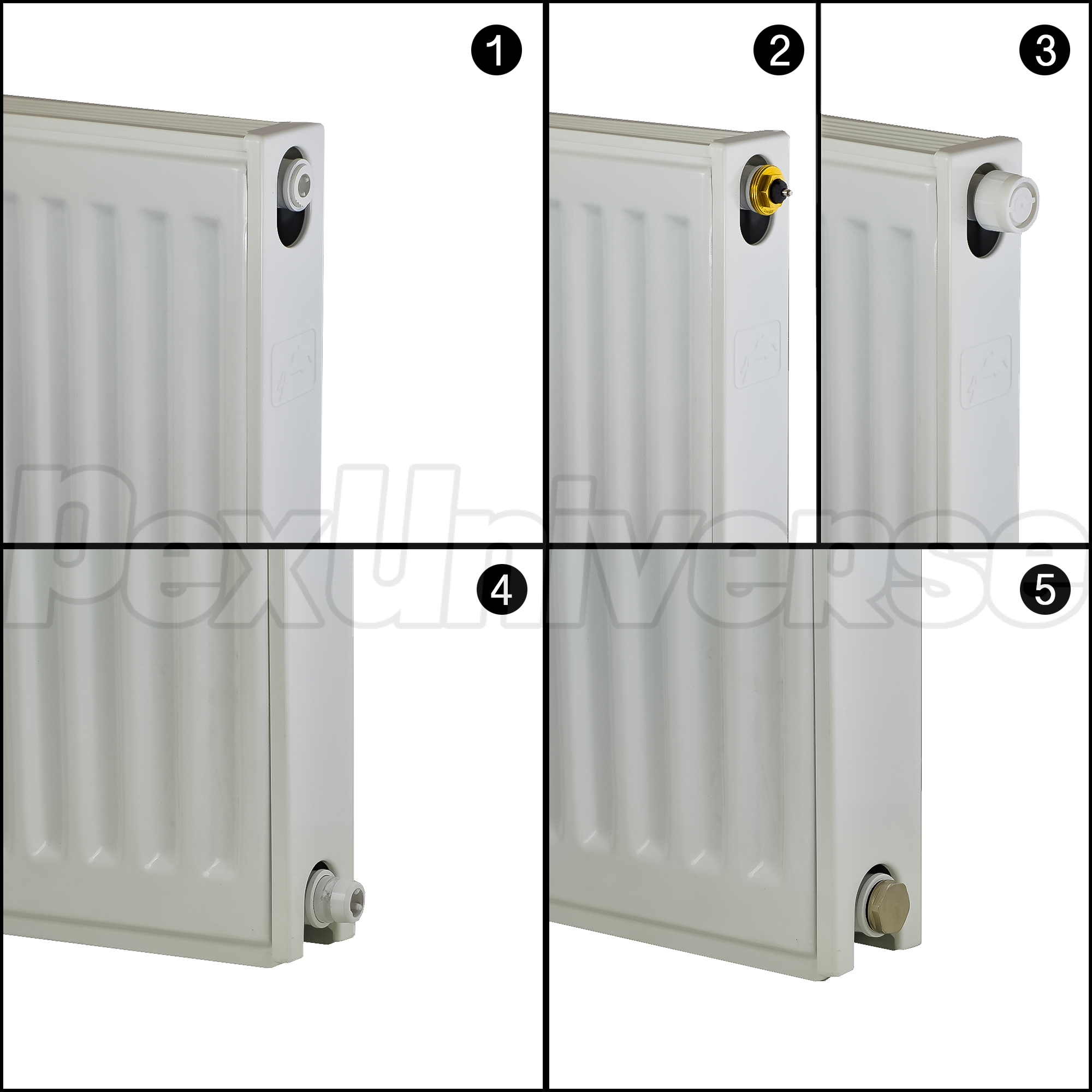

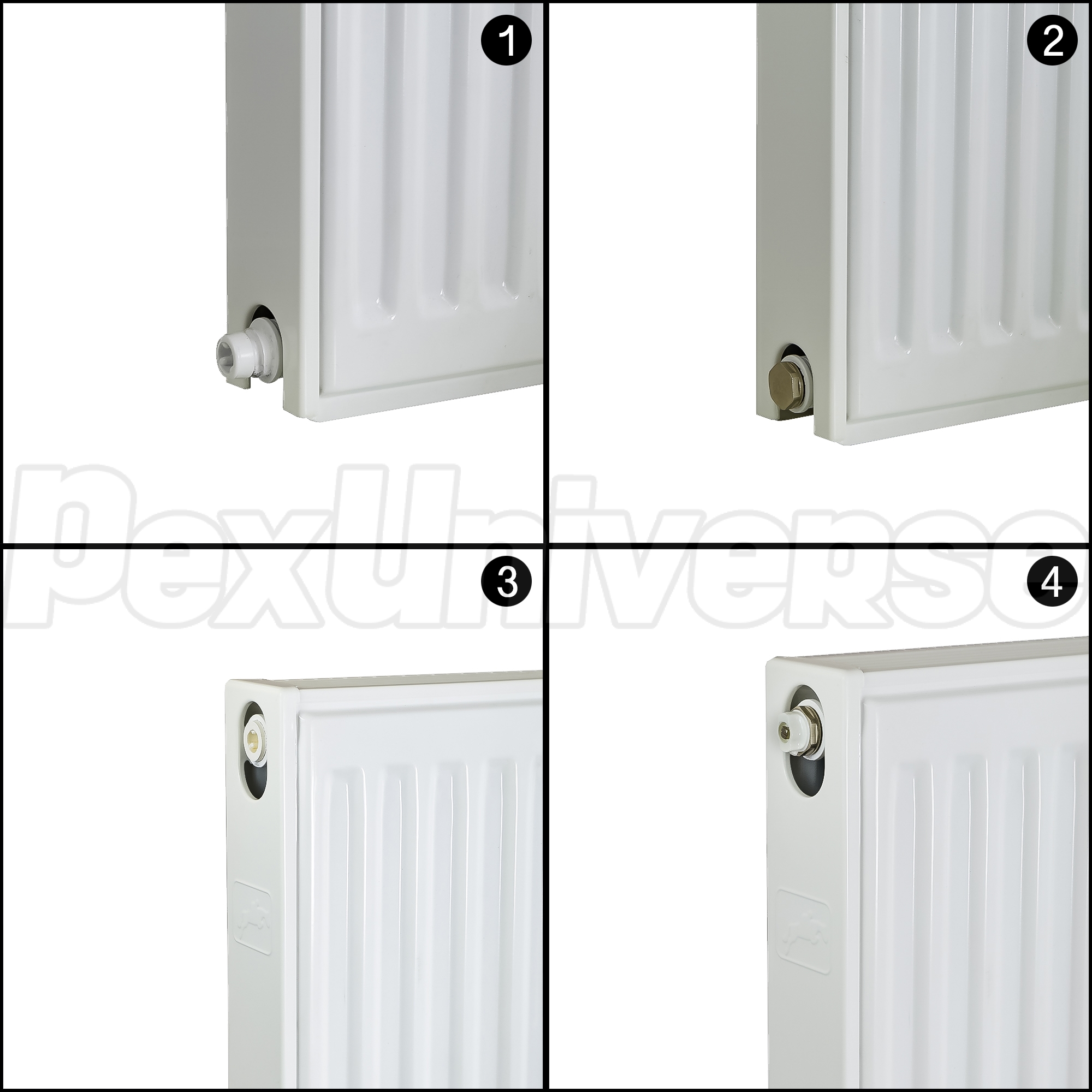

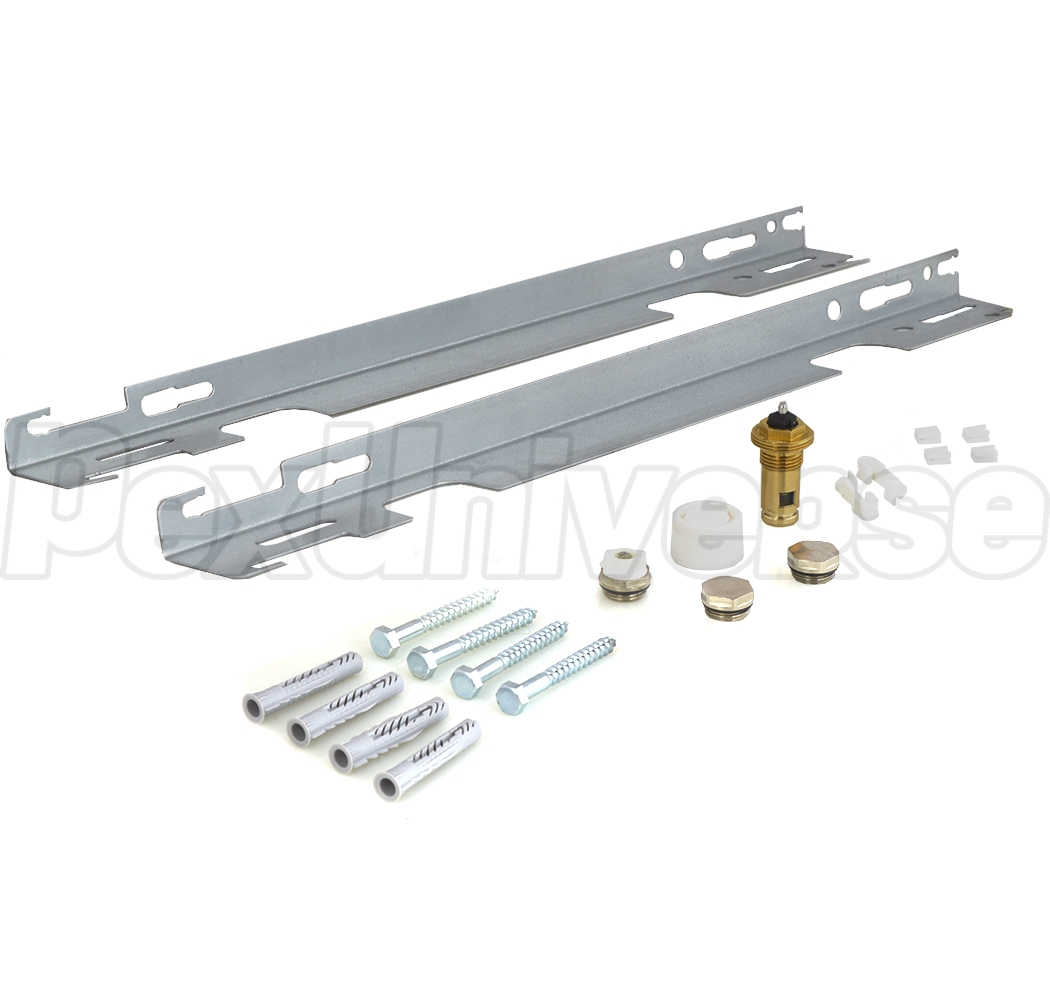

  • Radiator includes mounting brackets w/ hardware, air vent (manual bleeder style), (2) drain plugs and thermostatic valve body with manual cap
  • Powder coated white finish is highly resistant to scratching and can be painted
  • Compatible with all piping configurations - parallel, series and dedicated
  • Combines convection with radiant heat to offer better efficiency than baseboard and higher level of comfort
  • Compact design means lower footprint
  • Wide operating temperature range (120-180F) ensures compatibility with virtually all types and combinations of hot water heating systems
  • Quiet - no screeching or hissing common with baseboards and steam radiators
  • Made in Europe

Technical Specifications:
  • Dimensions (H x L x D): 20" x 36" x 2-3/4"
  • BTU Output @120°F: 1,140
  • BTU Output @140°F: 1,824
  • BTU Output @160°F: 2,560
  • BTU Output @180°F: 3,311
  • Water Content (Gal): 0.66
  • Max Operating Pressure: 145 psi
  • Max Operating Temperature: 200°F

Warranty:
10 years

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Heaters
Works great. Would buy again
Length: 24" | Height: 20"
By Charles (from Pittsburgh, PA) on 10/27/2021

FAQs (1)

Ask a Question
What is the best way to calculate what size radiatior panel I should get
Helpful? Yes No
You would need to know how many BTU's are needed to heat 1 square ft in your area, given your insulation, heat loss and other factors. For example, in our area, a typical home would need ~50BTUs/sqft, so a 12x16 room would need 50*12*16=9,600 BTUs. Then you would look up the radiator BTU output at 180F (typical hot water boiler output temperature for baseboard/radiator systems). If your radiator of choice outputs 3,500BTU @180F, you would need at least 3 of these (3 x 3,500 = 10,500) to match a room with 9,600 BTU heat requirements.
By PexUniverse Customer Service on 10/14/2020
