20" x 24" Hydronic Panel Radiator w/ Brackets, Model 22
Brand: Beacon Morris
Part#: BM-22-20X24
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$300.95 / each
Free Shipping on any qty
Add to Cart

Description

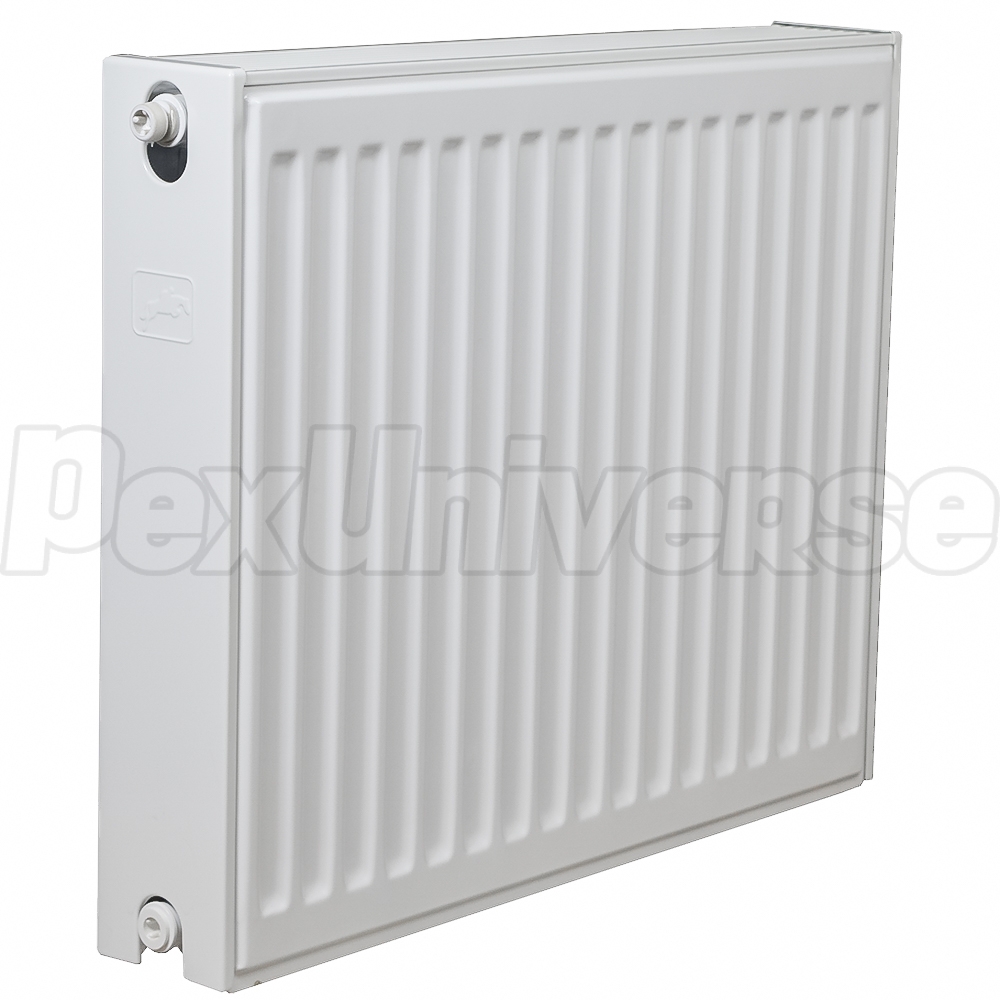

20" high x 24" wide x 4-1/8" deep, hydronic (hot water) steel panel radiator with mounting brackets and hardware.

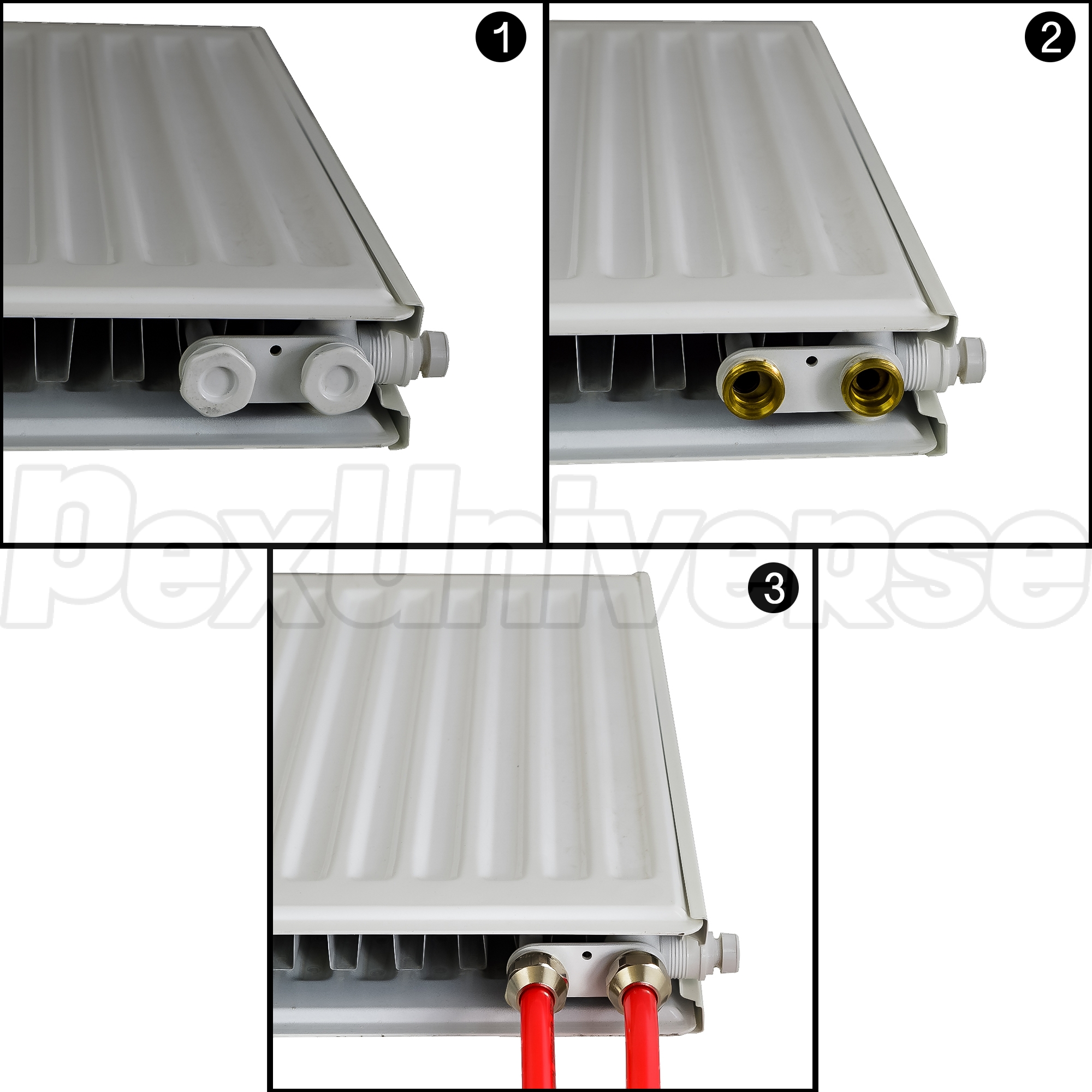

NOTE: a pair of pipe adapters are required to connect supply and return piping to the radiator and are sold separately (use part# 551016844 for 1/2" copper pipe, 551646850 for 1/2" PEX or PEX-AL-PEX, 551646851 for 5/8" PEX or PEX-AL-PEX).

Features:

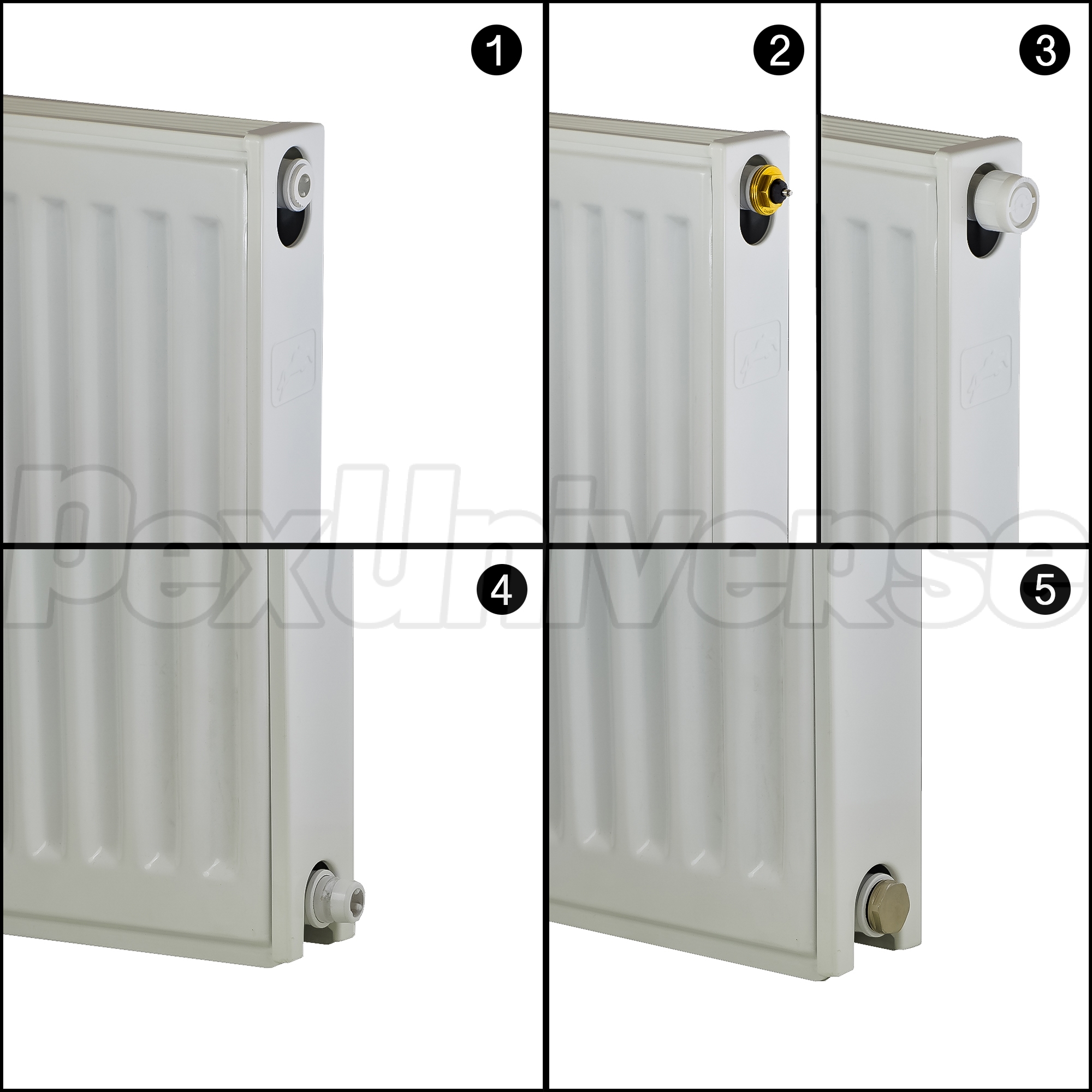

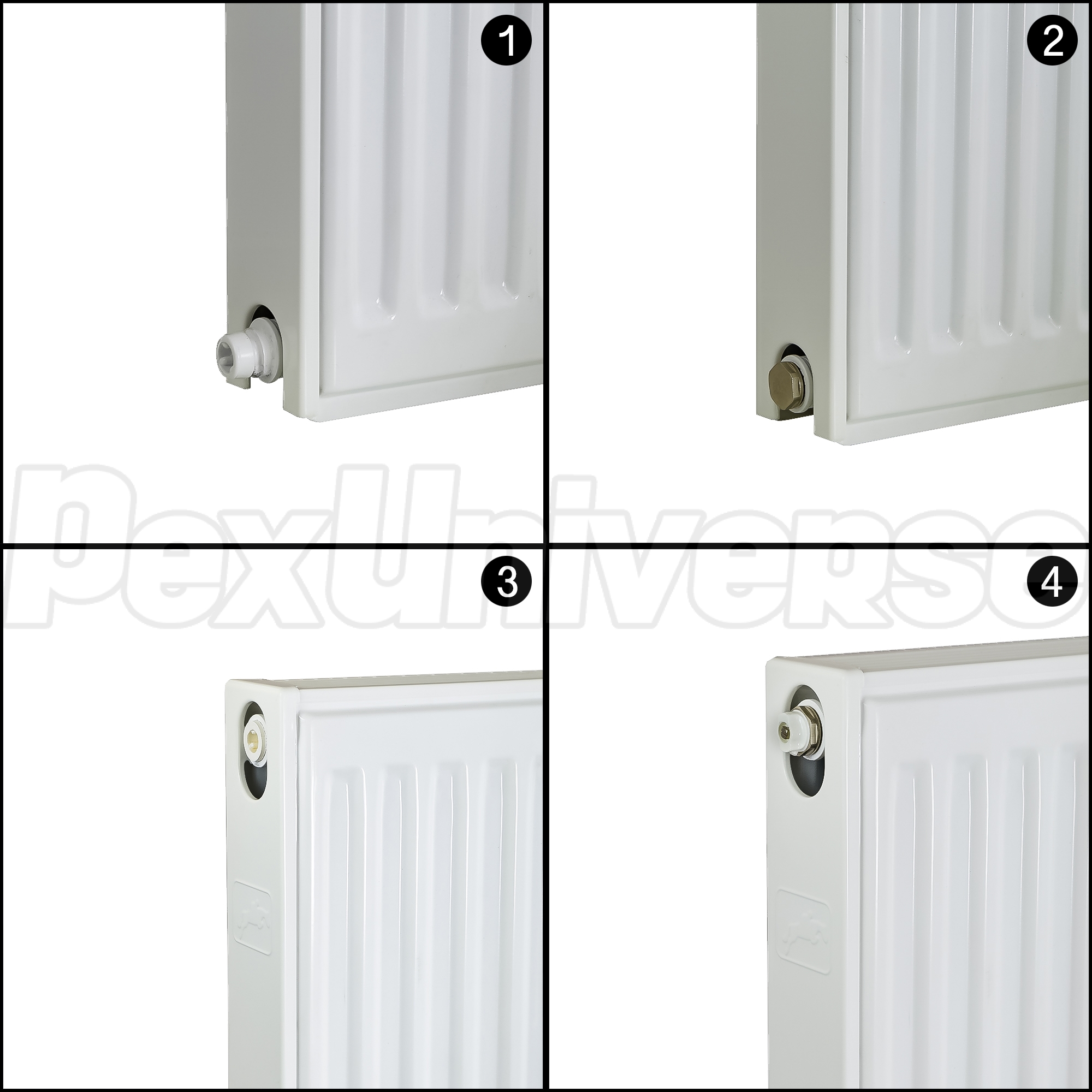

  • Radiator includes mounting brackets w/ hardware, air vent (manual bleeder style), (2) drain plugs and thermostatic valve body with manual cap
  • Powder coated white finish is highly resistant to scratching and can be painted
  • Compatible with all piping configurations - parallel, series and dedicated
  • Combines convection with radiant heat to offer better efficiency than baseboard and higher level of comfort
  • Compact design means lower footprint
  • Wide operating temperature range (120-180F) ensures compatibility with virtually all types and combinations of hot water heating systems
  • Quiet - no screeching or hissing common with baseboards and steam radiators
  • Made in Europe

Technical Specifications:
  • Dimensions (H x L x D): 20" x 24" x 4-1/8"
  • BTU Output @120°F: 1,365
  • BTU Output @140°F: 2,182
  • BTU Output @160°F: 3,053
  • BTU Output @180°F: 3,925
  • Water Content (Gal): 0.87
  • Max Operating Pressure: 145 psi
  • Max Operating Temperature: 200°F

Warranty:
10 years

Documents

Write a Review
Helpful? Yes 2 No
Verified Purchase
Great product
I researched a number of different brands before purchasing these. These will produce more heat than other brands and are well priced. I found no problems with the product and they are working well.
Length: 16" | Height: 24"
By Loren (from Colbert, WA) on 12/13/2020
Helpful? Yes No
Verified Purchase
Fourth one purchased
There are a great replacement for the hydronic baseboard I removed. They do a wonderful job and require far less wall space
Length: 24" | Height: 24"
By Jim (from Dalton, PA) on 11/26/2024
Helpful? Yes No
Verified Purchase
Nice radiators at decent price
Simple installation, decent instructions, well made, heats nicely, fair price
Length: 56" | Height: 12"
By James (from Hardwick, MA) on 04/05/2024

FAQs (1)

Ask a Question
How do you know what size you need
Helpful? Yes No
Just like any other heating equipment, the radiator is sized based on the heat loss in a given room. The calculation involves many factors, but the easiest way is usually to determine room size and multiply the sqft by the average BTU/sqft heating needs in your area (considering an average type home). For example, a 12x15 room (180 sqft) with 45 BTU/sqft requirement would need 180 x 45 = 8,100 BTU's of heat. This would approximately translate to (2) 20" x 24" radiators (BM-22-20X24 model), considering your boiler outputs 180F water. If you need further help with sizing, feel free to contact us by phone or e-mail.
By PexUniverse Customer Service on 02/08/2021
