20" x 16" Hydronic Panel Radiator w/ Brackets, Model 21
Brand: Beacon Morris
Part#: BM-21-20X16
Ship Pickup
Usually ships: Upon availability
$225.95 / each
Free Shipping on any qty
Add to Cart

Description

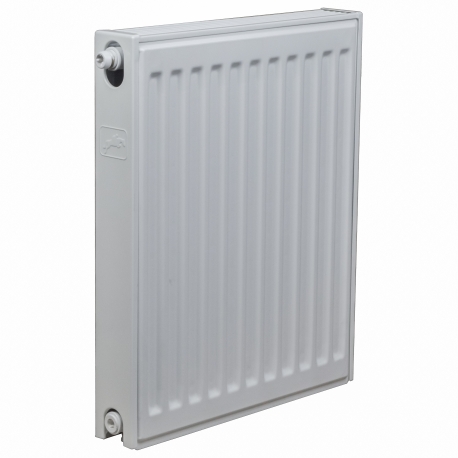

20" high x 16" wide x 2-7/8" deep, hydronic (hot water) steel panel radiator with mounting brackets and hardware.

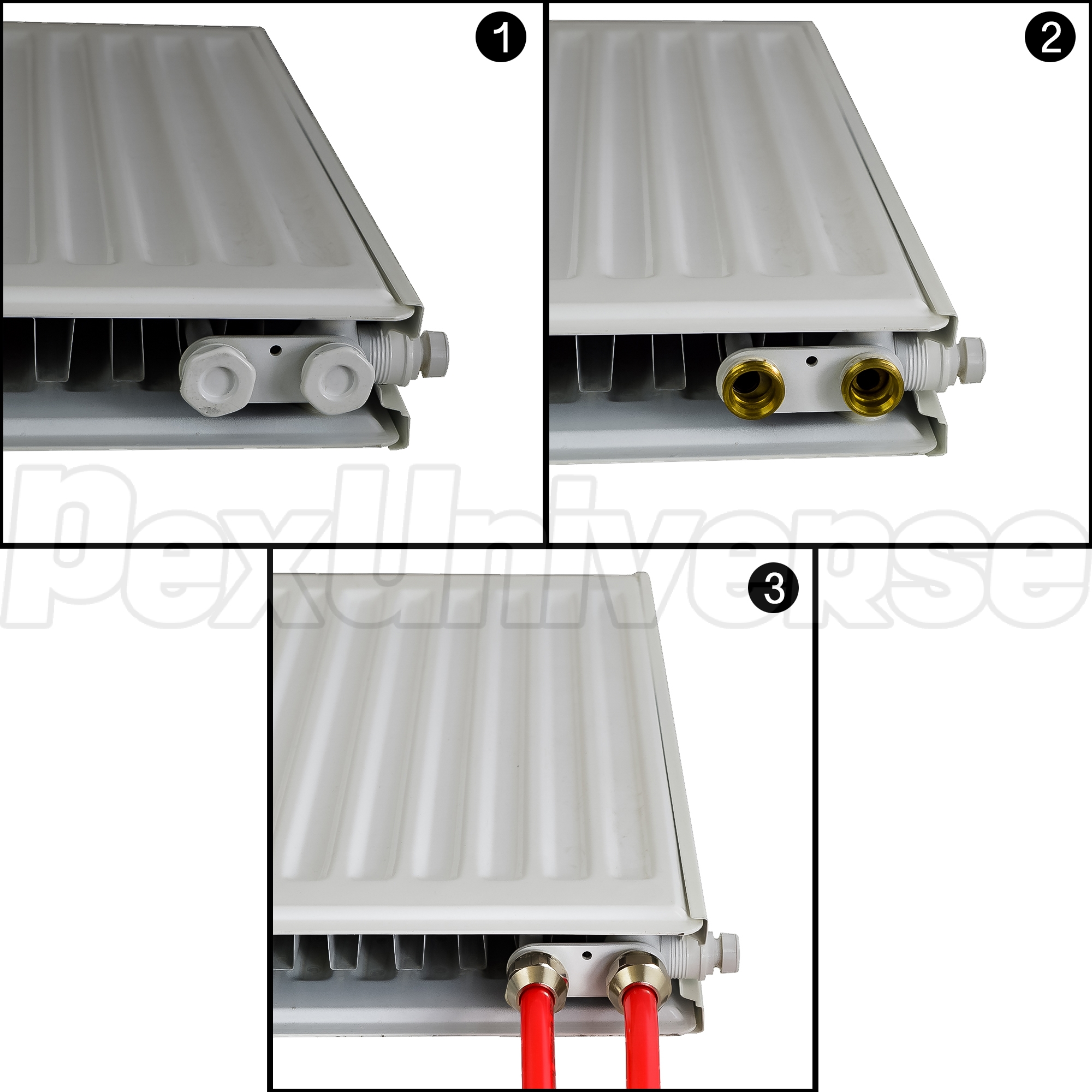

NOTE: a pair of pipe adapters are required to connect supply and return piping to the radiator and are sold separately (use part# 551016844 for 1/2" copper pipe, 551646850 for 1/2" PEX or PEX-AL-PEX, 551646851 for 5/8" PEX or PEX-AL-PEX).

Features:

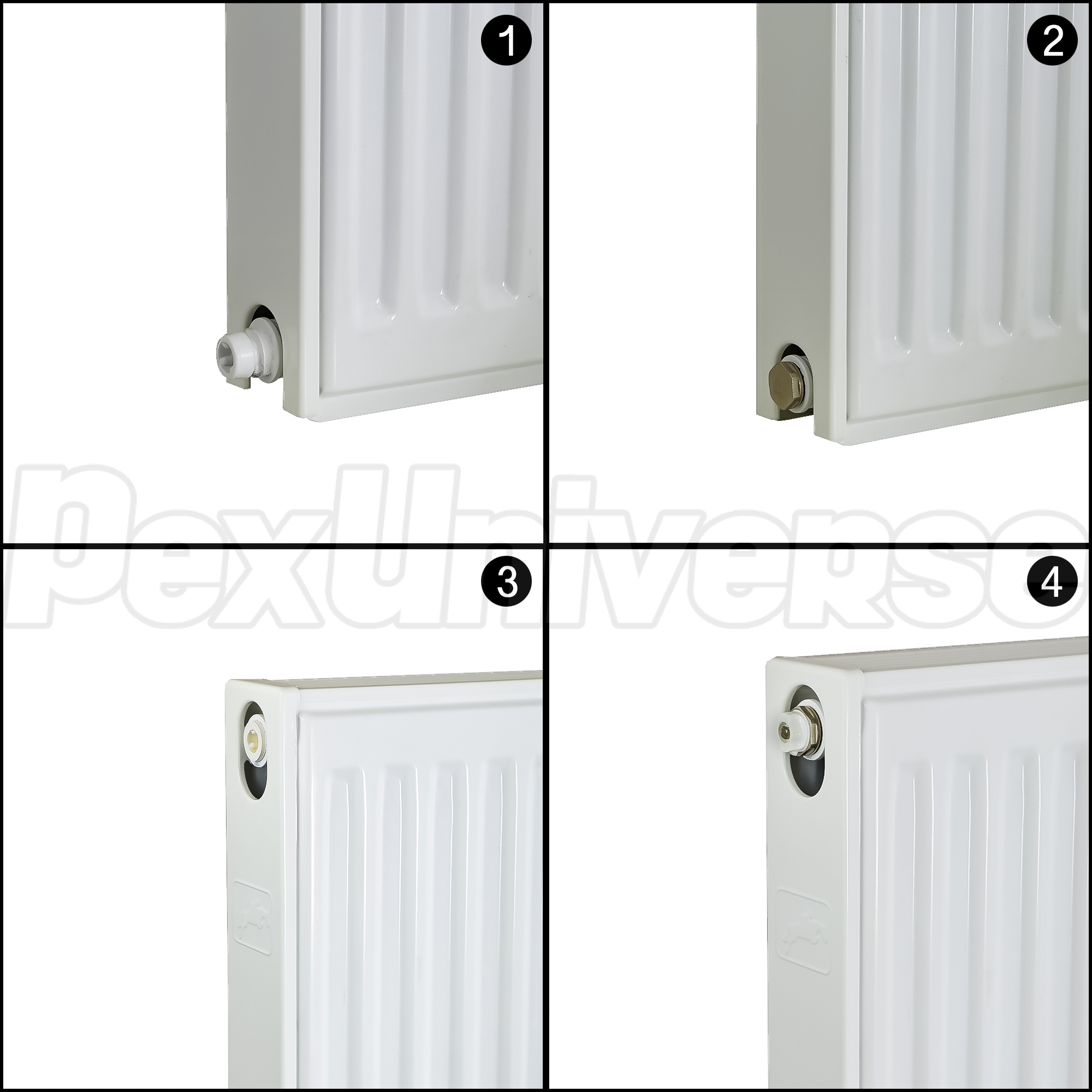

  • Radiator includes mounting brackets w/ hardware, air vent (manual bleeder style), (2) drain plugs and thermostatic valve body with manual cap
  • Powder coated white finish is highly resistant to scratching and can be painted
  • Compatible with all piping configurations - parallel, series and dedicated
  • Combines convection with radiant heat to offer better efficiency than baseboard and higher level of comfort
  • Compact design means lower footprint
  • Wide operating temperature range (120-180F) ensures compatibility with virtually all types and combinations of hot water heating systems
  • Quiet - no screeching or hissing common with baseboards and steam radiators
  • Made in Europe

Technical Specifications:
  • Dimensions (H x L x D): 20" x 16" x 2-7/8"
  • BTU Output @120°F: 699
  • BTU Output @140°F: 1,114
  • BTU Output @160°F: 1,558
  • BTU Output @180°F: 2,002
  • Water Content (Gal): 0.58
  • Max Operating Pressure: 145 psi
  • Max Operating Temperature: 200°F

Warranty:
10 years

Documents

Write a Review
Helpful? Yes 1 No
Verified Purchase
Beacon Morris
Radiators not supplied with thermostatic valve
Reply from PexUniverse:

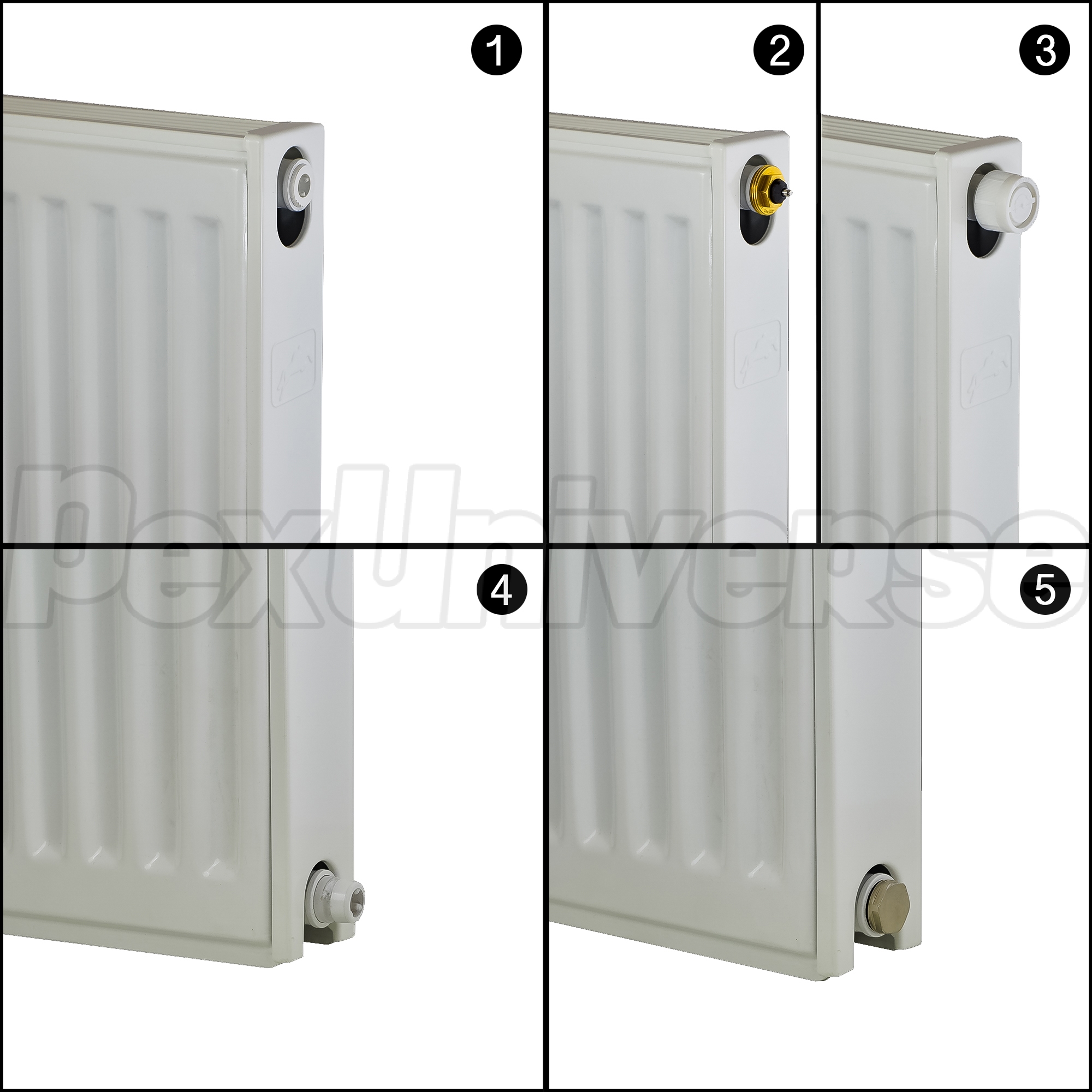

You are correct. Since not all piping methods require a thermostatic valve, we do not include it in the package - however, the radiator valve insert is included (allows for manual flow adjustment) - see pic 2. Also, our Beacon Morris thermostatic radiator valves cost much less than comparable models from Honeywell and Danfoss.
Length: 56" | Height: 20"
By Gregg (from Stamford, CT) on 11/07/2019
Helpful? Yes No
Verified Purchase
Nice product
Installation was straightforward. Had a part missing but pex universe set up a delivery from the manufacturer and replaced in a matter of 1 or 2 days. Great service
Length: 16" | Height: 20"
By Michael (from Newburgh, NY) on 01/30/2025
Helpful? Yes No
Verified Purchase
Very nice!
Decided on this for my bathroom remodel. Couldn’t be happier. Contractor’s first time installing this type of radiator and was amazed how easy it was to install. He says he’ll recommend them to his future clients. Unfortunately, we installed this in May 2023 and won’t know how it performs for us until next fall. But, looks great and we don’t miss the old upright cast iron radiator it replaced. Highly recommend PEX Universe, very fast and efficient. I ordered on a Saturday got a call about a mistake in my address on Monday and received the radiator on Tuesday!
Length: 24" | Height: 24"
By Peter (from Waterford, NJ) on 05/18/2023
Helpful? Yes No
Verified Purchase
Fantastic Radiator!
It took an extra day to arrive due to the Midwest Snow Storm, but was worth the wait. This is a well designed and built radiator. Easy to install and produces the extra heat I needed. A word of caution to the DIY crowd, the instructions do not mention that the "Valve Insert Cap" will close the valve if you tighten it all the way down... it took me a while to figure that out when bleeding the air out of the system... so screw it down until you feel it touch the valve stem... and STOP! Thanks again to PexUniverse for great products and service.
Length: 56" | Height: 20"
By Robert (from Bailey, CO) on 02/09/2022
Helpful? Yes No
Verified Purchase
Beacon Morris Panel Radiator Excellent Product!
Quiet and efficient, I installed it with the thermostatic head, works wonderful. Clean sleek look
Length: 56" | Height: 20"
By Fred (from St. james, NY) on 12/05/2021
Helpful? Yes No
Verified Purchase
20" x 24" Hydronic Panel Radiator w/ Brackets, Model 21
Very good product
Length: 24" | Height: 20"
By zinovy (from Sparta, NJ) on 11/18/2021
Helpful? Yes No
Verified Purchase
Nice unit, works well
This is the second of these panel radiators that I have purchased and they work well. This one came packaged well and was in perfect shape when opened. That's more than I can say about my first one, it had a damaged end cover plate. One small detail. Make certain you have a good bleeder key, I stripped out the screwdriver slot trying to open the original unit to drain it back. They really stick after a year. It would be nice if they were made out of something better than soft brass.
Length: 40" | Height: 20"
By Eric (from Mount joy, PA) on 02/18/2021
Helpful? Yes No
Verified Purchase
work great
these work great. they don’t hold heat as well as cast iron but they are more convenient so it’s a trade off.
Length: 36" | Height: 24"
By nicholas (from Le roy, WV) on 02/07/2021
Helpful? Yes No
Verified Purchase
Great radiator
Haven’t installed it yet but looks well made and is modern looking
Length: 36" | Height: 20"
By Elmiton (from The bronx, NY) on 10/21/2020
Helpful? Yes No
Verified Purchase
Does the job
easy install - works well
Length: 36" | Height: 20"
By Joseph (from Middletown, NY) on 10/20/2020
Helpful? Yes No
Verified Purchase
Panel Radiator
Great Product, love the easy installation & the look.
Length: 16" | Height: 20"
By Fred (from Saint james, NY) on 05/24/2020
Helpful? Yes No
Verified Purchase
Good lines
Loved the product
Length: 36" | Height: 24"
By Ralf (from Green mountain falls, CO) on 03/09/2020
Helpful? Yes No
Verified Purchase
Satisfied
The Beacon Morris flat panel radiators are a good economical alternative to Buderus. There are some slight cosmetic differences and the trim pieces are lighter gauge but their function and the installation is the same. The supply/return threading is the same and they appear to use the same connection fittings.
Length: 16" | Height: 20"
By Lloyd (from Oak park, IL) on 12/09/2019
Helpful? Yes No
Verified Purchase
damage
one end panel was damaged, I was able to fix it and hide the bent section
Length: 56" | Height: 20"
By Vaughn (from Lubec, ME) on 11/30/2019
Helpful? Yes No
Verified Purchase
Beacon Morris radiant panels
Love the product. Simple, stylish, works great. Could use better vents, the vent screws are kinda weak and onset so hard to get a socket on them. Also didn’t notice but all of the panels only allow 1.5 GPM. That’s the flow they are designed for but if your boiler requires a certain flow better get enough panels. One came with a pretty big scratch on it but I simply positioned that side toward the wall. Super easy install. I’d definitely recommend.
Length: 56" | Height: 24"
By John (from Windsor, VT) on 11/11/2019
