Name: 12" x 56" Hydronic Panel Radiator w/ Brackets, Model 22
Brand: Beacon Morris
SKU: BM-22-12X56
Price: 400.95 USD
Availability: InStock
Rating: 4.67 (3 reviews)

Array
(
    [total] => 0.027148962020874
    [t1 - t2] => 0.010689973831177
    [t2 - t3] => 0.0080859661102295
    [t3 - t4] => 2.0027160644531E-5
    [t4 - t5] => 4.2915344238281E-5
    [t5 - t6] => 5.0067901611328E-6
    [t6 - t7] => 0.0083050727844238
)

12" x 56" Hydronic Panel Radiator w/ Brackets, Model 22 Beacon Morris

12" x 56" Hydronic Panel Radiator w/ Brackets, Model 22

Brand: Beacon Morris

Part#: BM-22-12X56

In Stock

(Check qty)

(3)

Estimate delivery

Usually ships: within 1 business day

Pick Up available (Save ${{ (Math.round(Math.abs(pickupPrice) * 100) / 100).toFixed(2) }})

Pick Up ready by {{ pickupBy }}

Usually ready: within 1 hour

Description

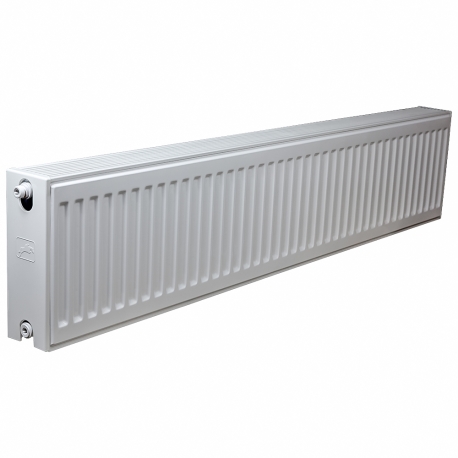

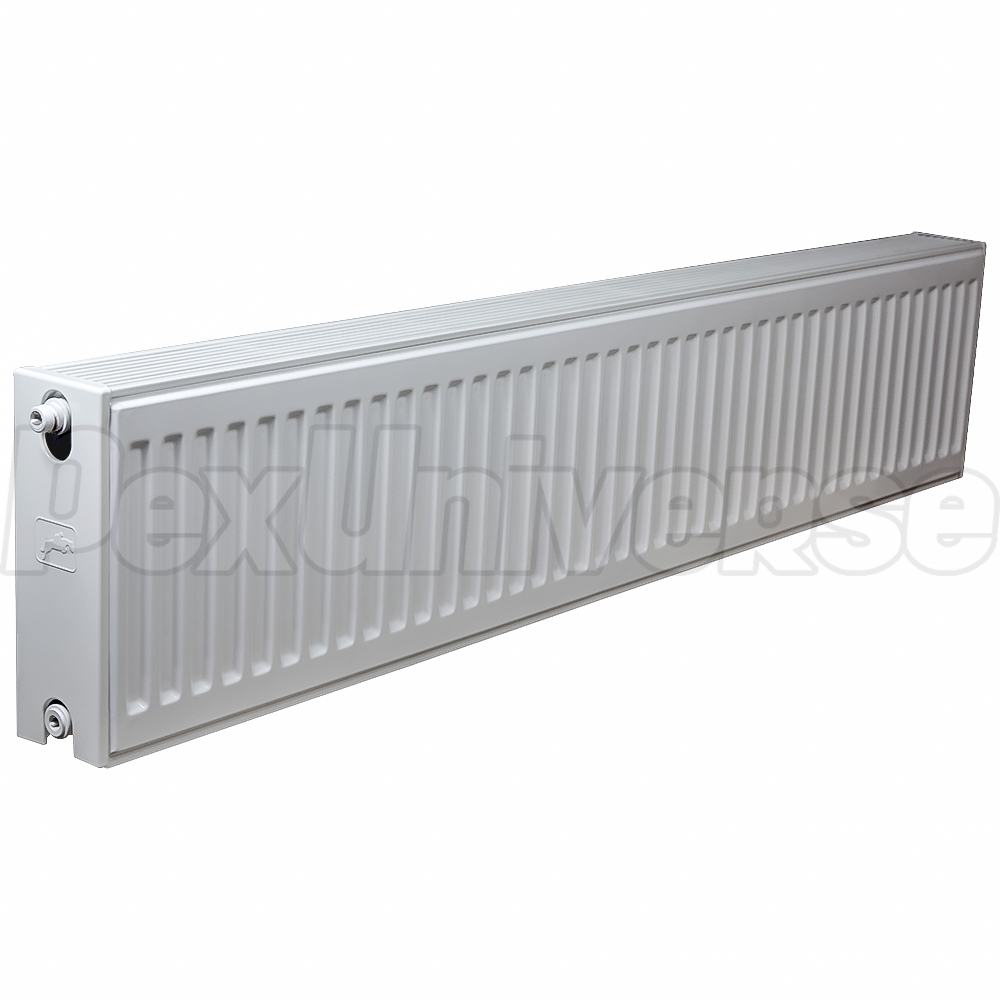

12" high x 56" wide x 4-1/8" deep, hydronic (hot water) steel panel radiator with mounting brackets and hardware.

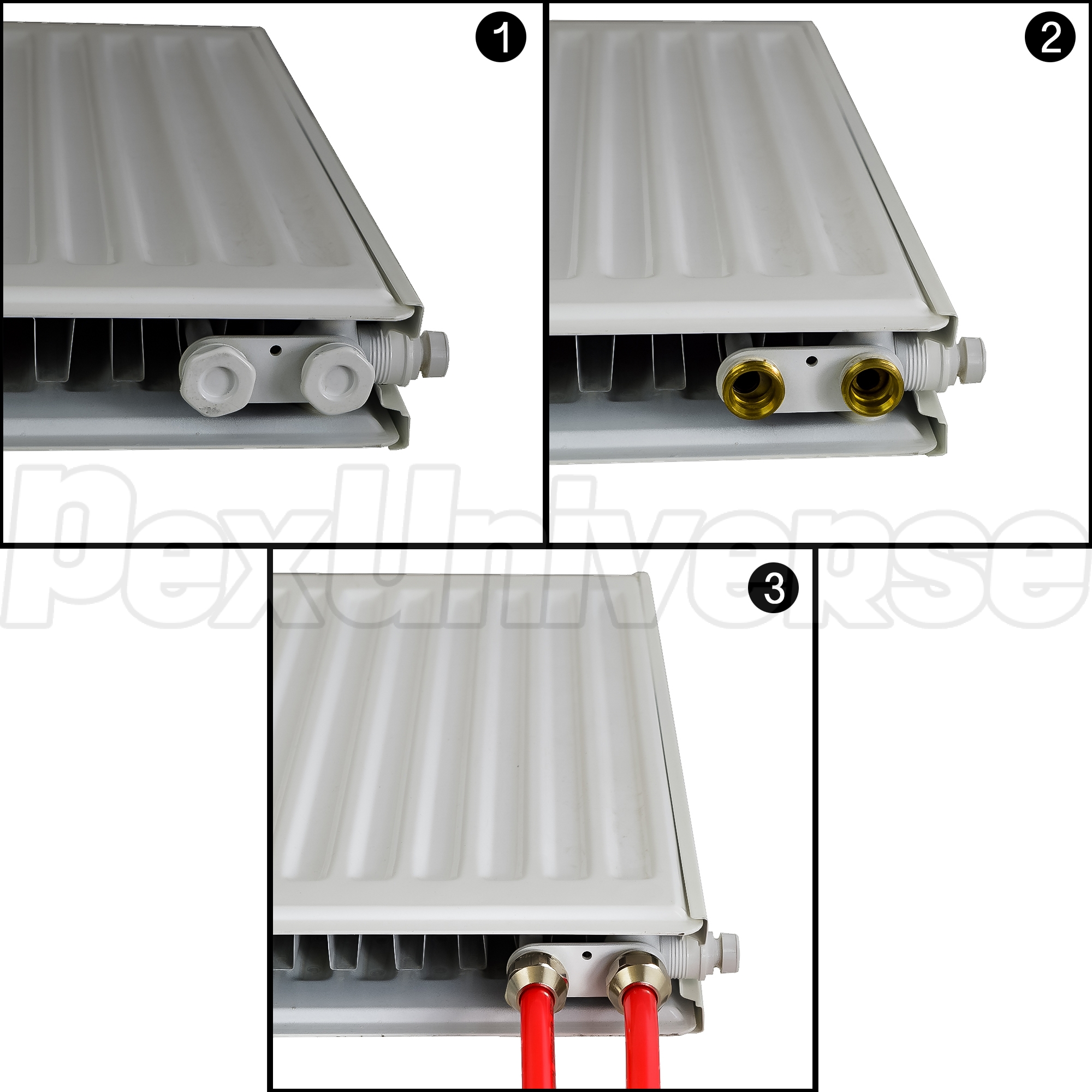

NOTE: a pair of pipe adapters are required to connect supply and return piping to the radiator and are sold separately (use part# 551016844 for 1/2" copper pipe, 551646850 for 1/2" PEX or PEX-AL-PEX, 551646851 for 5/8" PEX or PEX-AL-PEX).

Features:

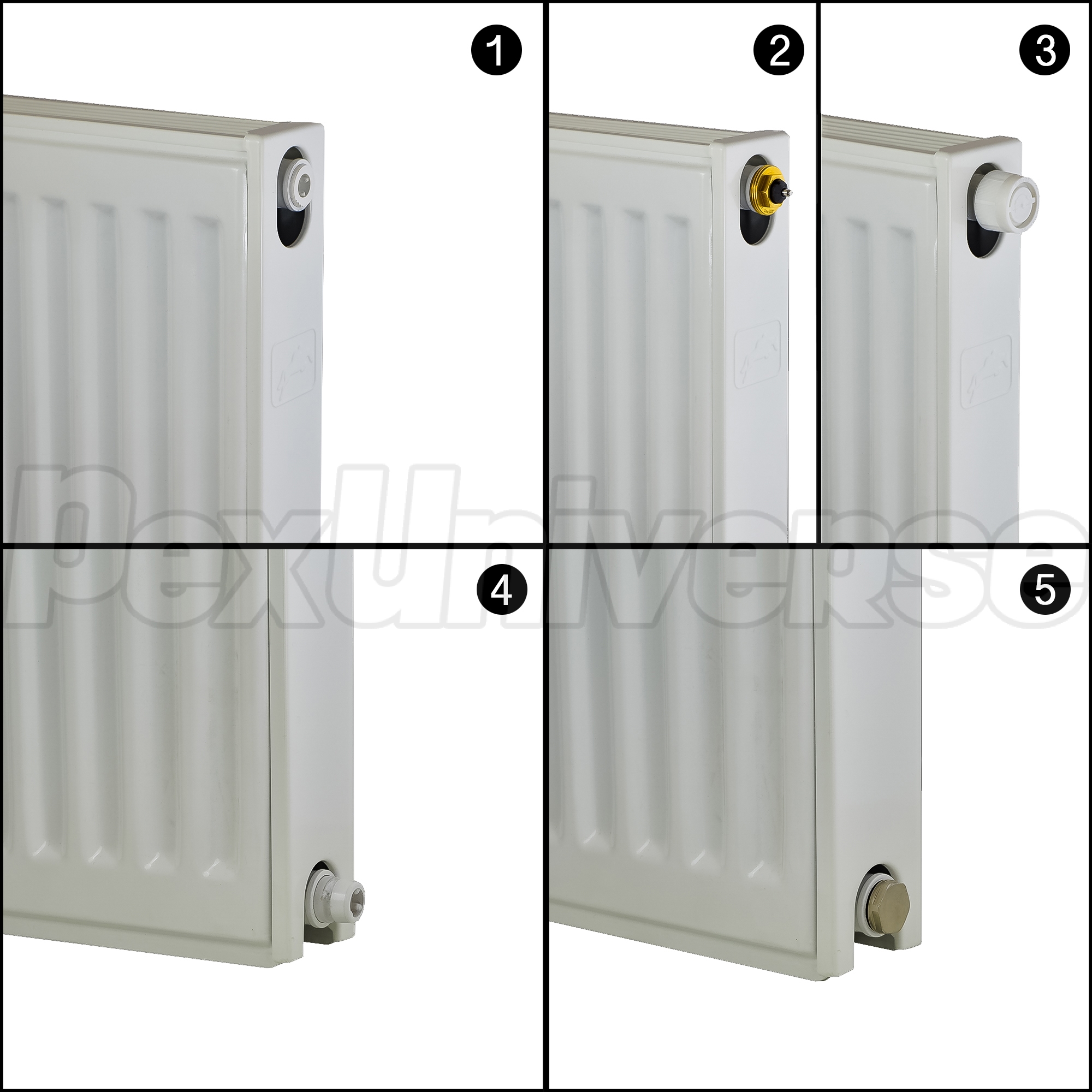

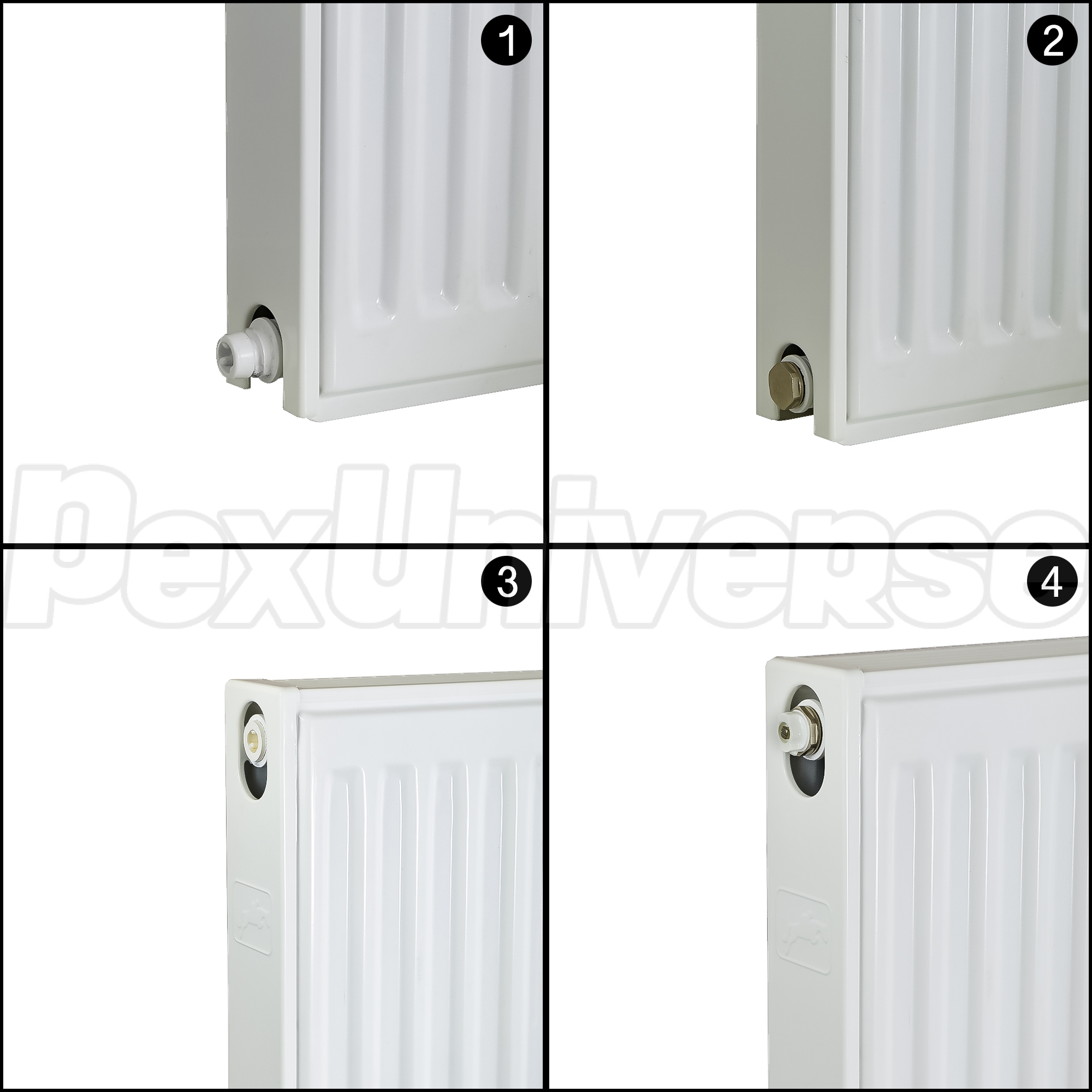

Radiator includes mounting brackets w/ hardware, air vent (manual bleeder style), (2) drain plugs and thermostatic valve body with manual cap
Powder coated white finish is highly resistant to scratching and can be painted
Compatible with all piping configurations - parallel, series and dedicated
Combines convection with radiant heat to offer better efficiency than baseboard and higher level of comfort
Compact design means lower footprint
Wide operating temperature range (120-180F) ensures compatibility with virtually all types and combinations of hot water heating systems
Quiet - no screeching or hissing common with baseboards and steam radiators

Technical Specifications:

Dimensions (H x L x D): 12" x 56" x 4-1/8"
BTU Output @120°F: 1,924
BTU Output @140°F: 3,056
BTU Output @160°F: 4,260
BTU Output @180°F: 5,491
Water Content (Gal): 1.37
Max Operating Pressure: 145 psi
Max Operating Temperature: 200°F

Warranty:
10 years
