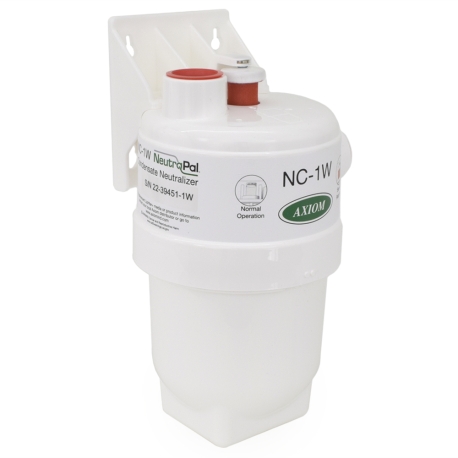

NC-1W NeutraPal Condensate Neutralizer, 1.6 GPH, 400K BTU
Brand: Axiom
Part#: NC-1W
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$61.95 / each
Add to Cart
Orders over $99 ship free

Description

Axiom NC-1W NeutraPal 1.6 GPH is ideal for neutralizing condensate from condensing boilers and furnaces operating on natural gas or propane. The NeutraPal will raise the pH of the condensate to a more neutral level before it is discharged to drain.

Features:
  • NeutraPal prevents acidic condensate from corroding drains and sewer systems

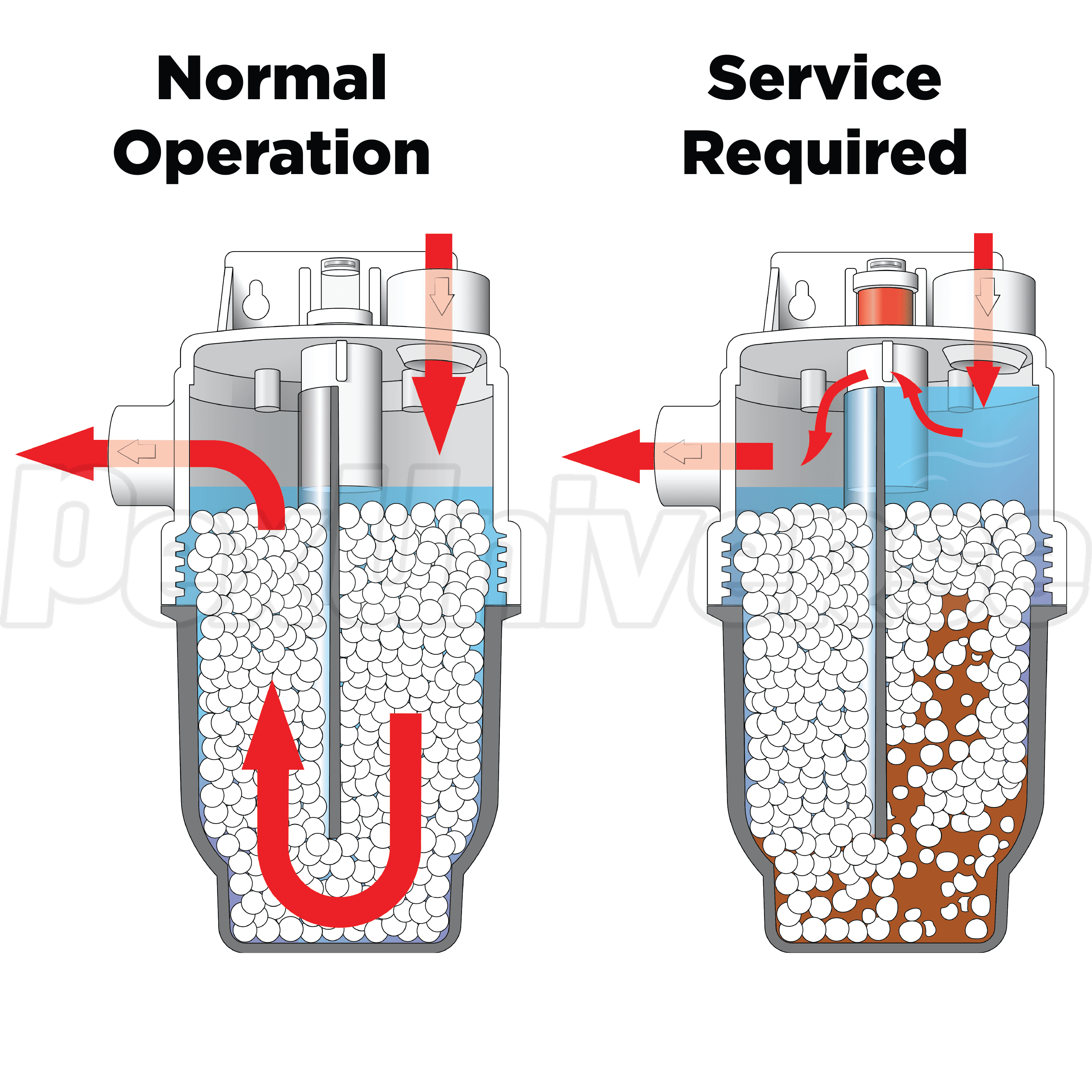

  • Provisionally patented manual reset float system indicates if the unit has become restricted
  • Integral bypass feature prevents condensate backflow into appliance
  • Neutralized condensate is more environmentally friendly
  • Reversible for fast and easy installation
  • Helps maintain a neutral environment for bacteria in septic systems
  • All corrosion resistant materials
  • Suitable for use on all types of Natural Gas and Propane appliances
  • Includes initial charge of LipHter+ neutralizing agent

Technical Specifications:
  • Max. condensate flow rate: 1.6 GPH (gallons per hour)
  • Max. boiler/furnace BTU: 400,000 (at 93% eff.)
  • Neutralizer tank (capsule) capacity: 0.26 gallons
  • Dimensions (L x W x H): 5" x 5-3/8" x 10-1/4"
  • Weight (with neutralizer media): 3.7 lbs
  • Capsule fill/access opening size: 4"
  • Connections: 3/4"-14FNPT
  • Included wall mounting bracket, polyurethane float, and neodymium magnet
  • Replacement media: NM-1

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Neutralizer
Just like the pic. Great product . Perfect match for my water heater .
By Asa (from Casper, WY) on 07/02/2023
Helpful? Yes No
Verified Purchase
Exactly as described; Fast shipping!
Item arrived in timely fashion and was exactly as described.
By Eric (from Canton, NY) on 10/10/2022
Helpful? Yes No
Verified Purchase
Installation
So far so good. Installed easily and looks like it is working
By Fred (from Newton center, MA) on 01/15/2022
Helpful? Yes No
Verified Purchase
Good value
Solid, well made, good price.
By Sean (from Fort collins, CO) on 02/13/2021
Helpful? Yes No
Verified Purchase
Nice features and quality
Got this neutralizer to neutralize the furnace condensate before it is pumped to my septic tank. The NC-1W is really well designed. The build in bypass and bypass indicator is a great feature that simplifies the connections. The threaded inlet and outlet also make it easy to install. Really a well engineered product and it is cheaper than many competitors.
By Richard (from Portland, OR) on 12/01/2020
Helpful? Yes No
Verified Purchase
NC1W
Quality product!
By Mike (from Spirit lake, IA) on 11/28/2020
Helpful? Yes No
Verified Purchase
Compact for nice servicing.
Quality product.
By Tim (from Boonville, IN) on 11/01/2020

FAQs (2)

Ask a Question
Does this come with all the fittings and hose?
Helpful? Yes 3 No
By PexUniverse Customer Service on
My residential furnace has a 3/4" condensate line hard piped directly to a condensate pump. What unit do you recommend and how would I go about installing it? Also, will the neutralizing media breakdown and affect the pump?
Helpful? Yes No
Neutralizing media will break down over time to neutralize the condensate. Breakdown rate depends on the amount of condensate produced (in general 6-12m). It should not affect the pump since impellers in condensate pumps are usually made of plastic. Take note of the Neutralizer specifications to determine compatibility - BTU rating is easy to match to your equipment BTU's.
By PexUniverse Customer Service on 05/23/2022
