NC-1 NeutraPal Condensate Neutralizer Kit w/ Media, 1.6 GPH, 400K BTU
Brand: Axiom
Part#: NC-1
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$71.95 / each
Add to Cart
Orders over $99 ship free

Description

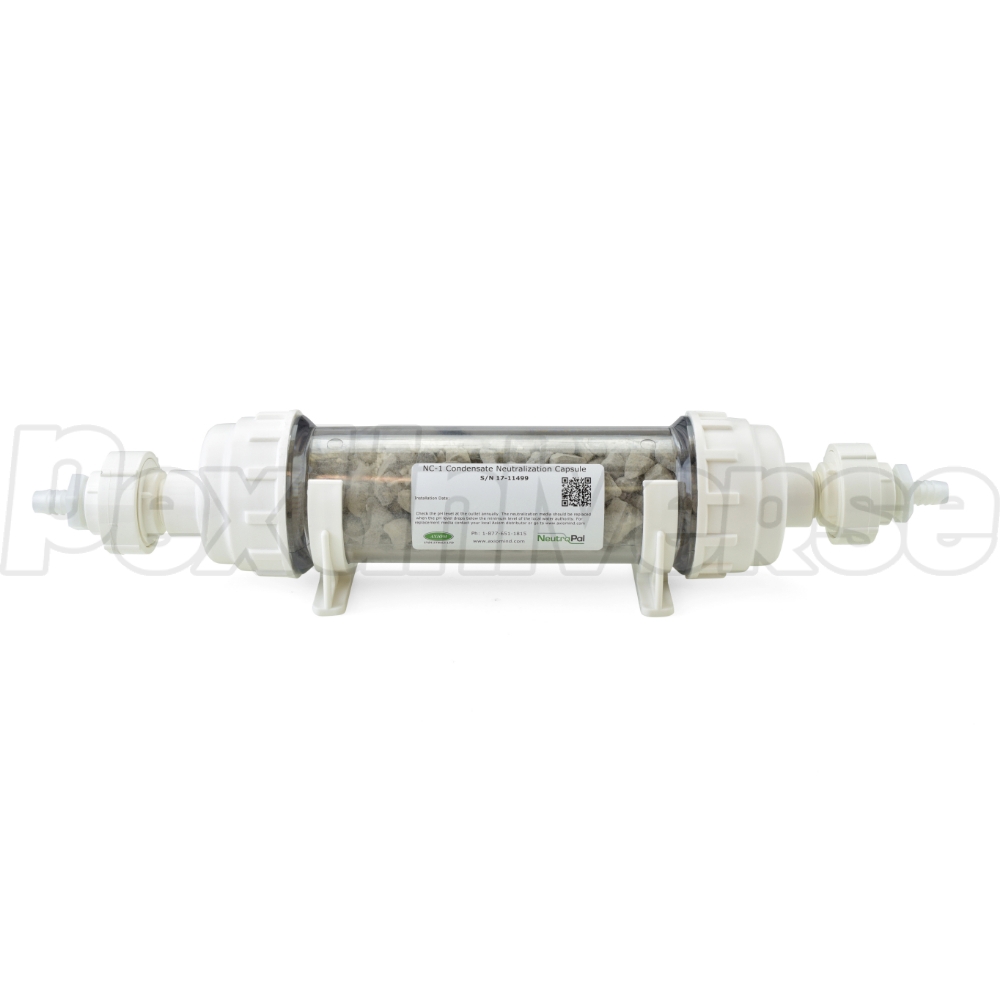

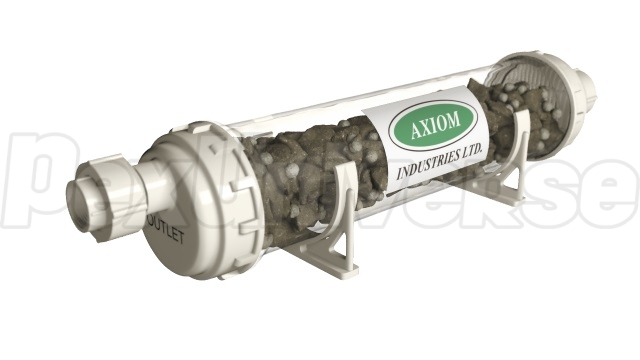

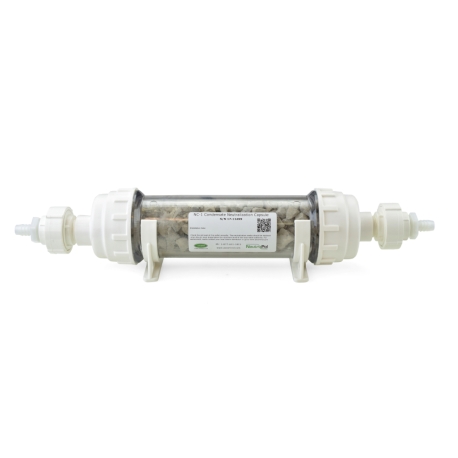

Axiom NC-1 NeutraPal is condensate neutralizer kit, designed to raise pH of the condensate drained from condensing boilers, furnace and other high-efficiency equipment. It is connected directly to the condensate drainage from the equipment prior its entry into the drain. Neutralizing condensate helps to prevent damage to sewage system and the environment. NC-1 kit includes: condensate neutralizer tank (capsule) with neutralizer media, floor/wall mounting brackets, 10ft vinyl hose with fittings and clamps.

Features:
  • Ideal for neutralizing condensate from natural gas/propane condensing boilers, water heaters, furnaces and other high-efficiency equipment
  • Includes Axiom lipHter condensate neutralizer media (pre-installed)
  • Protects sewage piping, bacteria in septic tanks and the environment from damage
  • Economic, fast and easy to install

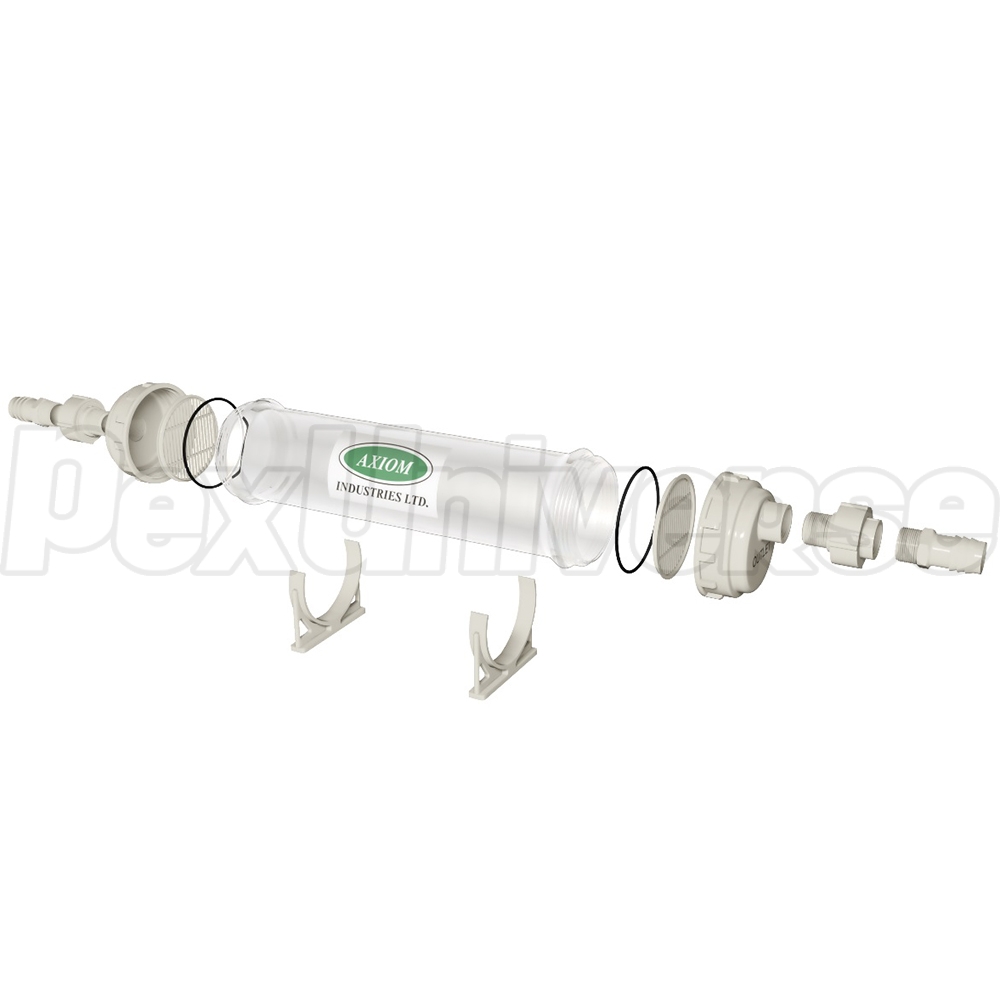

  • Union connections allow for easy disconnect, service and media replacement
  • Can be mounted horizontally or vertically - works both for floor-standing and wall-hung equipment

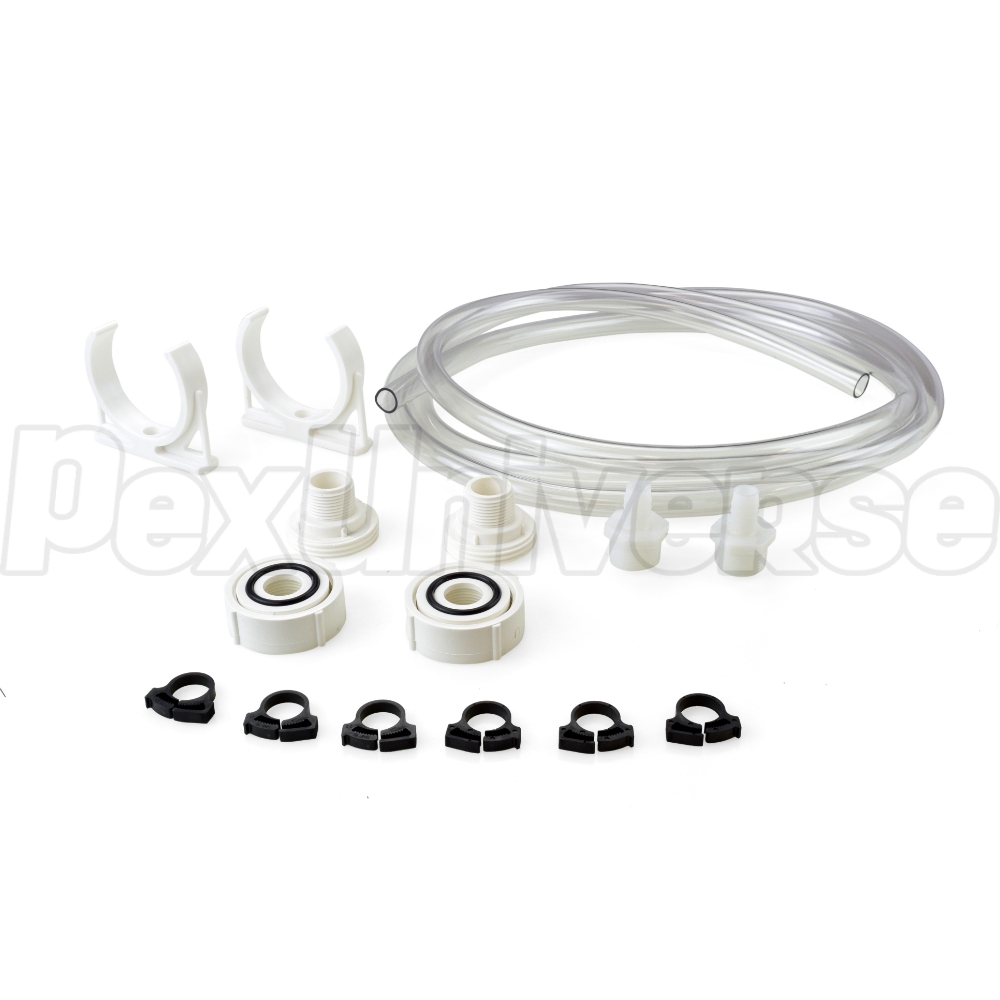

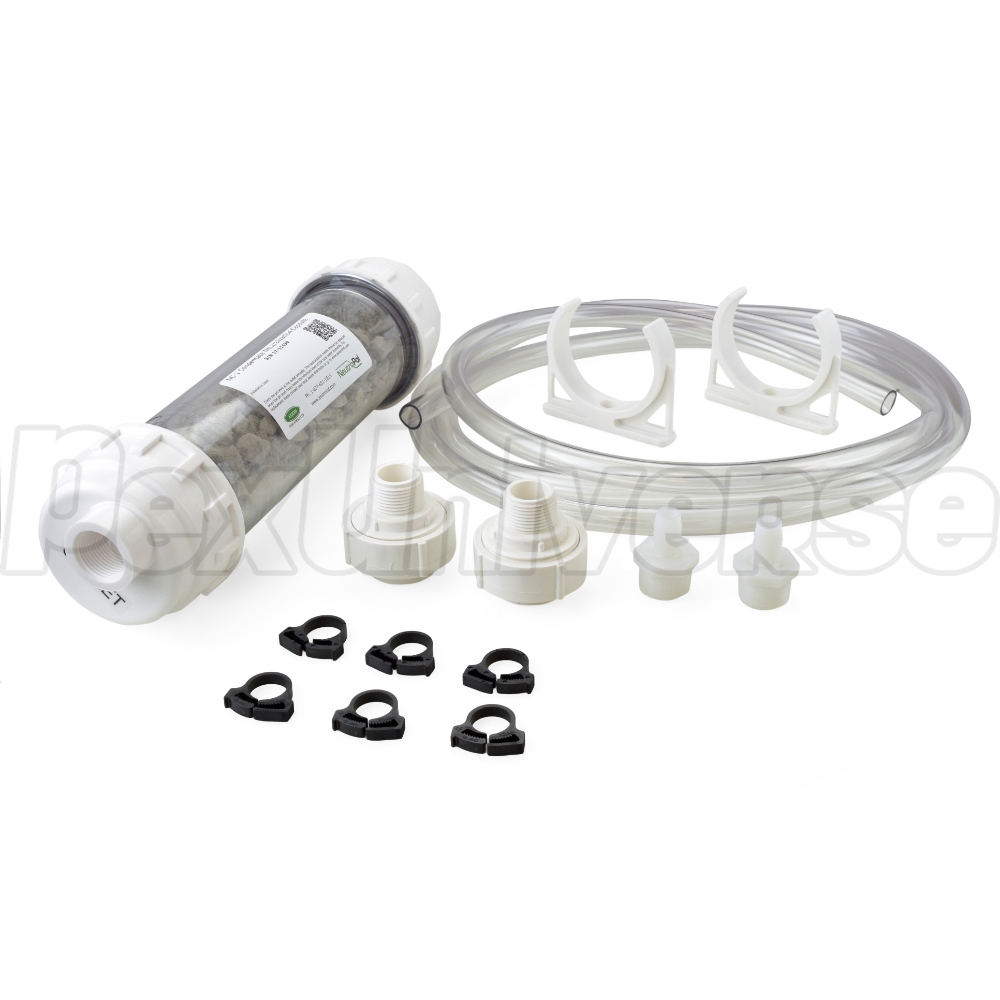

  • Kit includes: capsule w/ condensate neutralizer media, (2) base/wall mounting clips, (2) 3/4" MNPT x FNPT unions, (3) 3/4" MNPT x 1/2" hose barb adapters, (6) hose clamps, 10ft vinyl hose, 1/2" barbed wye fitting.

Technical Specifications:
  • Max. condensate flow rate: 1.6 GPH (gallons per hour)
  • Max. boiler/furnace BTU: 400,000 (at 93% eff.)
  • Neutralizer tank (capsule) capacity: 0.26 gallons
  • Dimensions (L x W x H): 13-3/4" x 3-5/8" x 3-5/8"
  • Weight: 4.4 lbs (with neutralizer media)
  • Capsule fill/access opening size: 3"
  • Connections: 3/4" FNPT, 1/2" hose barb adapters and clamps also included
  • Replacement media: NM-1 (3.0 lbs).

Documents

Write a Review
Helpful? Yes No
Verified Purchase
great value
wanted to replace just the media in my caniste rbut wound up purchasing the whole kit. great price, and now I can just swap out and alternate canisters
By Frank (from Warwick, NY) on 03/22/2022
Helpful? Yes No
Verified Purchase
Condensate Nuetralizer kit
Great Kit ,It had all the connectors I needed ,Easily installed ,Very Important to have on your system
By Christopher (from Copiague, NY) on 02/17/2022
Helpful? Yes No
Verified Purchase
looks good
easy install, everything was there. Haven't tested the output- I am taking that on faith.
By T (from Santa fe, NM) on 11/17/2021
Helpful? Yes No
Verified Purchase
Neutralizer kit
Fit my requirements.
By Fred (from Littleton, CO) on 01/27/2021
Helpful? Yes No
Verified Purchase
Just what I needed!
This kit had everything I needed, & worked just right! Thanks PexUniverse!!
By Charles (from Sheridan, WY) on 06/10/2020
Helpful? Yes No
Verified Purchase
Parts on Hand
Good for backup to existing unit on furnace.
By Robert (from Plymouth, MA) on 06/09/2020
Helpful? Yes No
Verified Purchase
NC-1
Excellent product.
By Nelson (from Newton, MA) on 09/02/2019

FAQs (3)

Ask a Question
How often does this unit need to be replaced? Mine was installed with new furnace on 5-2-2017
Helpful? Yes 6 No
The unit itself does not need replacement - only the condensate media. Manufacturer says to replace the media as needed, i.e.- check the container periodically to ensure there's enough inside.
By PexUniverse Customer Service on 08/22/2018
Is there a tool to remove the end caps of the Condensate Neutralizer when replacing the media ?
Helpful? Yes 3 No
No, there's no tool included and neither is it needed. The leaks are sealed off with O-rings and the caps are screwed on minimally, so they are fairly easy to remove. You could apply silicon grease on the threads to facilitate future removal.
By PexUniverse Customer Service on 03/23/2020
Are these supposed to be installed vertical or horizontal?
Helpful? Yes No
Horizontal
By PexUniverse Customer Service on 07/28/2023
