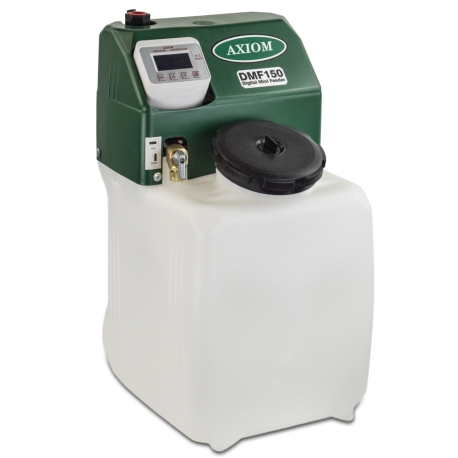

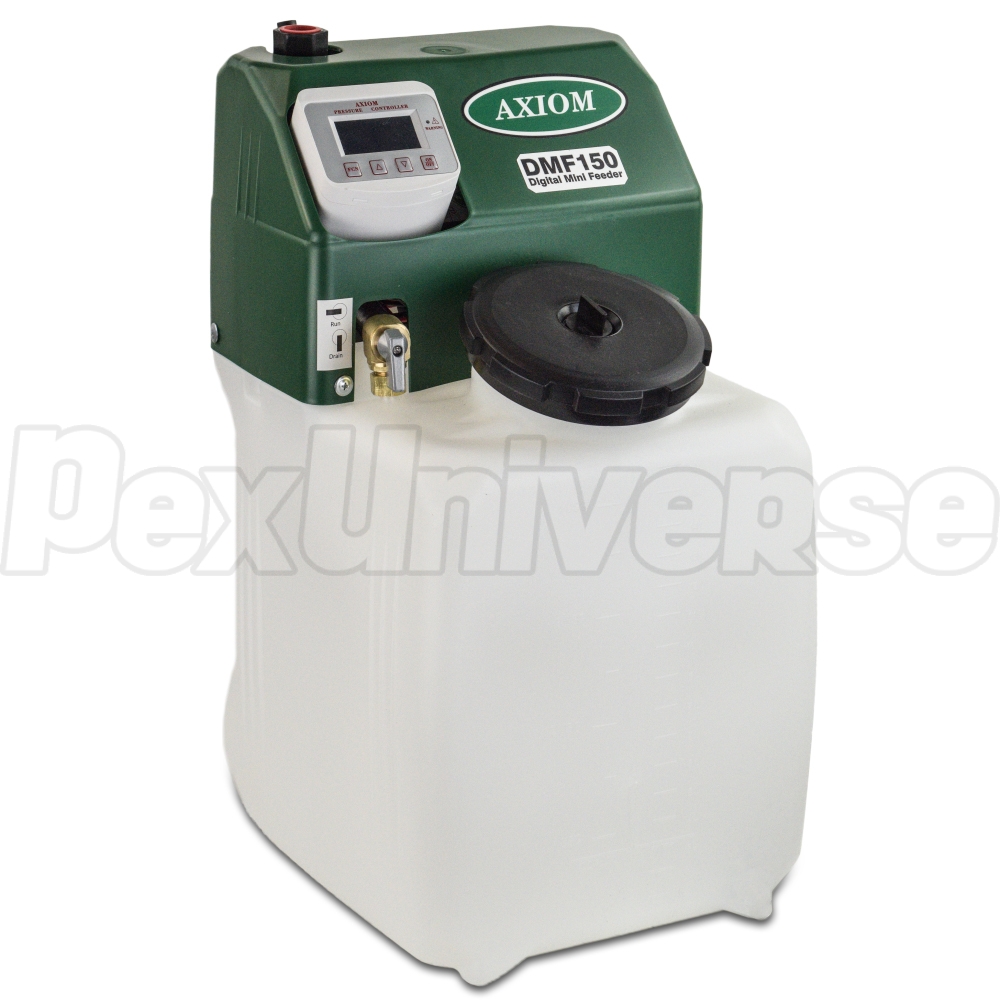

DMF150 PressurePal Hydronic Digital System Mini Feeder, 4.6 gallon
Brand: Axiom
Part#: DMF150
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$515.95 / each
Free Shipping on any qty
Add to Cart

Description

DMF150 PressurePal feeder (4.6 gal) with digital pressure control (0-45 psi) is ideal for feeding and pressurizing closed-loop heating systems with operating pressure of 45 psi and below. It allows for installation of stand-alone hydronic baseboard/radiator heating, radiant floor heating, snow/ice melting systems and forced air coil heat exchangers - without the need for running a separate potable water supply line. Axiom hydronic feeders are compatible with water and up to 50% water/glycol mix solutions and plug directly into a US standard electrical wall outlet - no special wiring or control boxes needed. DMF150 is easy to install & service, saves time & labor and helps to prevent major flooding caused by leaks and ruptured pipes.

Features:

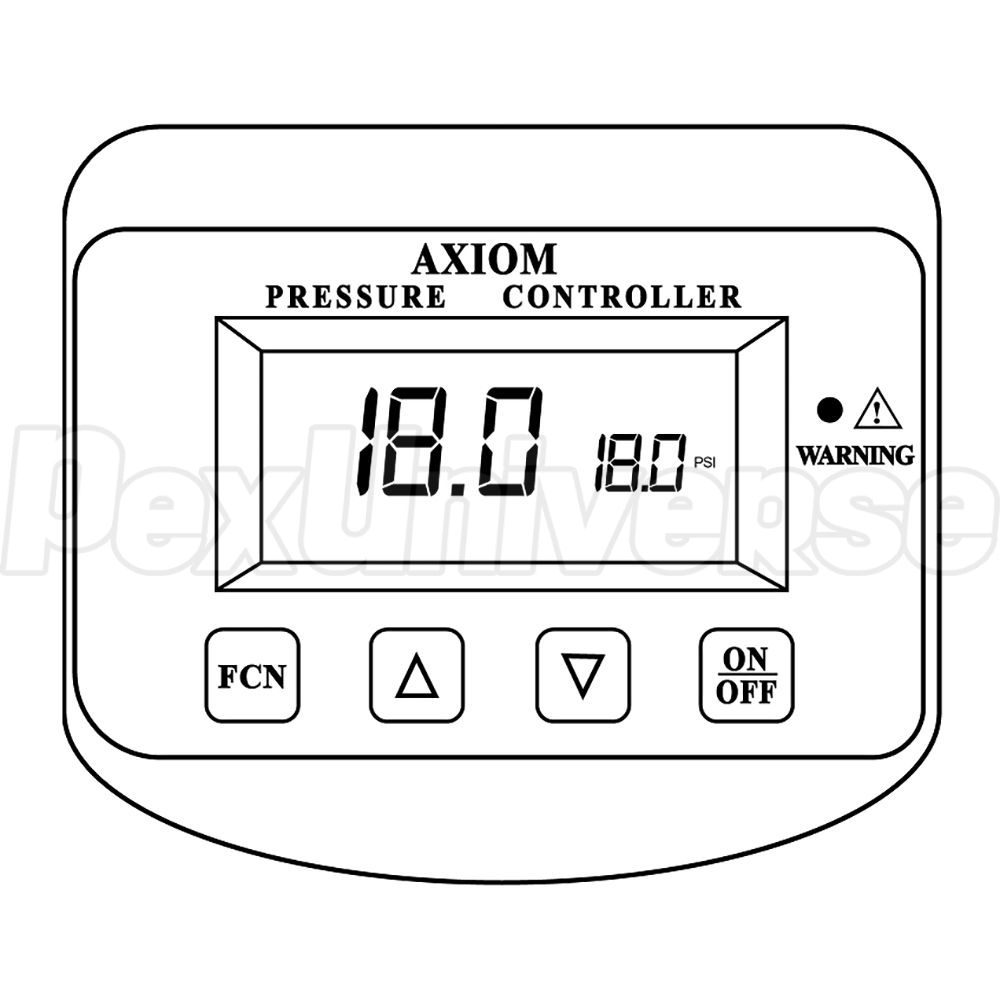

  • All features shown on user-friendly digital display screen
  • 0-45 psi adjustable pressure
  • Normally open or normally closed alert contacts and LED light for low-level, low-pressure, or high-pressure conditions
  • Tilted front easy access

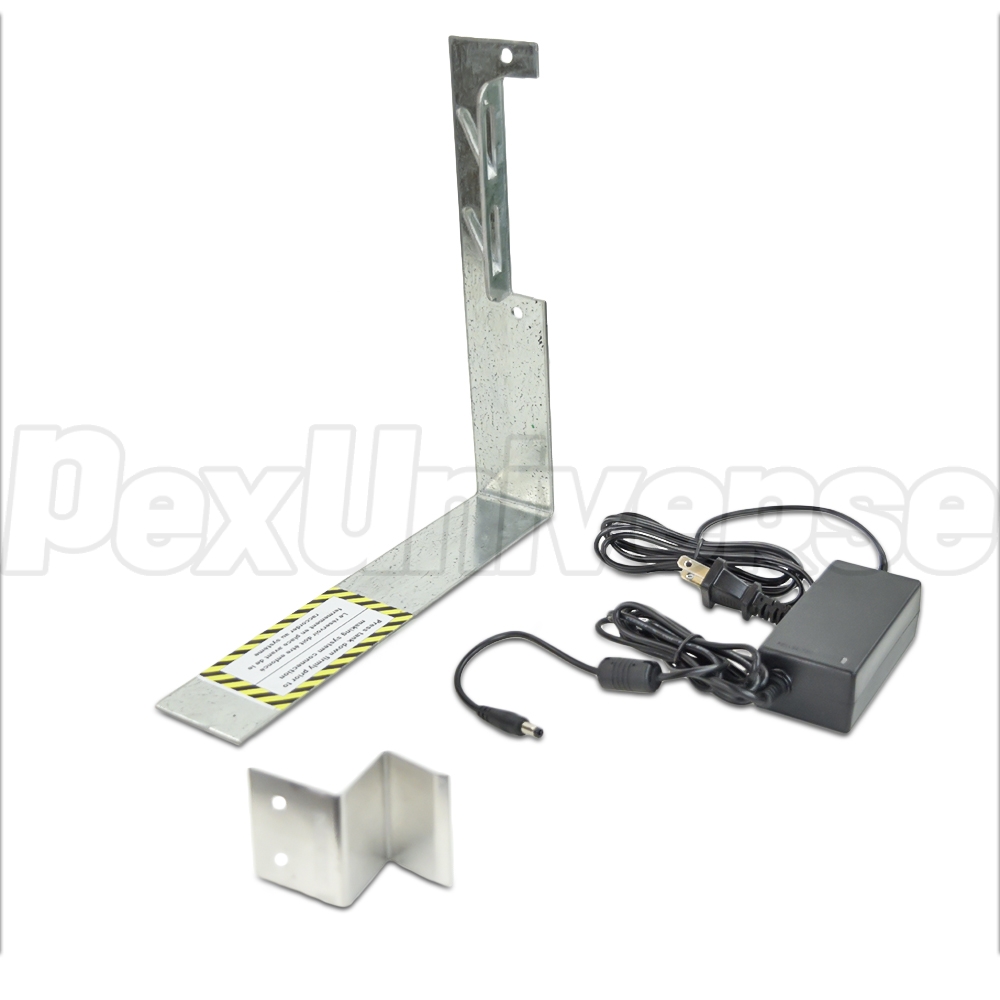

  • Comes with wall mounting bracket
  • Compatible with water & glycol (anti-freeze) mixes
  • Perfect for stand-alone hydronic and radiant heating, snow melting and heating/cooling coils
  • Plugs directly into a standard 115VAC outlet
  • No direct connection to potable water supply eliminates need for backflow prevention
  • Fuse-protected diaphragm pump can run dry without damage
  • Make-up fluid stored in the feeder tank can be pre-treated to meet appliance manufacturers specifications
  • Diverter valve allows easy purging of air on initial start-up and manual mixing of solution
  • Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system
  • Provides leak detection - dropping fluid level provides immediate notice that the system has developed a leak
  • Fluid drained for service can easily be put back into the system

Technical Specifications:
  • 0-45psig (0-310 kPa) pressure setpoint with adjustable dead band
  • Factory cut-out pressure set to 18psig (115 kPa)
  • Tank volume: 4.6 Gallons (17 liters)
  • System connection: 1/2" FNPT
  • Electrical: 115V, 60Hz, US standard 3-prong plug
  • Weight: 9.0 lbs (when empty) or 50.0 lbs (when full)
  • Dimensions (L x W x H): 9.5" (240mm) x 11" (280mm) x 18.25" (460mm)
  • Pump performance: up to 1.0 GPM (3.78l/m) @ free flow, self-priming up to 4ft (1.2m)
  • Max. glycol concentration: 50%
