Astro 250CI 3-Speed Circulator Pump, 115V Armstrong

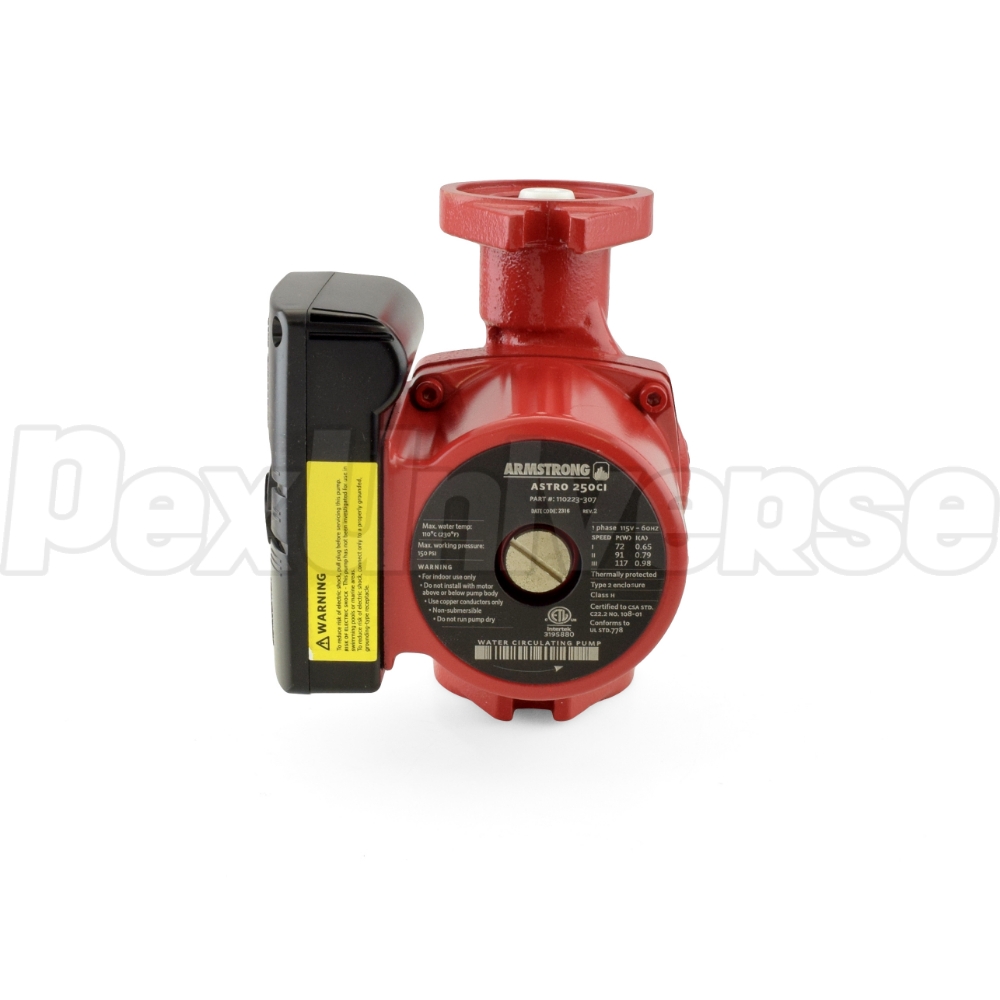

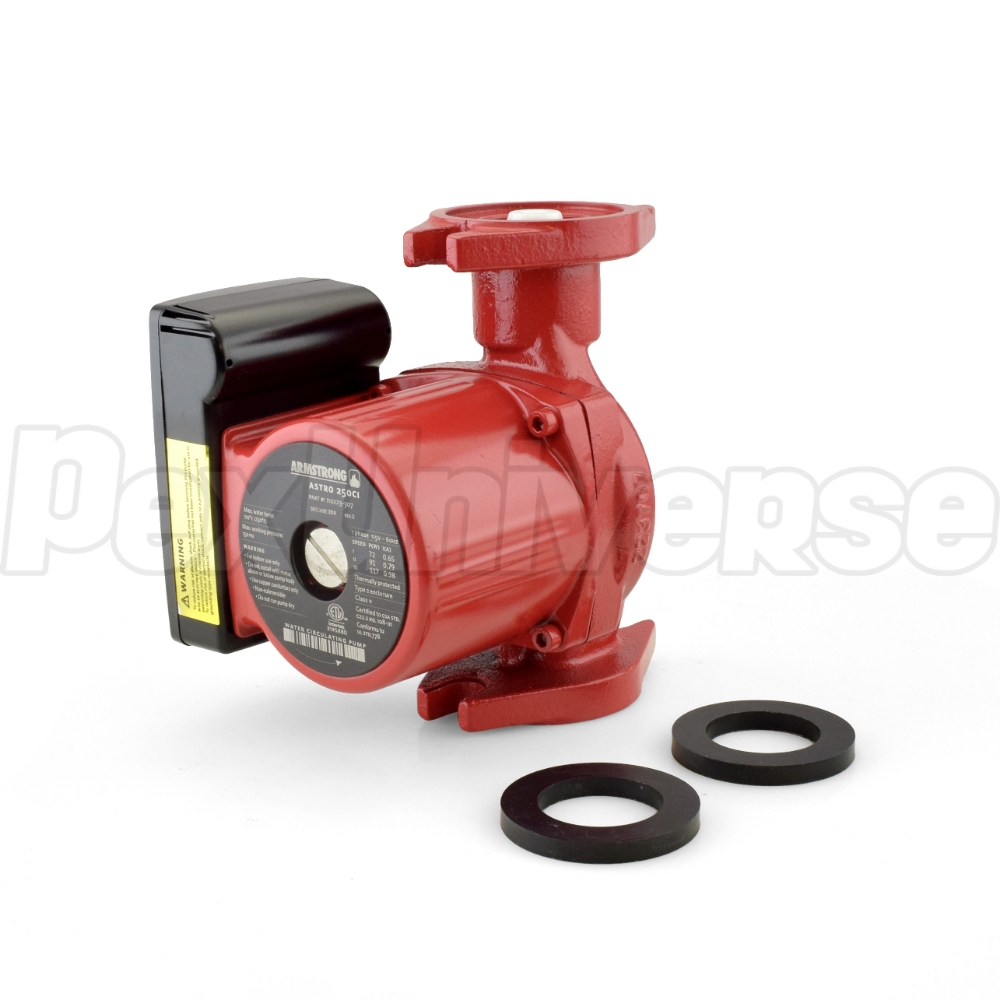

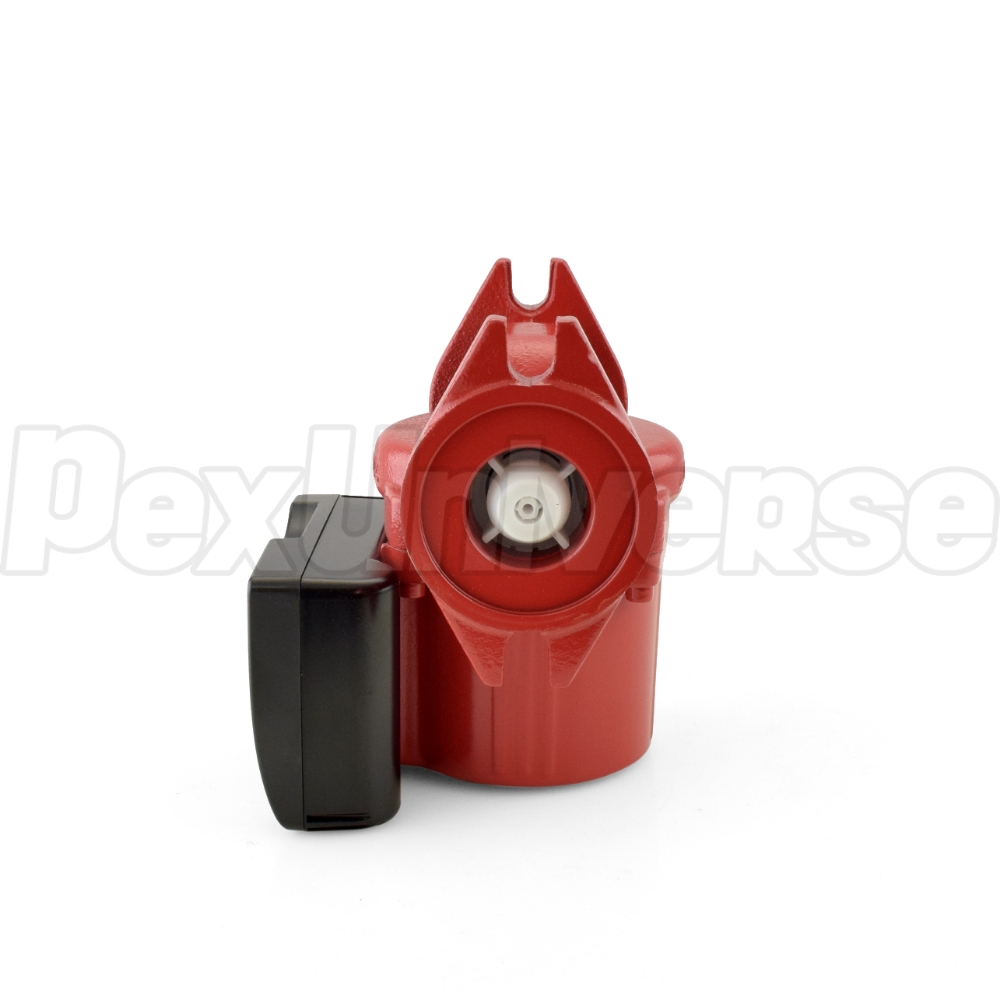

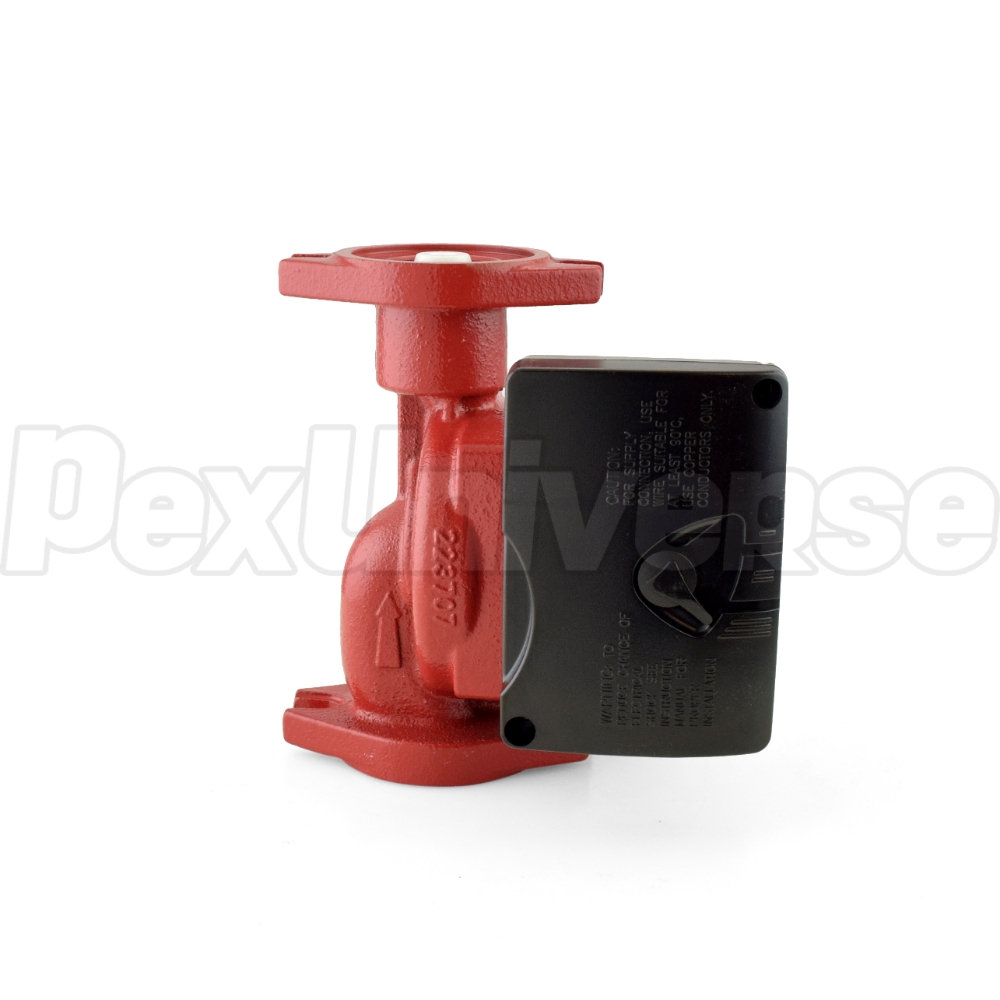

Astro 250CI 3-Speed Circulator Pump, 115V

Brand: Armstrong

Part#: 110223-307

In Stock

(Check qty)

(1)

Estimate delivery

Usually ships: within 1 business day

Pick Up available (Save ${{ (Math.round(Math.abs(pickupPrice) * 100) / 100).toFixed(2) }})

Pick Up ready by {{ pickupBy }}

Usually ready: within 1 hour

Description

Astro 2 series, 250CI model is a 115V, 3-speed flanged circulator designed for closed-loop heating applications. 3 speeds (Low/Med/Hi) cover a wide range of single and multi-zone applications in radiant floor heating, fan coils, radiator/baseboard and other systems.

Cross-References:

Taco 0015-MSF series
Wilo Star S 21FX.

Features:

Designed for use in closed-loop heating applications - hydronic, baseboards, radiant floor heat, etc.
e-Coating on the inside of the pump provides an enhanced corrosion protection for longer pump life and less debris in the system
Large wiring box and convenient plug-in terminal strip
3-Speed functionality
cETLus listed
Standard flange (2-1/2" OC holes), compatible with other brand flanges & isolation valves.

Technical Specifications:

Electrical: 115V, 60Hz, 1 Phase
Nominal Power: 117 Watts
Amp Draw: 0.65A @ Spd 1
0.79A @ Spd 2
0.98A @Spd 3
Max. fluid temperature: 230°F
Max. ambient temperature: 104°F
Max. operating pressure: 150 psi

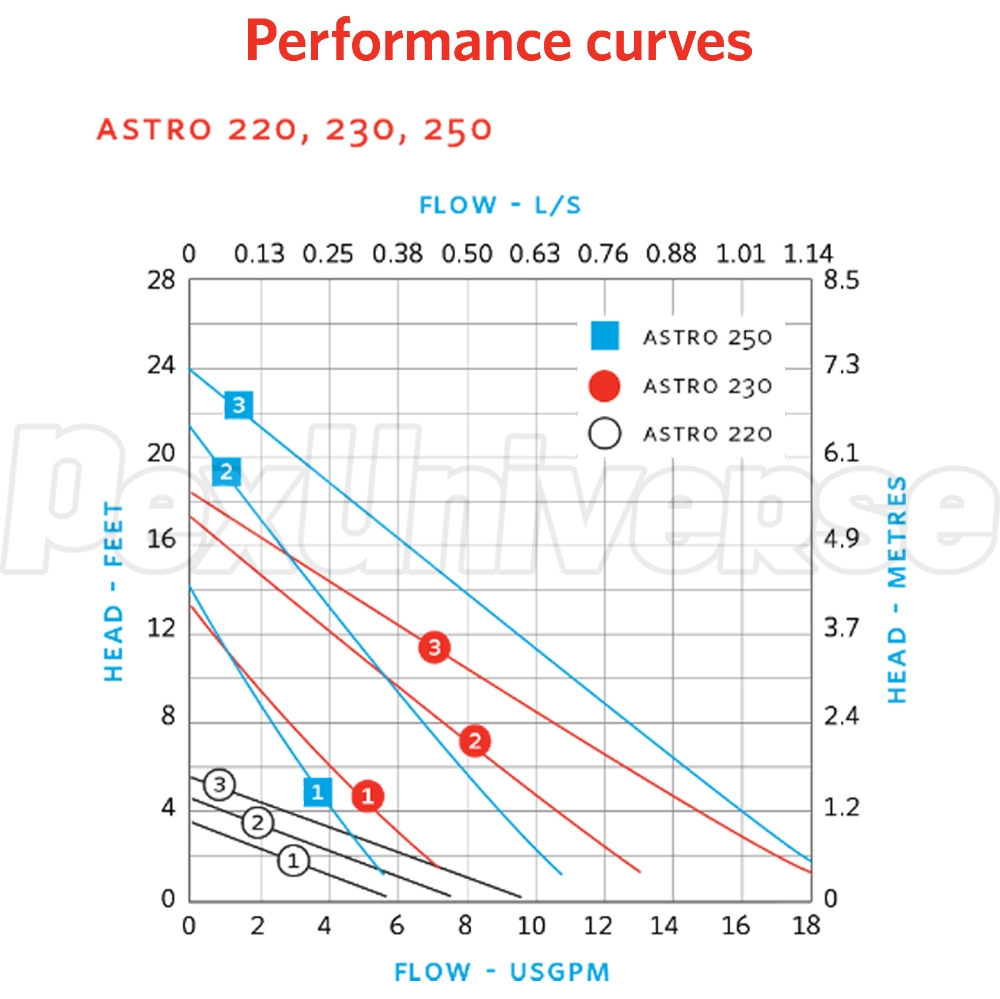

Max flow: 18 GPM
Max. head: 24 ft
Body material: Cast Iron
Component materials: Noryl impeller, ceramix shaft & bearings, EPDM gasket
System connections: standard flange
Circulator flange-to-flange dimensions (height): 6.38" (6-3/8").

Warranty:
2 years manufacturer's warranty.
