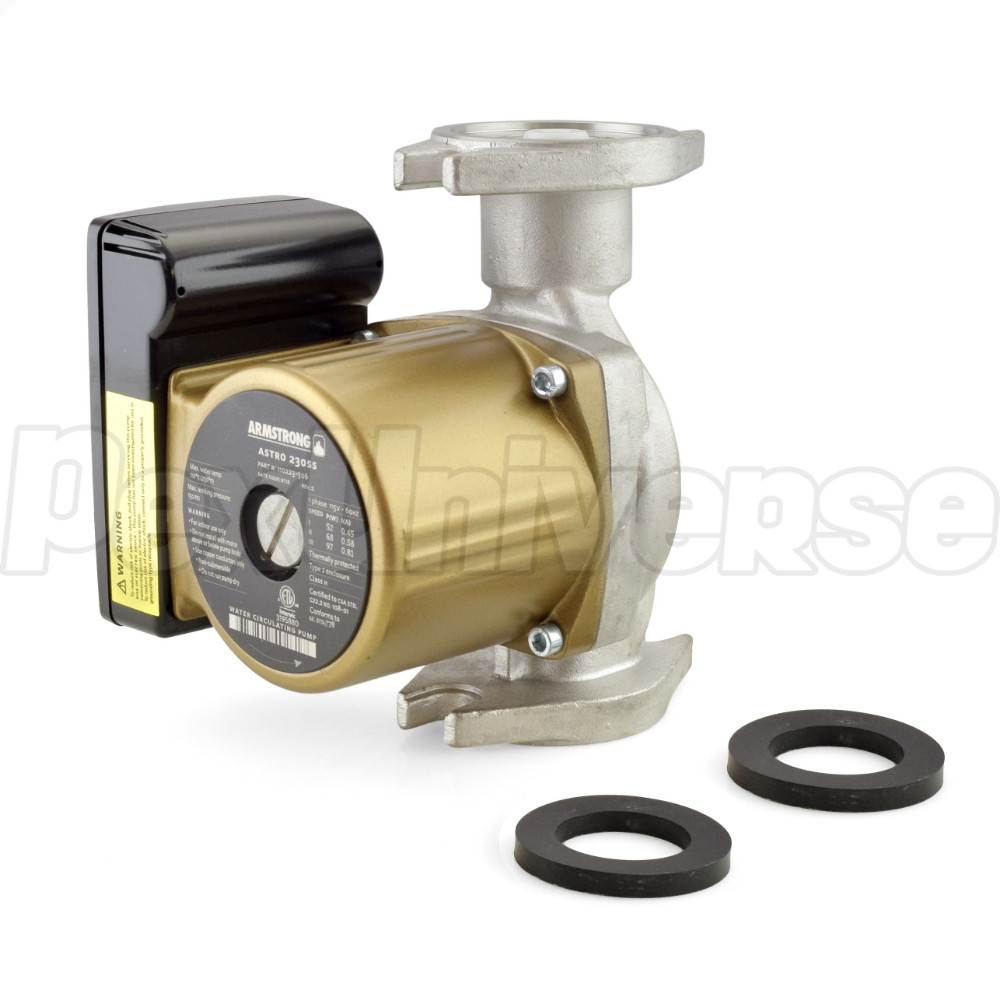

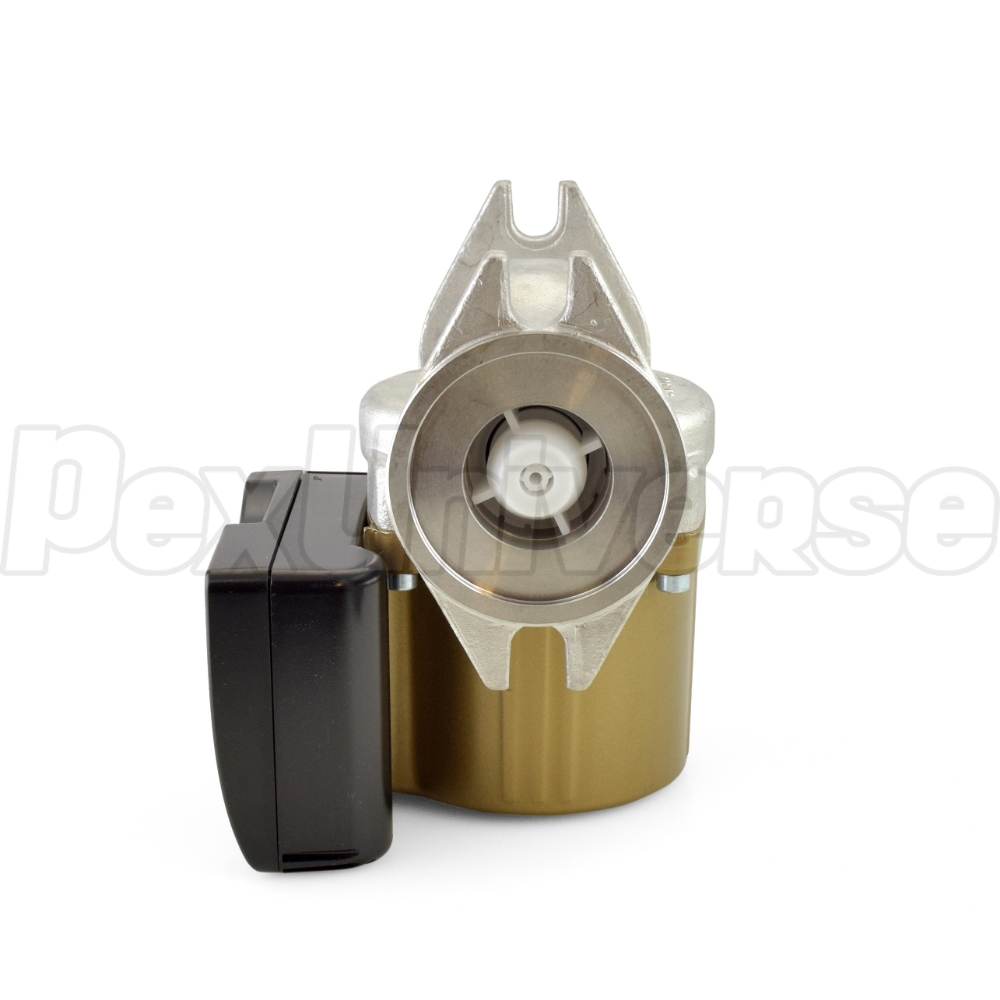

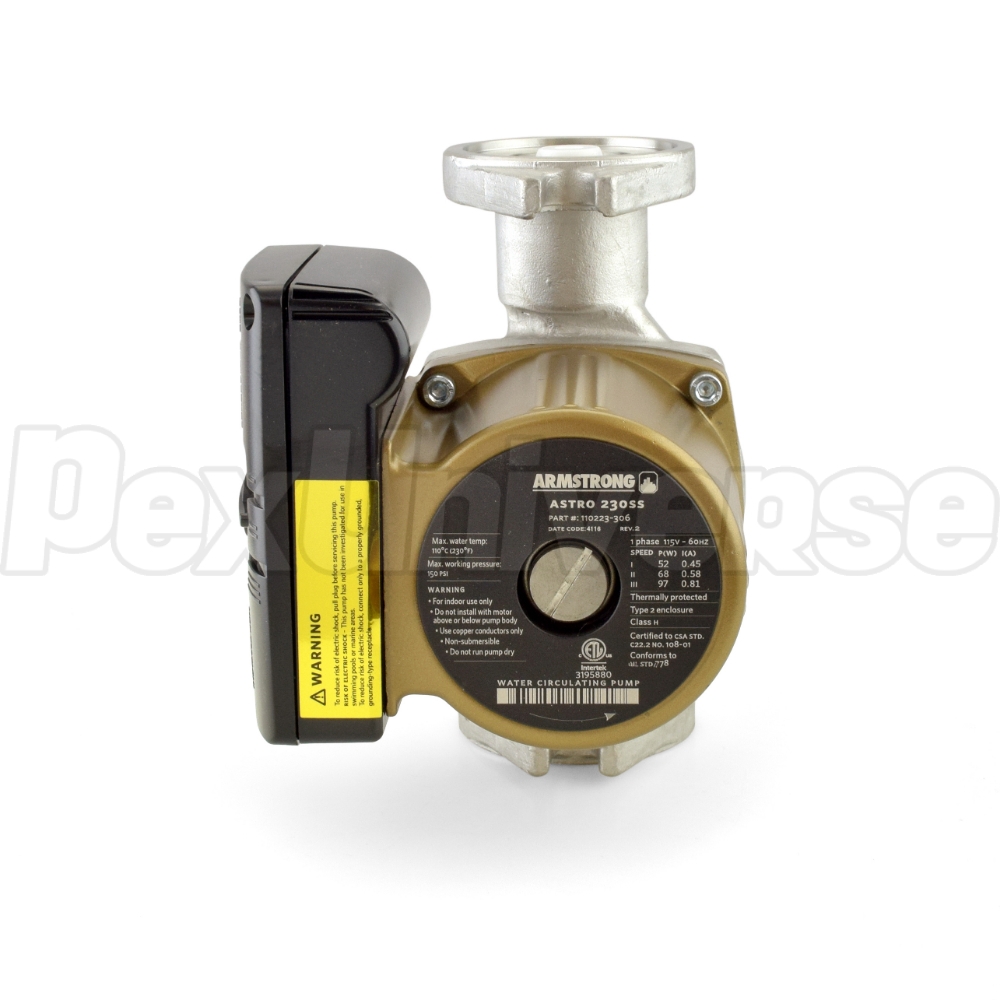

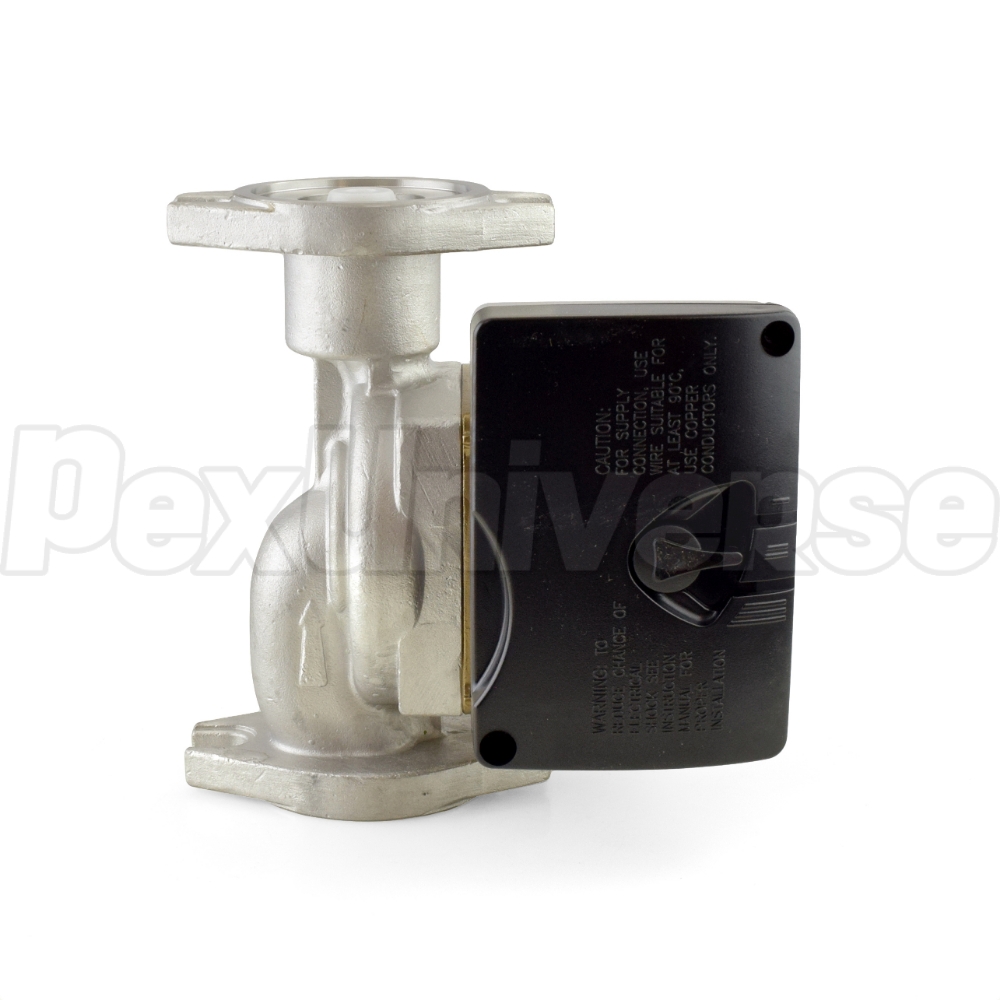

Astro 230SS Stainless Steel 3-Speed Circulator Pump, 115V
Brand: Armstrong
Part#: 110223-306
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$332.95 / each
Free Shipping on any qty
Add to Cart

Description

Astro 2 series, 230SS model is a 115V, 3-speed flanged circulator designed for domestic water or open-loop heating applications. 3 speeds (Low/Med/Hi) offer flexibility in installation of domestic recirculation, radiant heating, baseboard and other systems.

Cross-References:
  • Taco 007-SF5 & 008-SF6 series
  • Grundfos UPS 15-35SFC
  • Wilo Star S 16BFX
  • B&G NBF-22.

Features:
  • Designed for use in open-loop heating applications, including hydronic, radiant heat and others
  • e-Coating on the inside of the pump provides an enhanced corrosion protection for longer pump life and less debris in the system
  • Large wiring box and convenient plug-in terminal strip
  • 3-Speed functionality
  • Lead-free, approved for potable water applications nationwide
  • cETLus listed
  • Standard flange (2-1/2" OC holes), compatible with other brand flanges & isolation valves.

Technical Specifications:
  • Electrical: 115V, 60Hz, 1 Phase
  • Nominal Power: 97 Watts
  • Amp Draw: 0.45A @ Spd 1
  • 0.58A @ Spd 2
  • 0.81A @Spd 3
  • Max. fluid temperature: 230°F
  • Max. ambient temperature: 104°F
  • Max. operating pressure: 150 psi
  • Max flow: 18 GPM
  • Max. head: 18 ft
  • Body material: Lead-Free Stainless Steel
  • Component materials: Noryl impeller, ceramix shaft & bearings, EPDM gasket
  • System connections: standard flange
  • Circulator flange-to-flange dimensions (height): 6.38" (6-3/8").

Warranty:
2 years manufacturer's warranty.

Documents

Write a Review
Helpful? Yes No
Verified Purchase
Pump
Great parts and great service
By Jose on 04/15/2022

FAQs (1)

Ask a Question
how long does it take to circulate water
Helpful? Yes No

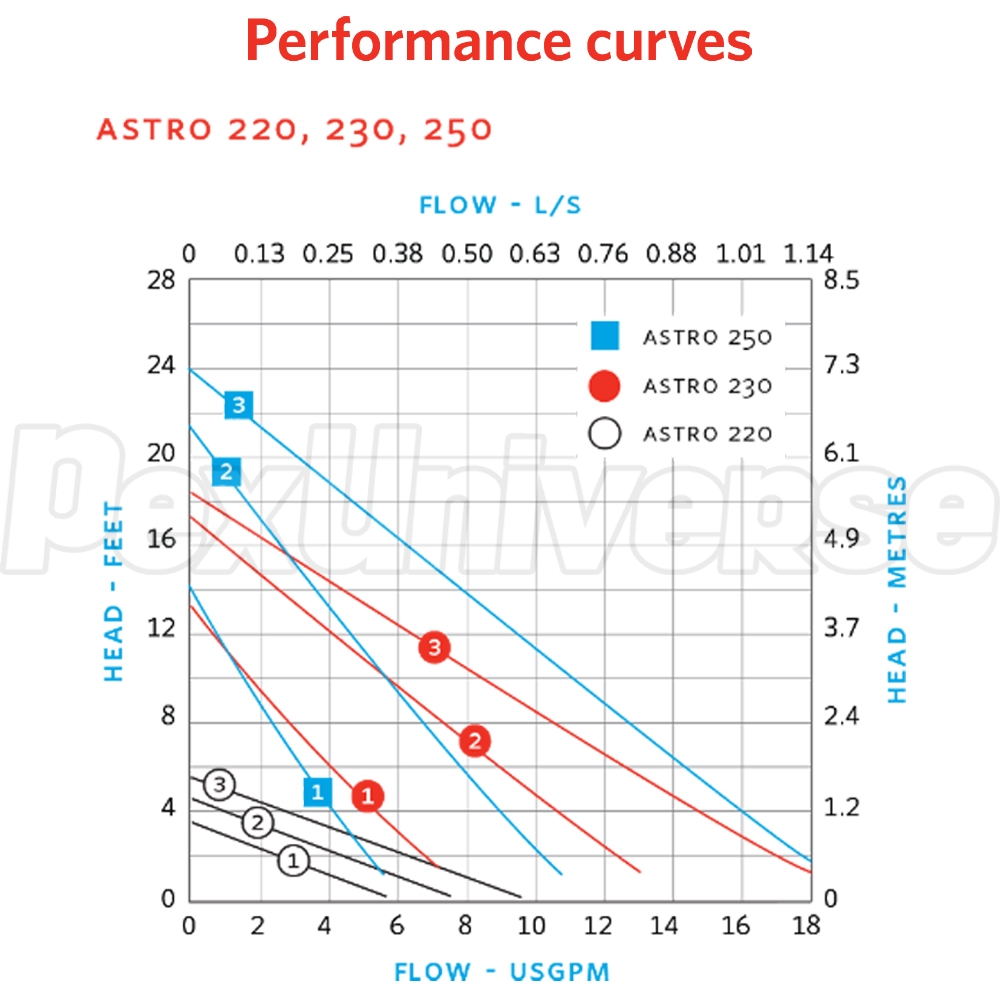

In a medium sized home, this pump can recirculate the water in well under a minute. To determine exact time, you would need to know circulator pump's output (in Gallons per Minute or GPM), which is dependent on the pressure drop it needs to overcome. This model can output about 14 GPM at 4ft of head pressure or ~2 GPM at 14ft of head (see performance chart picture in Literature->Brochure).
By PexUniverse Customer Service on 07/12/2021
