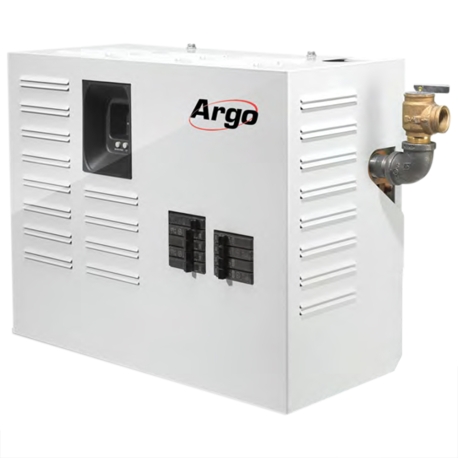

AT244610C Series-C Electric Boiler, 4-Element, 24kW (82,000 BTU) Argo
AT244610C Series-C Electric Boiler, 4-Element, 24kW (82,000 BTU)
Brand: Argo
Part#: AT244610C
made in usa
Usually ships: within 5-7 business days

Description

Argo AT series C fully packaged hot water electric boiler for radiant floor heating, hydronic baseboard/radiator, solar and other applications.

Cross-References:
  • Burnham: EB-24
  • Electro Industries: EB-S-23 & EB-S-27
  • Stiebel Eltron: HSEB024
  • Thermolec: B-23U FFB-H

Features:
  • Made in the USA
  • Solid and time proven, 1-piece cast iron heat exchanger with 20-year warranty
  • 100% efficiency - no gas chimeny/vent pipe needed, zero emissions and no carbon monoxide
  • Ultra-compact, lightweight, wall-hung design
  • Ideal for radiant heating, baseboard and solar projects and applications requiring special temperature settings
  • Automatic cycling of heating elements (replaceable) for extended life
  • Advanced load management provides the option to allow your utility to remotely manage the boiler, reducing peak demands
  • Two separate temperature set points for heating and DHW
  • Built-in dry fire, brown out and freeze protection, replaceable fuses, operating limit & high limit protection, audible alarm
  • Connections for flow switch (optional), LWCO (optional), 3-wire (or 2-wire) thermostat and circulator pump (w/ exercise option)
  • LED display w/ button interface for easy programming & diagnostics

Technical Specifications:
  • Boiler Net BTU Rating: 82,000 BTU
  • Boiler Size (Watts): 24,000W
  • Voltage: 240V, 3-wire, 50/60 Hz, single-phase (can be used at 208V with reduced output - see manual for details)
  • Amps: 100A (Heating Elements), 6A (Pump/Accessory Load), 106A (Total)
  • Minimum Circuit Ampacity: 132.5A
  • Suggested Breaker Size: 150A
  • Recommended Copper Wire: 2/0 AWG (140F/60C), 1/0 AWG (167F/75C), 1 AWG (194F/90C)
  • Number of Heating Elements: 4
  • Heating Element Size: 6,000 Watts
  • Plumbing Connections: 3/4" NPT Supply & Return, Pressure Relief Valve, Air Vent and Flow Switch Tee; 1/4" NPT Temperature & Pressure Gauge
  • Water Temperature Heating Range: 90°F - 180°F (adjustable - for radiant, baseboards, etc.)
  • Max Pressure: 30 psi (relief valve setting)
  • Minimum Flow Rate (at 20°F rise): 8.2 GPM
  • Dimensions: 14-5/8" High x 18-5/8" Wide x 9" Deep
  • Weight: 70 lbs

Warranty:
20-year heat exchanger warranty, 1-year parts warranty.
