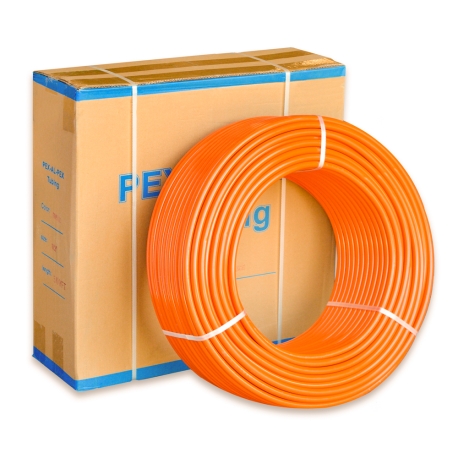

1/2" x 500ft PEX-AL-PEX Tubing Everhot
1/2" x 500ft PEX-AL-PEX Tubing
Brand: Everhot
Part#: APX1250
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$229.95 / each
$891.80 box of 4
($222.95 each)
Free Shipping on any qty
Add to Cart

Description

Note: a PXT3511 reamer tool is required for all PEX-AL-PEX connections.

500ft roll of 1/2" PEX-AL-PEX Tubing for use in radiant heating applications.

Meets/exceeds ASTM F1281, CSA B137.10 standards.
Also certified for use in domestic water applications. UPC listed by IAPMO.
Pressure rated at: 80psi @ 200F, 160psi @ 140F, 200psi @ 73F.
Packing: Box. Dimensions: 26" x 26" x 10". Weight: 39.0 lbs


Everhot PEX-AL-PEX Tubing:

  • Is manufactured to ASTM F1281 & CSA B137.10 standards.
  • Tested and Certified by NSF for potable water applications and complies with NSF/ANSI 61 standard.
  • Lead-Free Certified by NSF, complies with NSF/ANSI 372 (nsf-pw-g) standard and SDWA guidelines, lead-free compliant for all of the USA.
  • NSF Certified to the Uniform Plumbing Code (UPC).
  • Meets chlorine resistance requirements when tested in accordance with ASTM F2023.

Applications:

1/2" PEX-AL-PEX Tubing is commonly used for radiant heating applications projects such as concrete slabs (wire mesh or rebar reinforced), thin slabs (non-reinforced), below the subfloor heating (staple-up), sandwich type installations (between subfloor and finished floor) and many others.

Typical loop length for 1/2" PEX-AL-PEX varies from 250ft to 350ft, depending of the application, supply temperatures, flow rates, etc. 300ft is considered standard for typical concrete slab install.


Compatibility:

PEX-AL-PEX tubing can be installed using compression style PEX fittings of Press type system (fittings, sleeves and tools).


Cross-References:
  • Watts (RadiantPEX-AL): RL0508-500-OR
  • Zurn (Alumicor): Q3PAP500X
  • And same size Multicor (Uponor) and FostaPEX (Viega) tubing in similar coil lengths
Write a Review
Helpful? Yes 7 No
Verified Purchase
No issues with this product so far.
I installed this product into the concrete slabs on my new home and other than one cut where a guy got a little too close with a chainsaw, I have had no leaks so far. You do have to be a little careful to not kink the product since the aluminum layer tends to hold whatever shape you bend it to, but this was only when I wasn't paying attention. If you use your hands to form the bends, there isn't any issue.
Length: 300'
By Contractor (from Chicago) on 12/18/2015
Helpful? Yes 1 No
Verified Purchase
Retrofitting
I've installed both PEX and ONIX in retrofits as staple ups. Often times in a retrofit you don't have an open joist bay because of wires, pipes, or framing that crosses the joist bay below the floor where you need to install the tubing. With ONIX in particular, but PEX too if its reasonably warm, its possible to feed the tubing in an ever enlarging U from one end of the joist bay, through the gap between the bottom of the floor and those barriers. Since PEX-AL-PEX is pretty stiff and doesn't bend easily, its not possible (or certainly not easy) to do that if the joist bay is 16" on center. In antique houses with wide joist bays made from half logs or heavy framing, and in the wider bays, like 24"+, it is possible. So if you going to retrofit staple-up in a conventionally framed house you might be better off using PEX or ONIX because they are more flexible. Other than that I really liked the product - holding its shape, the low expansion rate compared to PEX, and the must lower cost compared to ONIX are great features.
Length: 300'
By Scot (from Millerton, NY) on 01/23/2022
Helpful? Yes 1 No
Verified Purchase
Couldn't ask for more
This was my first order with Pexuniverse. They will be my go to place form here on out. My order arrived very fast, I got email updates every step of the way, and the order was 100% correct.
Length: 300'
By Fred (from New windsor, NY) on 08/03/2021
Helpful? Yes 1 No
Verified Purchase
PEX-AL-PEX is easy to work with
I have installed this in my 1700 SF house with the sandwich system above the subfloor. It snaps into the Omega style aluminum heat panels installed between the 3/4 plywood sleepers. This PEX holds its shape and takes just one person to get the tubing installed. I am a DIY person and my original reason for getting PEX AL PEX was its reduced expansion and contraction with temperature changes. (eliminates ticking) . Another thing I did before installing was to use a foam brush and put a thin coat of silicone in the channel of the heat panels.
Length: 300'
By Robert (from Plymouth, MN) on 10/01/2020
Helpful? Yes 1 No
Verified Purchase
Pez AL
Great product, takes a little while to get the hang of pulling through joists without kinking, but worth the effort, quieter and better heat transfer than standard Pex.
Length: 300'
By Mark (from Searsmont, ME) on 03/18/2020
Helpful? Yes No
Verified Purchase
Great product!
PEX-AL-PEX is getting harder to find, and this will work perfectly for my small shop air system.
Length: 300'
By Gary (from Canyon lake, TX) on 08/29/2023
Helpful? Yes No
Verified Purchase
Jessman
Good product! The best for radiant heat!
Length: 500'
By Jesse (from Hudson, NY) on 02/06/2022
Helpful? Yes No
Verified Purchase
Nice stuff
The only thing I wish it had length marking on it. It's hard to measure out 300' runs. I thought it had distance markers on it but it doesn't. Other than that it is nice to work type AL. fewer issues with kinking and forms nicely to the path you put it in (stays exacly where you put it) which is unlike type a or b.
Reply from PexUniverse:
Thanks for your comments, Steve! The pipe IS actually marked every 5ft - it's at the end of the imprint with standards, approvals and other technical stuff.
Length: 1000'
By Steve (from Ponia, CO) on 12/30/2020
Helpful? Yes No
Verified Purchase
Exactly as ordered
Worked well
Length: 300'
By April (from Edgewater, MD) on 11/03/2020
Helpful? Yes No
Verified Purchase
Better than pex
Easy to work with
Length: 1000'
By Owen (from Flushing, NY) on 10/29/2020
Helpful? Yes No
Verified Purchase
should work fine
have not used yet but should work.
Length: 300'
By Larry (from Ottumwa, IA) on 06/21/2020
Helpful? Yes No
Verified Purchase
The stiffness is a plus...
Due to the aluminum layer, the tubing has stiffness but is virtually dead soft to hold a bend with very little springback. Even when my concrete crew stepped on the tube where it crossed the rebar, though slightly crushed out-of-round, it did not create a leak. Just make sure if you've never installed this product before, order the end prep tool (I wish the vendor had recommended it when I ordered the tubing). I found a very effective way to cut the tubing using a Craftsman Edge Razor cutter (or similar) and not just slicing thru but spinning it around to cut thru the first side and then thru the whole thing; significantly reduces distortion. Tubing is marked every 5 feet starting at 300 at outside of roll and counting down.
Length: 300'
By Paul (from Ridge, NY) on 05/08/2020
Helpful? Yes No
Verified Purchase
Great product
Much easier to work with than regular pex!
Length: 1000'
By Travis (from Honeoye falls, NY) on 02/01/2020
Helpful? Yes No
Verified Purchase
Pex-Al-Pex
Most DIYers I talk with don't even know this stuff exists. In the right situations it can be the perfect solution. The 1/2" stuff uses regular size pex fittings, but anything larger requires specialized fittings, which I found out the hard way. So, be warned because the warning is NOT on the website with the products listed.
Length: 300'
By Calvin (from Snowflake, AZ) on 08/22/2019

FAQs (2)

Ask a Question
What is the bend radius?
Helpful? Yes No
Bending radius for 1/2" PEX-AL-PEX is the same as with regular 1/2" PEX pipe - 5". You can read more about bending radius here.
By PexUniverse Customer Service on 11/15/2017
Does this product work with regular pex crimp connections and sharkbite fittings?
Helpful? Yes No
No. PEX-AL-PEX tubing is installed using compression type PEX fittings. Because of the dimensionals and "memory" properties of PEX-AL-PEX, regular PEX fittings (including crimp style and push-fit style such as SharkBite) will not guarantee a leak-free installation.
By PexUniverse Customer Service on 12/05/2012
