1/2" Press Copper 90° Street Elbow, Made in the USA Apollo
1/2" Press Copper 90° Street Elbow, Made in the USA Apollo
1/2" Press Copper 90° Street Elbow, Made in the USA Apollo
1/2" Press Copper 90° Street Elbow, Made in the USA
Brand: Apollo
Part#: 10075566
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$2.95 / each
$26.50 box of 10
($2.65 each)
Add to Cart
Orders over $99 ship free

Description

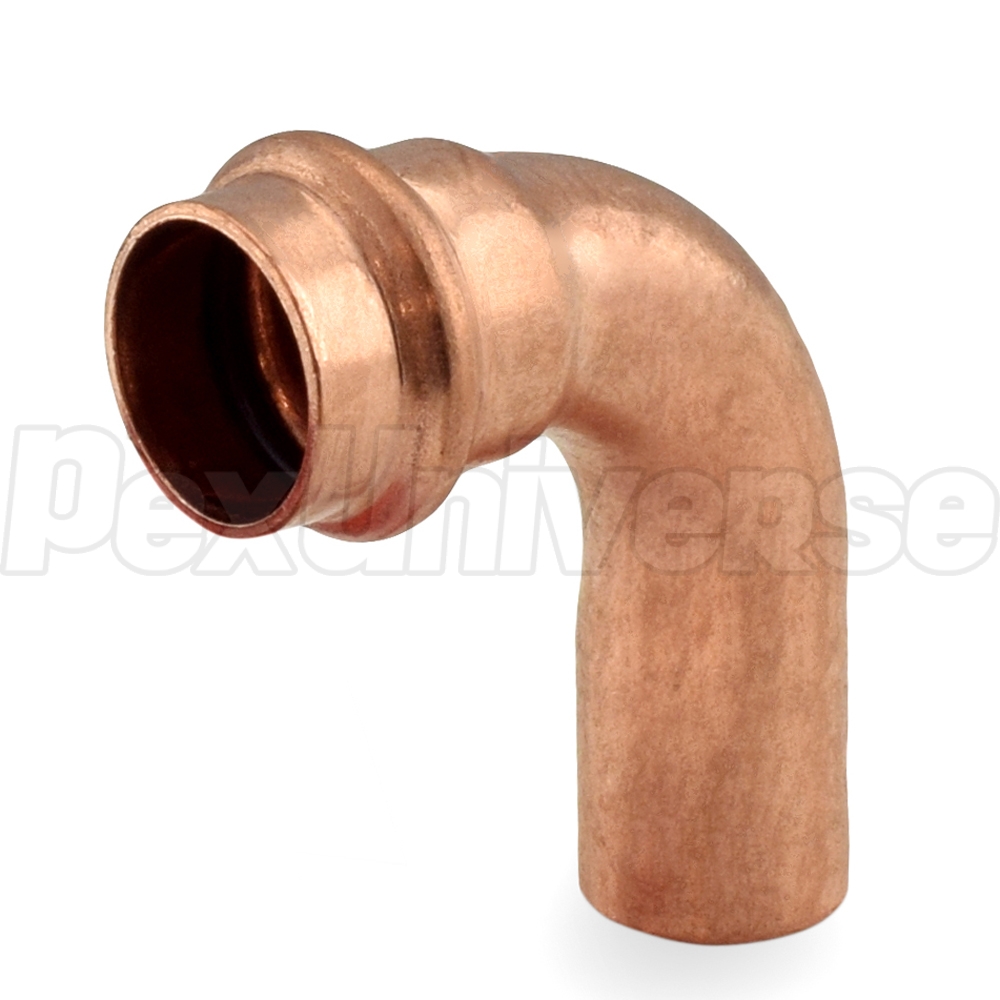

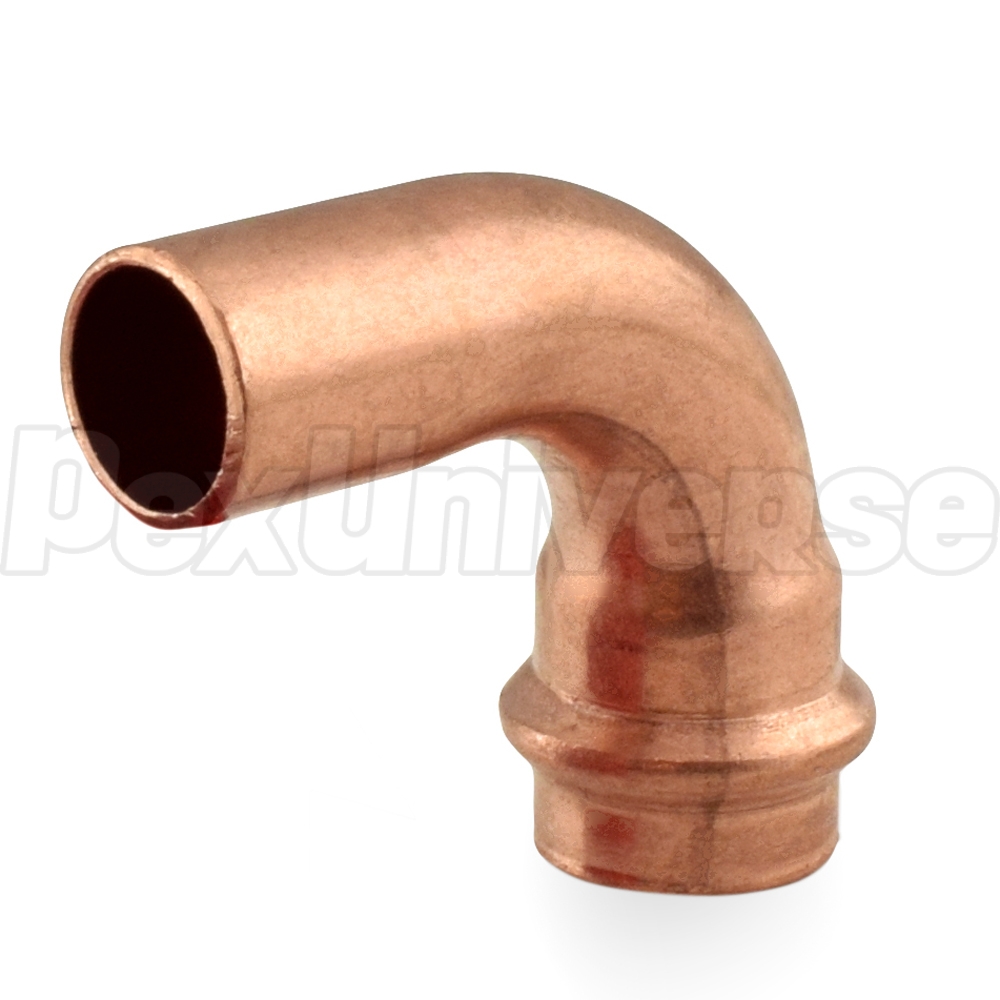

This press elbow fitting connects 1/2" copper pipe to 1/2" press fitting outlet at a 90-degree angle.

Features:
  • Made in the USA
  • Lead-free, approved for potable water use nationwide
  • Meets NSF/ANSI 61 & 372, UPC and ICC compliant (see Literature for complete list of approvals)
  • Applications include hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.
  • Heat & flame-free installation, no fluxing, cleaning, soldering or prep. work
  • Compatible with most compression tools
  • Leak Before Press feature.

Technical Specifications:
  • Hot & cold water: up to 200 psi at 33°F-250°F
  • Low pressure steam: up to 15 psi
  • Compressed air & inert gases: up to 140 psi
  • For use with: K, L & M types hard (drawn) and soft (annealed) copper tubing
  • O-ring material: EPDM
  • O-ring lubricant: NSF/ANSI 61 listed silicone oil.

Documents

Write a Review
Helpful? Yes 3 No
Verified Purchase
Good sized
I wanted this size as it is just slightly oversized for my needs...50 gal water heater and 60 psi pressure. I was seeing 75 psi avg and excursions up to 120 psi before I put in pressure regulator and expansion tank. Now I only see 60 psi avg and 70 psi peak.
By Verified Buyer on 06/17/2016
Helpful? Yes No
Verified Purchase
Trustworthy
Great service, fast shipping, satisfaction follow up. Great vendor.
By Edward (from Vancouver, WA) on 03/02/2020

FAQs

Ask a Question
Do you have a wall mount for the Therm-X-Trol ST-8 Thermal Expansion Tank 3.2 Gal?
Helpful? Yes 1 No
Yes. It's part# 598-0210
By PexUniverse Customer Service on 12/12/2016
Need an expansion tank for a crown boiler, 112 BTU, water heater heater is 40 gallons. Both natural gas. Can you recommend a Amtrol one.
Helpful? Yes No
According to the sizing charts provided by Amtrol, a 40-gallon water heater with 140F temp. setting and up to 80 psi static pressure would be fine with a ST-5 model. If unsure, you can always select a larger model (ST-8 or even ST-12).
By PexUniverse Customer Service on 01/27/2020
