50 Gal, ProLine Improved-Recovery Atmospheric Vent Water Heater (NG), 10-Yr Wrty
Brand: AO Smith
Part#: XCR-50
This product has been discontinued. No direct replacement is available at this time.

Description

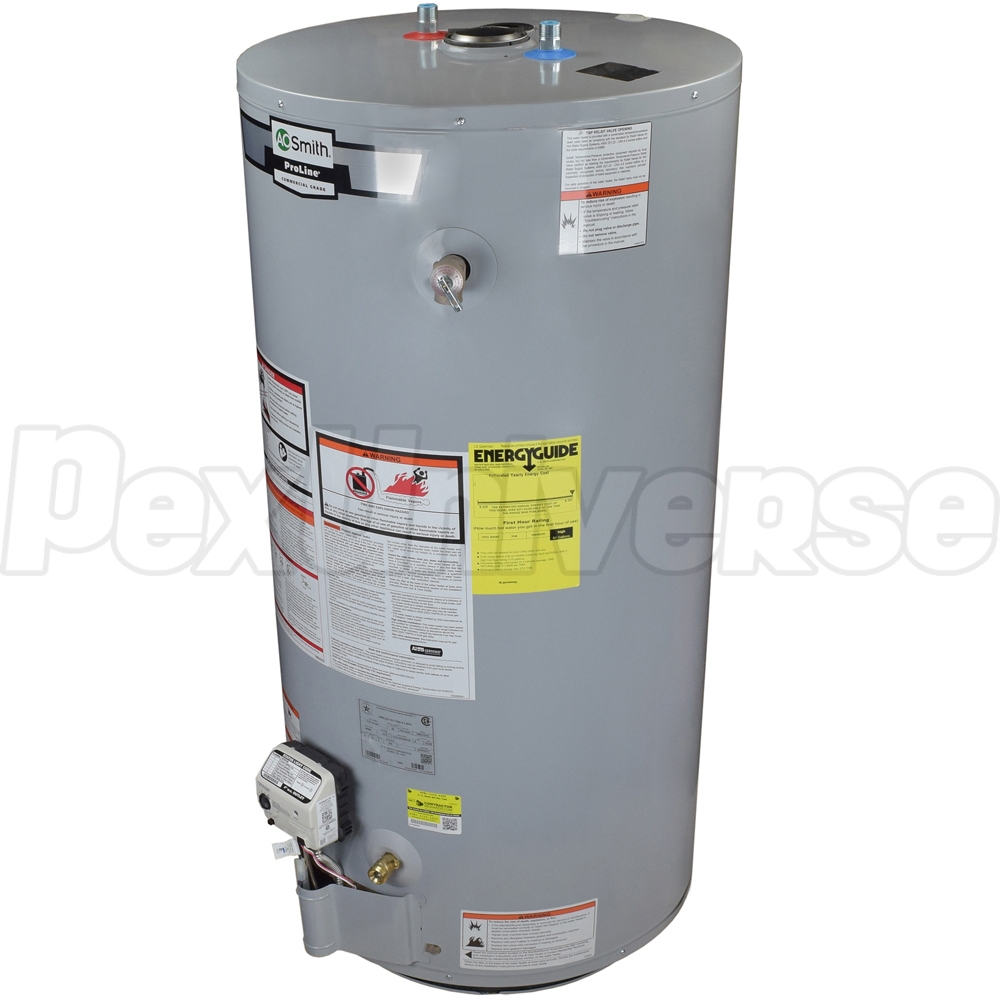

AO Smith ProLine XCR-50 model is a 50-gallon, natural gas (NG) atmoshperic vent residential water heater with 10-year warranty and improved recovery.

Features:
  • Blue Diamond glass coating prevents early corrosion of the tank, extending it's life
  • Dynaclean diffuser dip tube reduces sediment build-up and improves long-term efficiency
  • Coregard anode rod with stainless steel core
  • Heat trap nipple reduces stand-by energy loss
  • Push-button piezo ignitor.

Technical Specifications:
  • Fuel: Natural Gas (NG)
  • Nominal Capacity (Gallons): 50
  • Rated Storage Volume (Gallons): 48
  • Input (BTU): 40,000
  • Uniform Energy Factor: 0.62
  • 1st Hour Rating (Gallons): 84
  • Recovery @ 90°F Rise (GPH): 43
  • Anode: CoreGard Sacrificial
  • NOx Emissions: less than 40ng/J

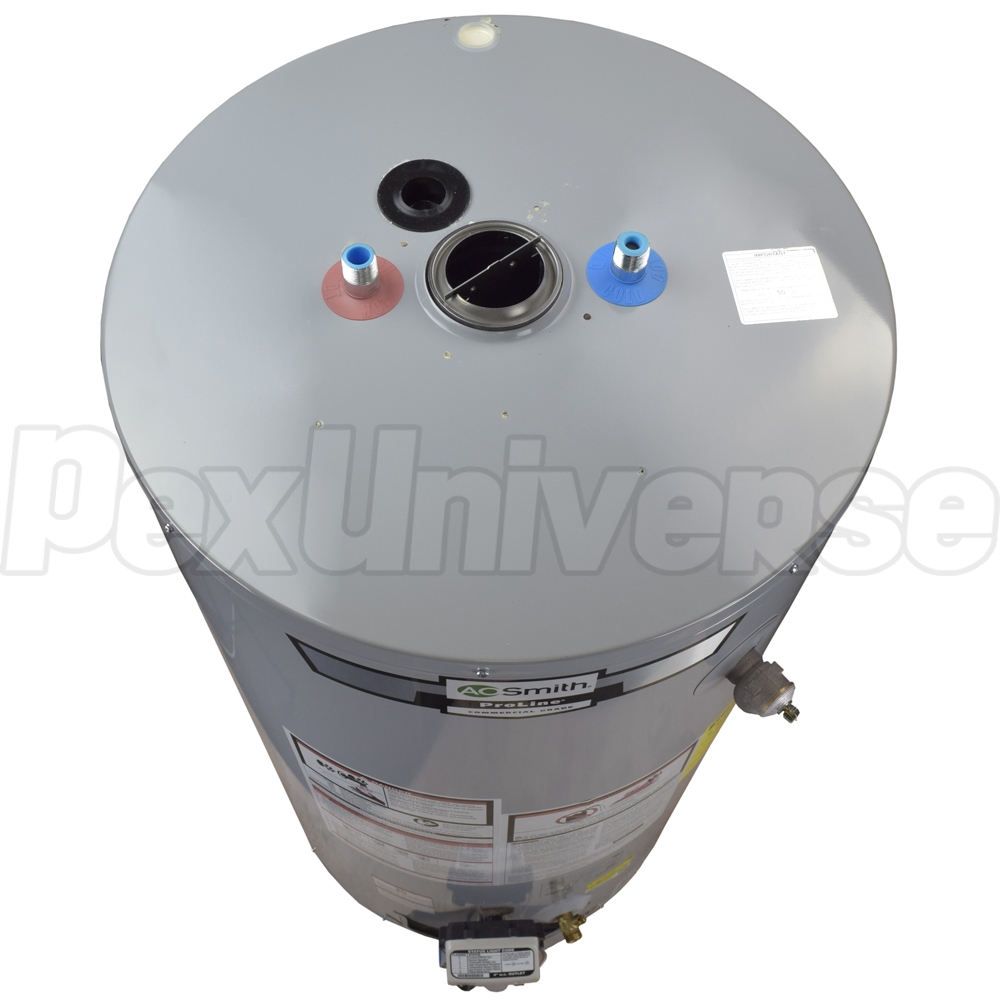

  • Water Connections: 3/4" NPT
  • Water Connections Location: Top
  • Gas Connection: 1/2" NPT
  • Max Working Pressure: 150 PSI
  • Ignition Type: Piezo push button ignitor
  • Vent Type: Atmospheric (Standard)
  • Venting Size: 3" or 4"
  • Vent Material: B-Vent
  • Elevation: 10,100 ft
  • Dimensions (Diameter x Height): 22" x 57-1/4" (60-3/4" w/ Draft Hood installed)
  • Weight (lbs): 165.

Warranty:
10-Year Limited Tank Warranty / 6-Year Limited Parts Warranty
