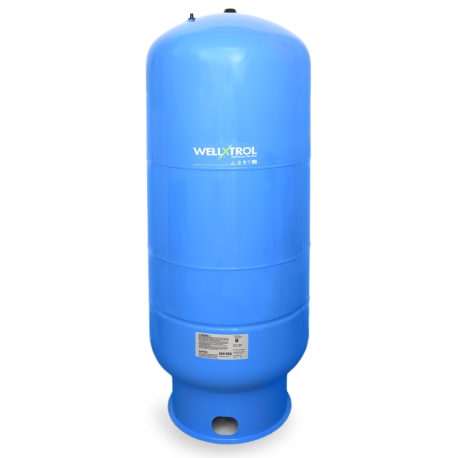

Well-X-Trol WX-350 Well Tank (119.0 Gal Volume)
Brand: Amtrol
Part#: 151S1
Model: WX-350
made in usa
In Stock
Ship Pickup
Estimate delivery
Usually ships: within 1 business day
Pick Up available
$1,625.95 / each
Free Shipping on any qty
Add to Cart

Description

Amtrol WX-350 (151S1) Well-X-Trol is an Well Water System Pressure Tank (Stand Model) with 119 gallons volume and 1-1/4" female threaded system connection. Precharge Pressure for the WX-350 Well Water System Pressure Tank is 38 PSIG and the Maximum Working Pressure is 150 PSIG.

Heavy duty butyl diaphragm of the Amtrol WX-350 well pressure tank is the thickest in the industry and features seamless construction for uniform strength and flexibility. It conforms exactly to the shell configuration without stretching, creasing, or forming bubbles or corners that could trap water or sediment. Butyl is the best known elastomer to prevent air loss.

Heavy duty butyl diaphragm is extremely resistant to bacterial growth and meets FDA requirements for potable water supply.

Polypropylene liner provides a 100% corrosion resistant, non-metallic rigid water reservoir that is listed by NSF International Standard 61.

Welded air valve is permanently attached rather than mechanically threaded to prevent loss of air pressure and to minimize stress on the well's pump system. It also carries a tamper-evident warning label.

Exclusive welding process eliminates interior rough spots and sharp edges that can damage the diaphragm and liner.

Deep-drawn steel domes offer twice the strength of rolled steel while minimizing weight of the Well Water Tank.


Features:
  • Attached welded air valve prevents loss of air pressure
  • The finest quality steel of the deep-drawn dome for extra strength and minimum weight
  • Unique positive hoop ring seal secures diaphragm and liner for added strength and reliability
  • Exclusive butyl diaphragm
  • 100% corrosion-proof virgin polypropylene liner
  • Stainless-steel system connection withstands aggressive water
  • Each finished tank is pressure tested for safety
  • Each finished tank is pre-pressurized to the most common pump cut-in pressure
  • Exterior appliance-like finish looks attractive while protecting the tank from the elements
  • All parts, including the polypropylene liner, butyl diaphragm, and stainless acceptance fittings are listed by NSF International Standard 64

Technical Specifications:
  • Factory pre-charged pressure: 38 PSI
  • System connection: 1-1/4" MNPT
  • Max. operating temperature: 200F
  • Max. working pressure: 125 PSIG
  • Tank volume: 119 gallons
  • Max. accepted factor: 0.39
  • Height: 62"
  • Diameter: 26"
  • Shipping weight: 148 lbs
  • Shell: High Strength Steel
  • Diaphragm: Heavy Duty Butyl
  • Liner: Virgin Polypropylene
  • Coating: Blue Enamel

Warranty:
7 years manufacturer's warranty.

Documents

Write a Review
Helpful? Yes 2 No
Perfect for my needs
The tank was a perfect fit and works well so far. I would like to thank PexUniverse for prompt shipment of my order, free 2 day shipping will use this company for all my needs they supply. I will order from them again and I recommend Amtrol products as the one I took out was an Amtrol dated 2002, although the blatter was water logged it still worked.
Volume: 34 Gallons
By Guest (from Wedowee, Alabama) on 10/14/2017
Helpful? Yes 1 No
Verified Purchase
pleased
Great price for high quality tank . Arrived sooner than expected and not damaged
Volume: 44 Gallons
By Daniel (from Gardiner, NY) on 02/01/2019
Helpful? Yes 1 No
Verified Purchase
Well-X-Trol WX-250 Well Tank (44.0 Gal Volume)
Shipped fast and well packaged. No dents or damage. Great product so far.
Volume: 44 Gallons
By Matthew (from Frederick, MD) on 10/23/2018
Helpful? Yes 1 No
Verified Purchase
Very nice tank
My 25 year old Craftsman tank became leaky, and I couldn't repair it, so I decided to get an Amtrol tank based on good reviews. The tank is working perfectly, and was a snap to install. I'm glad there is a stud on top of the tank so I could add the pump mounting bracket, as my jet pump was mounted atop the old tank.The price was good, and the shipping was pretty fast. The tank came in the mfgrs box, but it was obvious that it didn't have the original packing material. Instead, there were a bunch of flattened cardboard boxes, and the tank flange was bent, like the tank had been dropped while out of the box. I was able to repair the flange with a hammer, as I didn't want the hassle of returning the tank.The tank gets a rating of 5 stars, its a fine product. But PexUniverse gets a rating of 2.5 stars for the pre-shipping handling damage.
Volume: 44 Gallons
By cosmicvoid (from Seattle 'ish) on 07/16/2015
Helpful? Yes 1 No
Verified Purchase
wx-203 32 gal water tank
very happy with the price,item,and the fast service which i recieved
Volume: 32 Gallons
By jecarroll (from kamiah, idaho) on 04/20/2012
Helpful? Yes 1 No
QUALITY PRODUCT WITH SS PIPE CONN
OLD WELLXTROLL (1977) IN CRAWL SPACE. DEVELOPED ON BACKSIDE (WHEN I DONT KNOW). AFTER CHECKING OTHER TANKS AT LOCAL BUILDING SUPPLY STORES (PLASTIC PIPE CONN) SEARCH FOR WELLXTROLL ON LINE TOLD ME WHAT A QUALITY PRODUCT THIS WAS. PRICE WAS INLINE WITH INFERIOR TANKS. SHIPPED QUICK AND REASONABLE SHIPPING COST. HAVE INSTALLED AND AM VERY PLEASED. 7 YEAR WARRANTY CANT BE BEAT
Volume: 20 Gallons
By PAPA G. (from RUSTBURG VA) on 01/30/2012
Helpful? Yes No
Verified Purchase
Excellent product
Top-notch product and top-notch seller
Volume: 44 Gallons
By Christopher (from Holyoke, MA) on 09/24/2024
Helpful? Yes No
Verified Purchase
Quality Product Blemished by Others
No shipping damage was evident viewing the carton containing the product. However the merchandise had suffered minor rough handling damage and obviously had been repackaged using used cardboard from other products. Likely a return from a previous customer? Anyway repair of the tank stand flange was easily accomplished and I added a coat of Flex Seal to the top and bottom of the flange incase the factory coating had been compromised. There was also was a quarter inch deep golf ball size dent in located at the upper shoulder of the tank. This is the air section of the tank and I've determined it will have no effect on the intended tank performance, If Pex Universe was aware of the blemish's and shipped it anyway they performed a need service for me. I needed the the pressure tank and they got the job done at a reasonable price. Thanks,
Volume: 44 Gallons
By Doug (from Skandia, MI) on 09/16/2024
Helpful? Yes No
Verified Purchase
A PLEASURE TO DEAL WITH!
INDUSTRY LEADING PRODUCT FROM EVERYTHING I HAVE READ, AND I RESEARCHED FOR HOURS BEFORE PULLING THE TRIGGER ON THIS WELL X TROL WELL TANK. YOU CAN BUY CHEAPER BRANDS $200.00 TO $300.00 DOLLARS, YOU WILL NOT GET THE LONGEVITY OUT OF THE CHEAPER ONES! WITH PROPER CARE YOU COULD SEE 20 YEARS OUT OF THE WELL X, WHICH IS ALSO A GOOD SELLING POINT IF YOU ARE SELLING A PROPERTY! PEX UNIVERSE WAS THE LEAST EXPENSIVE I COULD FIND, THEY INCLUDED SHIPPING IN THEIR PRICE AND i RECEIVED IT HERE IN TEXAS FROM BROOKLYN NY IN THREE BUSINESS DAYS! I AM VERY PLEASED WITH THE WHOLE EXPERIENCE!!
Volume: 32 Gallons
By DAVID (from Gun barrel city, TX) on 09/02/2024
Helpful? Yes No
Verified Purchase
Replaced 30 year old tanks
I live on a ranch and the nearest contractors are 60 miles away. I needed to replace my 30 year old Sta-Rite tanks with an equivalent size tank that would last another 30 years. I could not purchase locally without a business account. Found this site and order the best tank. Price was right. Shipping from NYC to Arizona was 5 days Fedex freight and free. I installed the tanks and everything is working great. Excellent Supply house for DIY projects. (the big box store's reviews were horrible on their tanks. Worth the 5 day shipping time to buy the best)
Volume: 34 Gallons
By JOHN (from Gilbert, AZ) on 04/09/2024
Helpful? Yes No
Verified Purchase
Well WX 203
The experience was quite good, product arrived on time and PexUniverse offered the best pricing.
Volume: 32 Gallons
By ken (from Elgin, IL) on 08/18/2022
Helpful? Yes No
Verified Purchase
Good Price on a Good product
This order was filled within a couple of hours of our calling. Couldn't ask for faster service from PexUniverse. Fedex, on the other hand did not deliver on day 2 or 3 as expected. We were at the "end of their route" and driver went back to office two hours before "end of day" delivery time. After we contacted them they again did not deliver the next morning as promised. When we made contact again and insisted, they likely would not have delivered day 4 since again we were at the end of their route. Nine family members coming to stay with us from out of town and no water for 4 days!
Volume: 32 Gallons
By Ken (from Schuyler, VA) on 07/17/2022
Helpful? Yes No
Verified Purchase
Perfect
Shipped to my door, reasonable price, and exactly what I needed
Volume: 32 Gallons
By Steve (from Lake orion, MI) on 06/18/2022
Helpful? Yes No
Verified Purchase
Best one for the money
My first Well-X-Trol WX-203 lasted 26 years and was used to provide water for 2 houses year-a-round. So stay with something that works. Was the best price I could find even beating local plumbing supply houses in our area.
Volume: 32 Gallons
By Douglas (from Sugar hill, NH) on 03/09/2022
Helpful? Yes No
Verified Purchase
Excellent Service
Service was excellent! The packaging was fantastic, it was repacked with extra cardboard, it arrived completely in tack. No dents or dings. Highly recommend!!
Volume:
By Dale (from Bath, PA) on 11/12/2020
Helpful? Yes No
Verified Purchase
Rjc
Thru research found that the product is well built ,looks good and is made in the USA. Replacing a smaller tank from the same mfg. Co. After 25years
Volume: 34 Gallons
By rick (from East hampton, CT) on 03/25/2019
Helpful? Yes No
Verified Purchase
1st bank excellent 2nd tank good
I ordered 2 of these tanks 2 days apart the 1st one came in 2 days excellent condition. The 2nd 1 came in 2 days but had damage to the tank. Dents and scrapes. It was not due to shipping because the box was fine. This tank was damaged before it was shipped. All said and done both tanks worked.
Volume: 32 Gallons
By ken (from Lititz, PA) on 02/18/2019
Helpful? Yes No
Verified Purchase
Well-x-Trol -203
Shipping was fast, but the tank I received had a small dent with scratches in it
Volume: 32 Gallons
By James (from Freedom, PA) on 11/07/2018
Helpful? Yes No
Verified Purchase
Me
Nice tank
Volume: 44 Gallons
By Dianne (from Jacksonville, FL) on 10/10/2018
Helpful? Yes No
Verified Purchase
Excellent
Good price, quick shipment
Volume: 44 Gallons
By Paul (from Bolton, CT) on 08/23/2018
Helpful? Yes No
Verified Purchase
works just fine
We lost our previous tank, so this was a replacement and it fit and functions perfectly
Volume: 44 Gallons
By jon dunham (from Montana) on 04/16/2015
Helpful? Yes No
Well-X-Trol WX-202 Well Water Tank
I had one of this same model tank in my basement for 33 years and never touched it. I couldn't find a new one locally so I ordered from PexUniverse from which I bought a Little Giant 1/2 HP shallow well pump. I needed to buy a pump to replace a 33 year old Sears model which had a pump housing crack. While I had everything apart to redo the copper, I thought I would replace the tank, "just because". The old WX-202 was still working and with NO! leaks but the bottom of the base, at the floor, was starting to rust although the metal still had its integrity. I only wanted to do this job once so for the reasonable cost I bought a new tank and installed it with the pump. Have no idea what the service life will be on the new one but I can't say enough good things about this product.
Volume: 20 Gallons
By FJT (from Vernon, CT) on 01/28/2013

FAQs

Ask a Question
drained the water from my tank to move it to a new well. does the tank keep it air pressure?
Helpful? Yes 1 No
Yes, the tank will retain it's pressure even if drained. You can check the pressure with a regular tire pressure gauge if needed.
By PexUniverse Customer Service on 04/01/2013
